Product Description

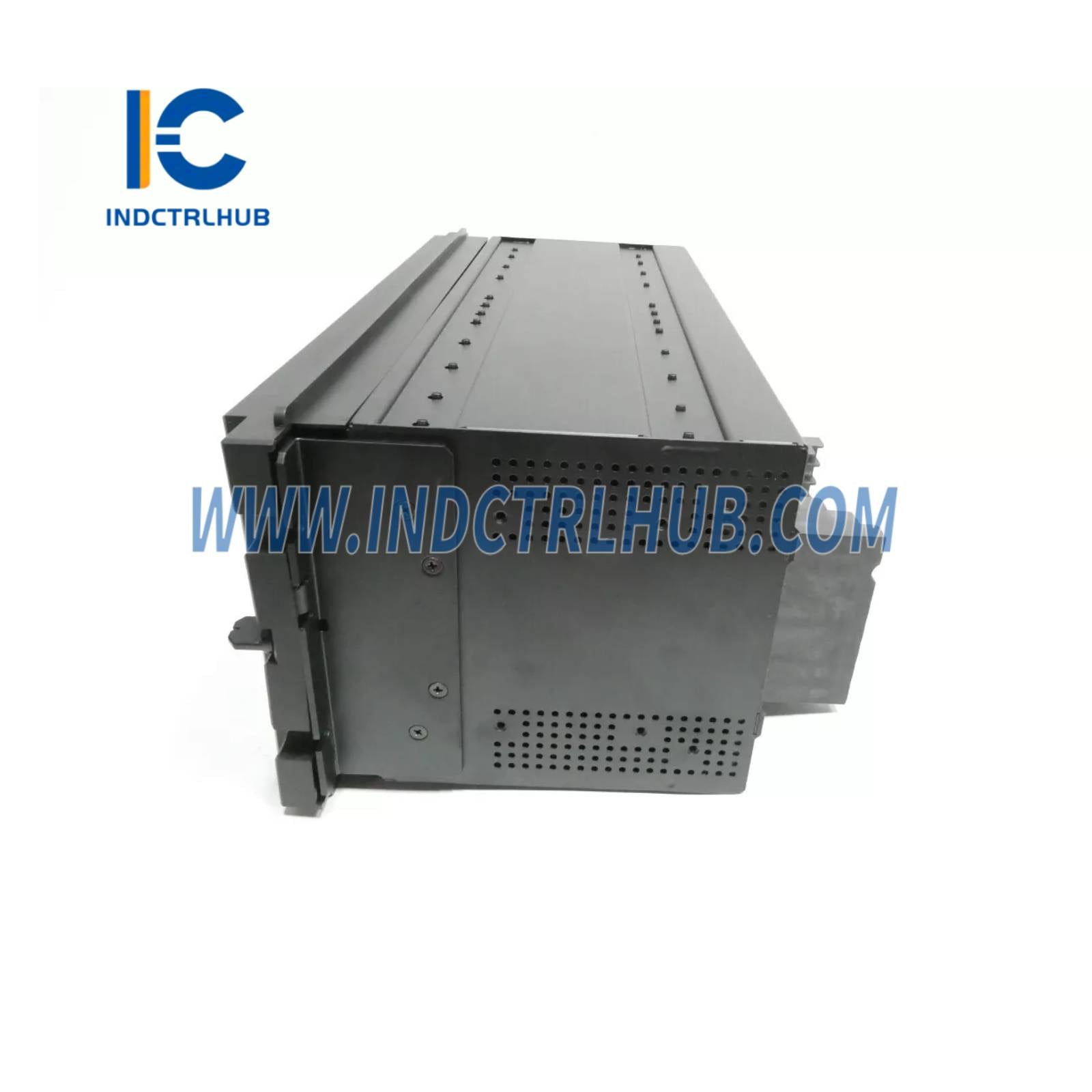

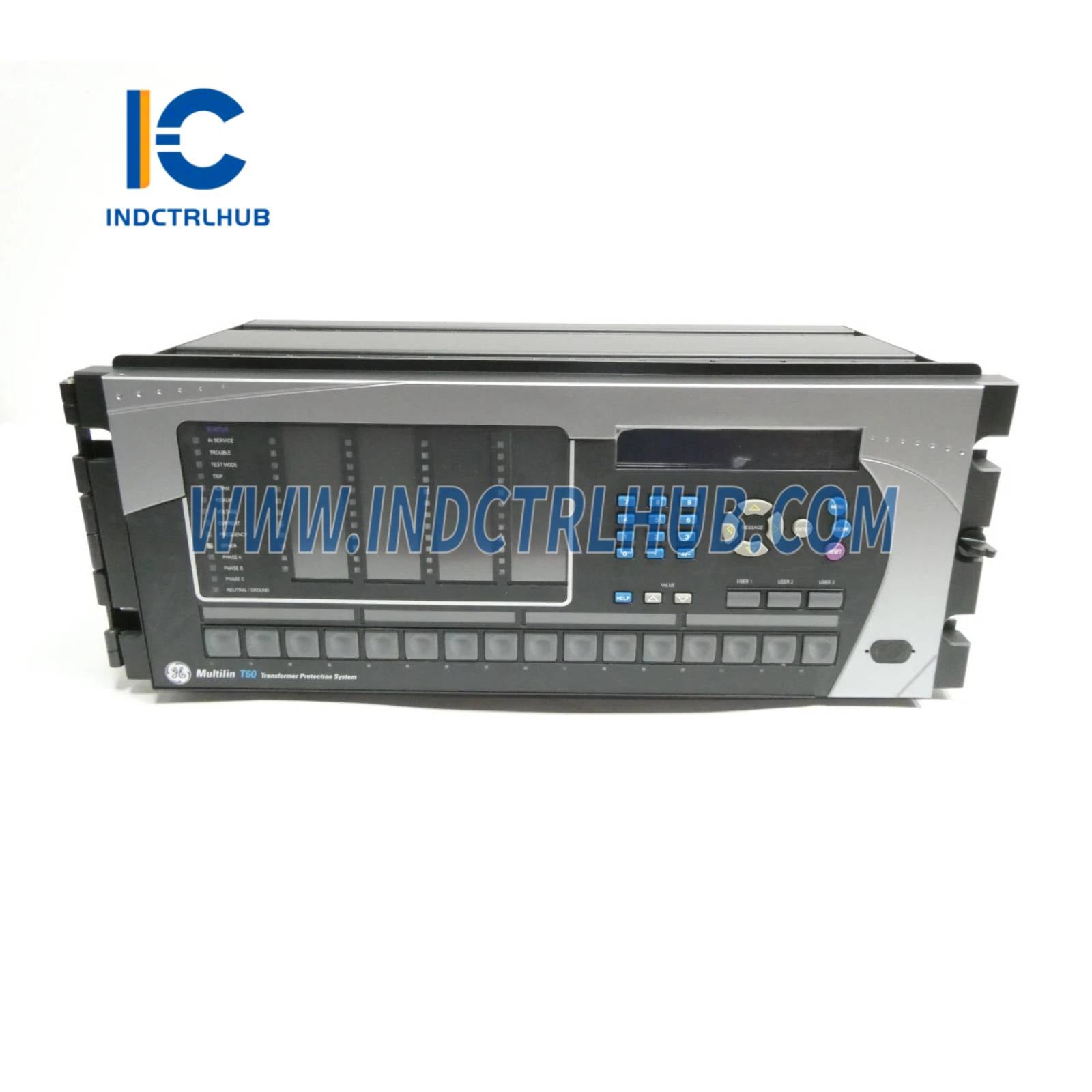

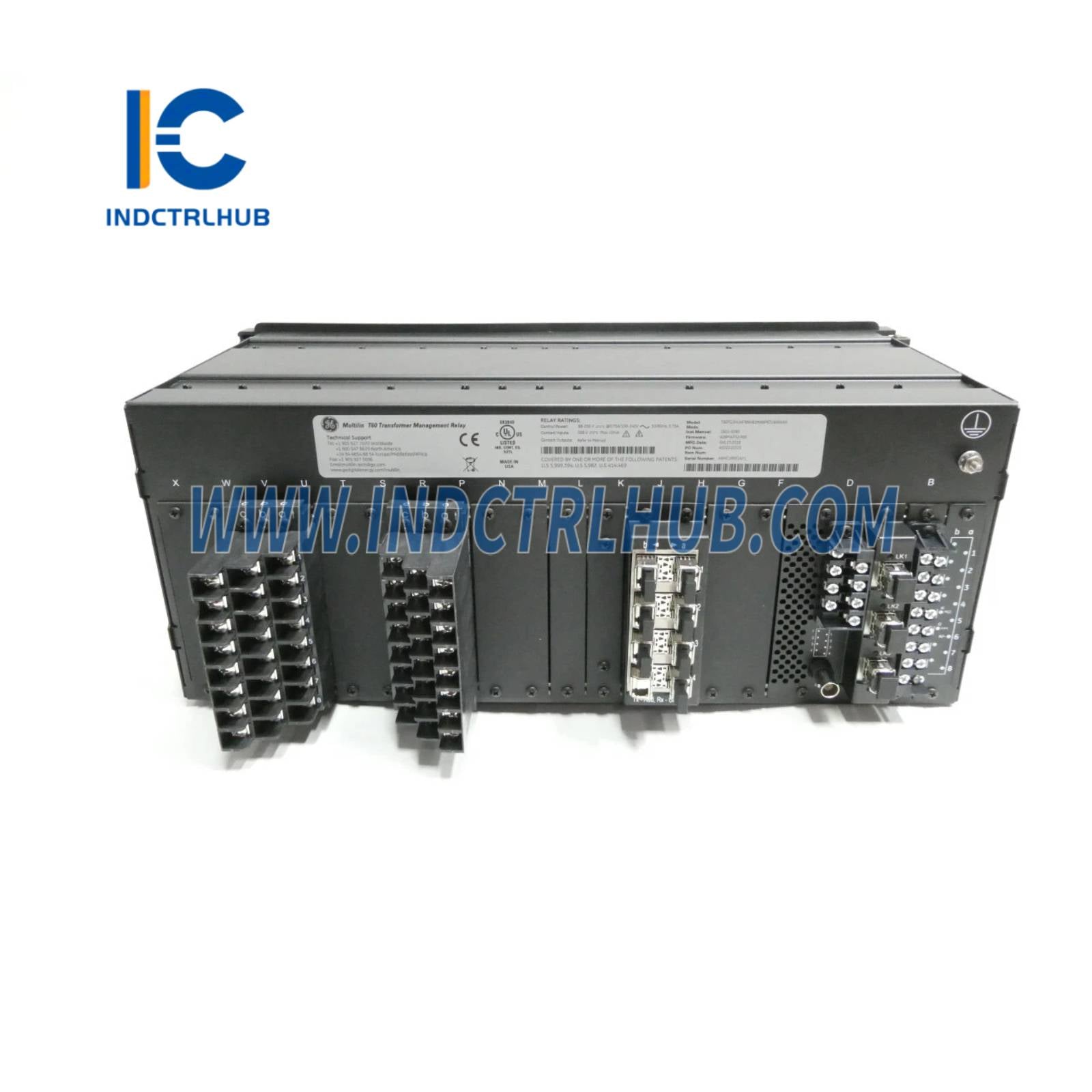

General Electric T60G01HCHF8HH67M8FP6DU6DW6C Multilin Transformer Protection Relay
Product Overview
- Description: The General Electric T60G01HCHF8HH67M8FP6DU6DW6C is a Multilin T60 transformer protection relay designed for advanced protection, control, and monitoring of power transformers in utility and industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Multilin T60 |
| Model/Part Number | T60G01HCHF8HH67M8FP6DU6DW6C |
| Model Type | Transformer Protection Relay |
| Function | Protection, control, and monitoring of power transformers |
| Display | Graphical LCD (HCH: Enhanced front panel with large display) |
| Inputs | 8 CT inputs (F8H: 8 CTs, high sensitivity), 4 VT inputs, multiple digital inputs (configurable) |
| Outputs | 6 Form-A relay outputs (H67: 6 outputs), 2 analog outputs (configurable) |
| Communication Interfaces | Ethernet, Modbus TCP/IP, DNP 3.0, IEC 61850 (M8F: Enhanced communications), RS485 |
| Signal Conditioning | Internal analog-to-digital conversion, differential protection algorithms |
| Accuracy | ±0.5% for current/voltage measurements (typical) |
| Protection Features | Transformer differential (87T), restricted earth fault (REF), phase/ground overcurrent (50/51, 50N/51N), over/under voltage (59/27), over/under frequency (81O/U), thermal overload (49), breaker failure, RTD temperature monitoring (P6D: 6 RTD inputs) |
| Redundancy | Not applicable (single device, supports redundant power supply) |
| Diagnostics | Event recording (up to 1024 events), waveform capture, fault diagnostics, self-test |
| Compatibility | Integrates with SCADA systems, Multilin EnerVista software |
| Power Supply | 125–250 VDC or 100–240 VAC (G01: High voltage power supply) |
| Power Consumption | 15 W typical, 25 W max |
| Environmental Specifications | Operating Temperature: -40°C to +60°C Storage Temperature: -40°C to +80°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP40 (front), IP20 (rear, mounted in panel) |
| Dimensions | Approx. 178 mm (H) x 146 mm (W) x 203 mm (D) |
| Weight | 4.5 kg (approx.) |
| Mounting | Panel mount, 19-inch rack compatible |
| Certifications | CE, UL, cULus, IEC 60255, RoHS |
