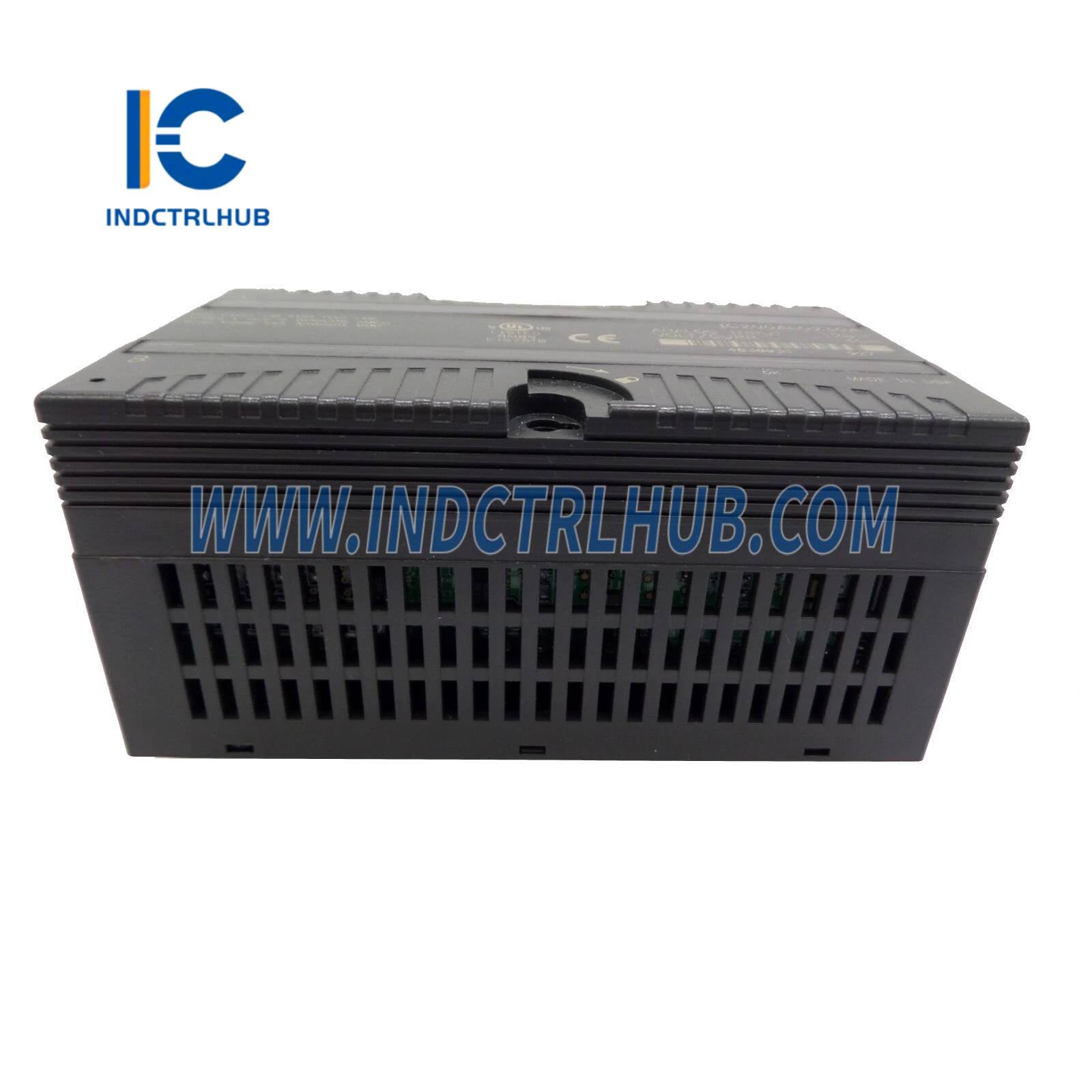

GE IC200ALG240CADB VersaMax Analog Input Module
GE IC200ALG240CADB VersaMax Analog Input Module
Manufacturer: General Electric
Product No.: IC200ALG240CADB
Condition:Omborda 1000 ta mavjud
Product Type: VersaMax Analog Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Qo'llab-quvvatlash
- 30-Kunlik Qaytarishlar
- Tez yetkazib berish
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG240CADB |
| Description | VersaMax Analog Input Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG240CADB |
| Product Name | IC200ALG240 VersaMax Analog Input Module |
| Application | High-accuracy analog signal acquisition in industrial automation and process control systems |
| Compatibility | Integrates with GE VersaMax I/O systems, mounts on IC200ACCxxx carriers, supports CPU/NIU backplane communication |
| Function | Processes up to 8 isolated analog inputs in voltage or current mode, provides 16-bit resolution data to PLC |
Functional Specifications
| Parameter | Details |
|---|---|
| Input Channels | 8 differential, channel-to-channel isolated |
| Input Types | Voltage: ±10 V DC; Current: 4-20 mA or 0-20 mA (jumper selectable per channel) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale at 25°C |
| Update Rate | 13 ms for all channels |
| Input Impedance | 200 kΩ (voltage mode), 250 Ω (current mode) |
| Isolation | 1500 V AC (field to logic and frame ground) |
| Common Mode Voltage | ±50 V peak |
| Common Mode Rejection | 120 dB minimum at 50/60 Hz |
| Normal Mode Rejection | 90 dB minimum at 50/60 Hz |
| External Power Supply | 19.2_28.8 V DC, 100 mA minimum (for current mode isolated inputs) |
| Power Consumption | 15 mA at 5 V DC, 120 mA at 3.3 V DC (backplane) |
| Operating Temperature Range | 0 to 60°C |
| Dimensions | 110 mm x 66 mm x 45 mm (W x H x D) approximate |
| Weight | 0.2 kg |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
