Product Description

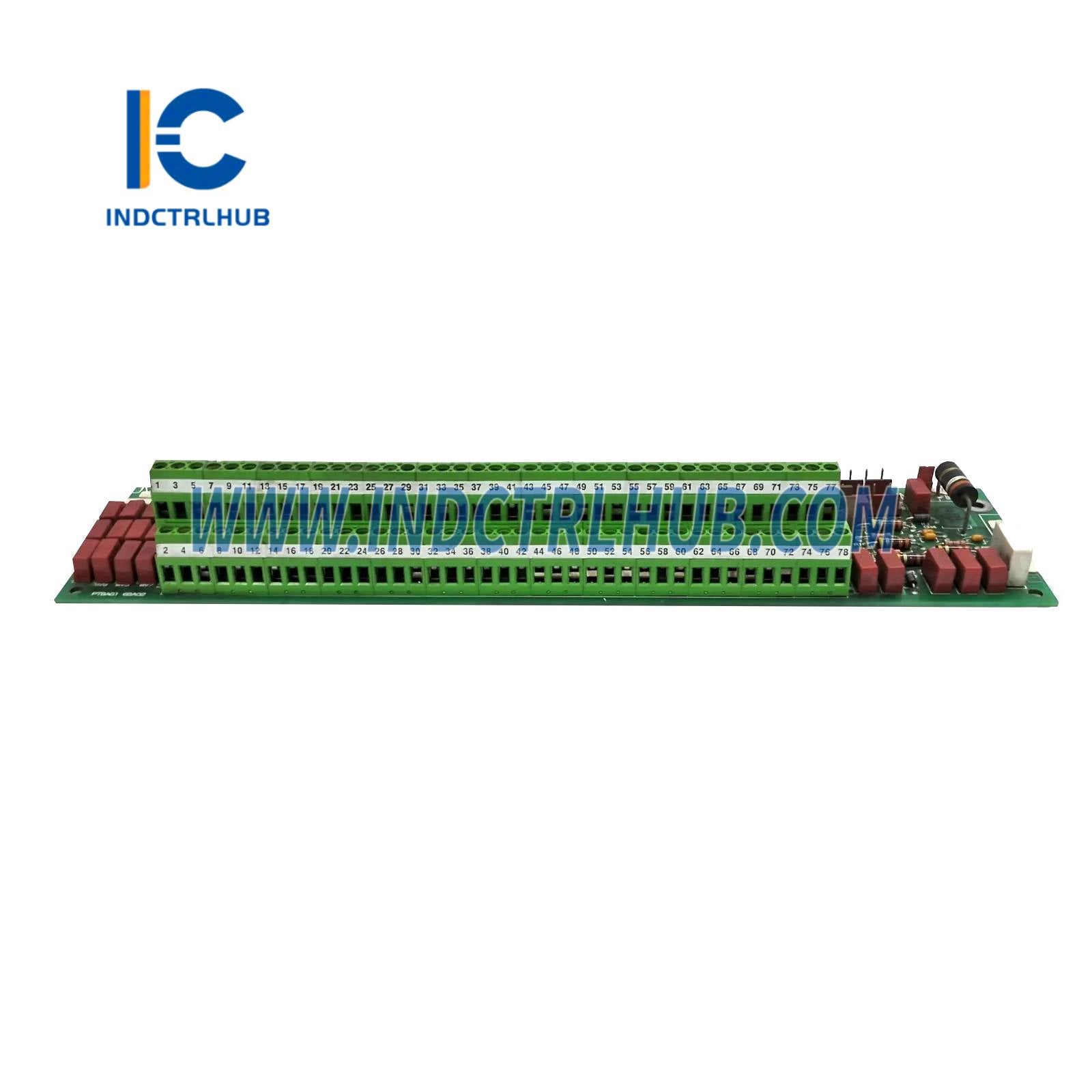

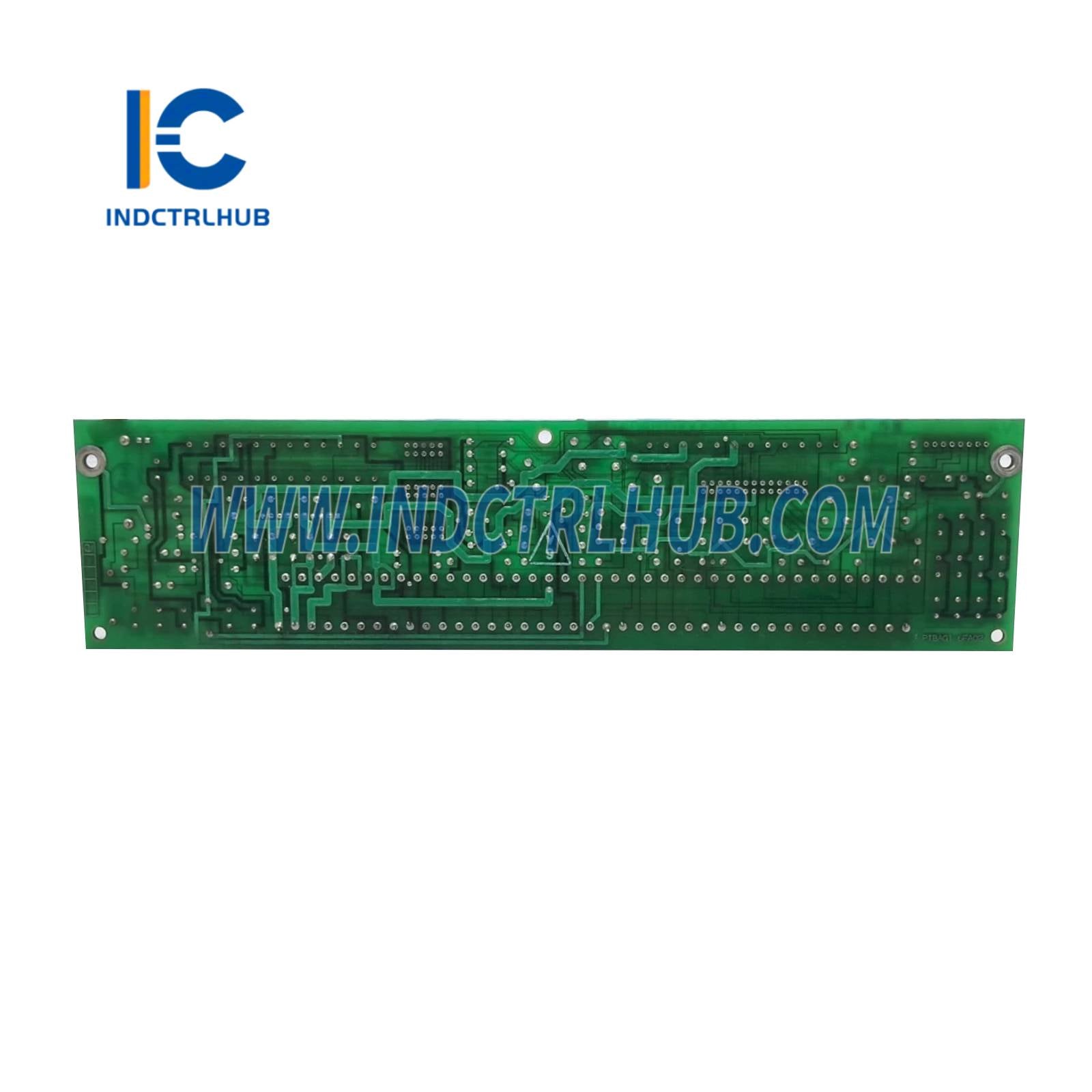

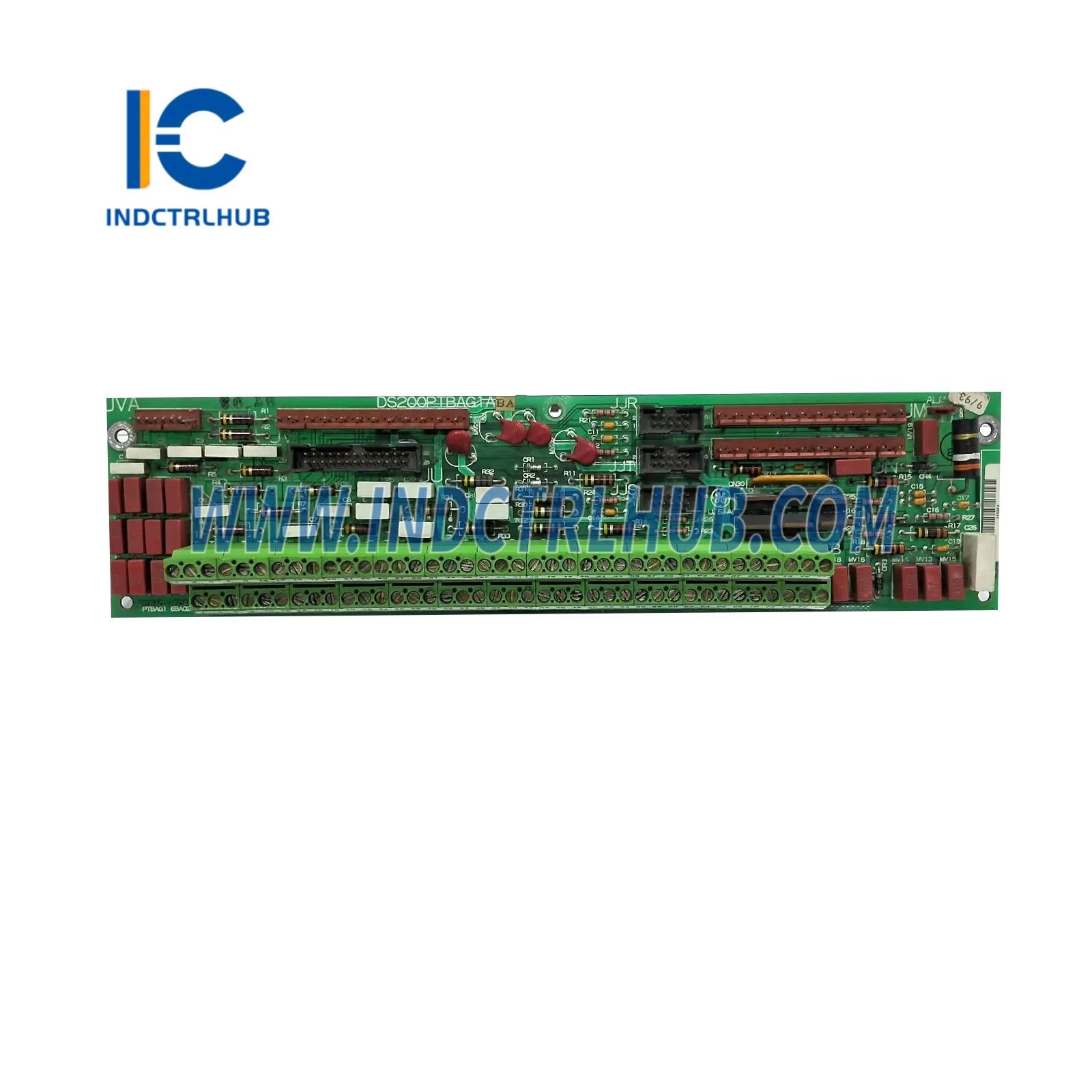

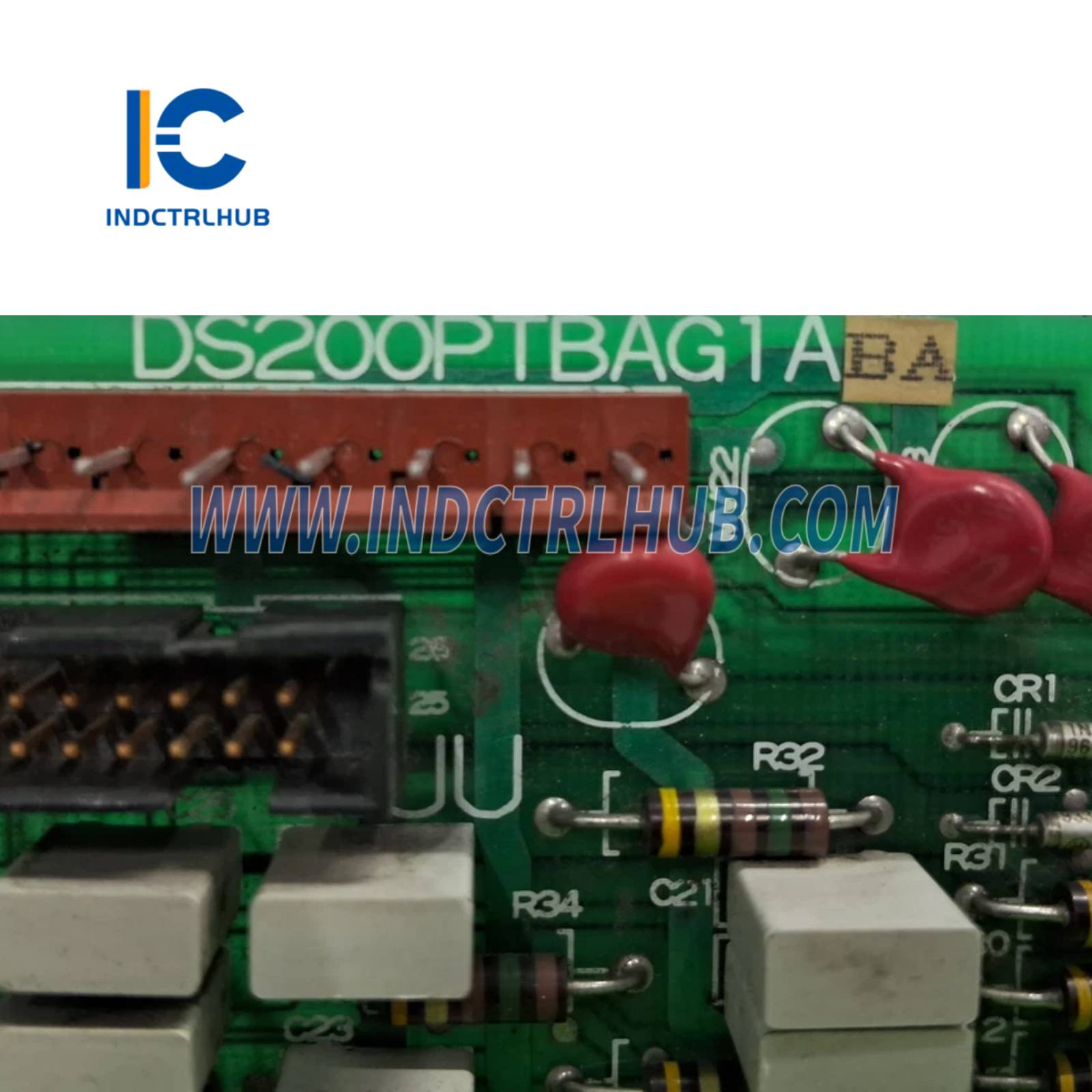

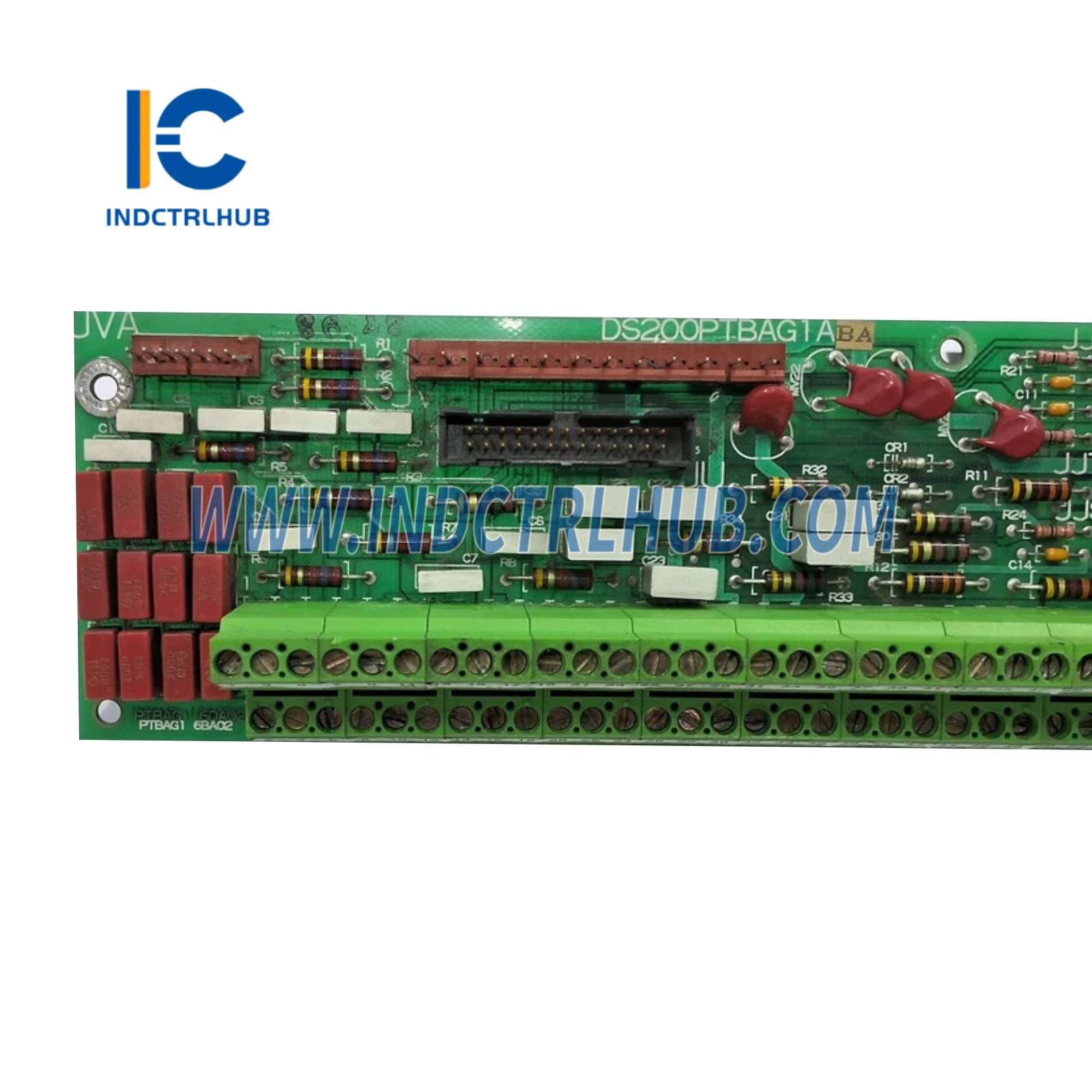

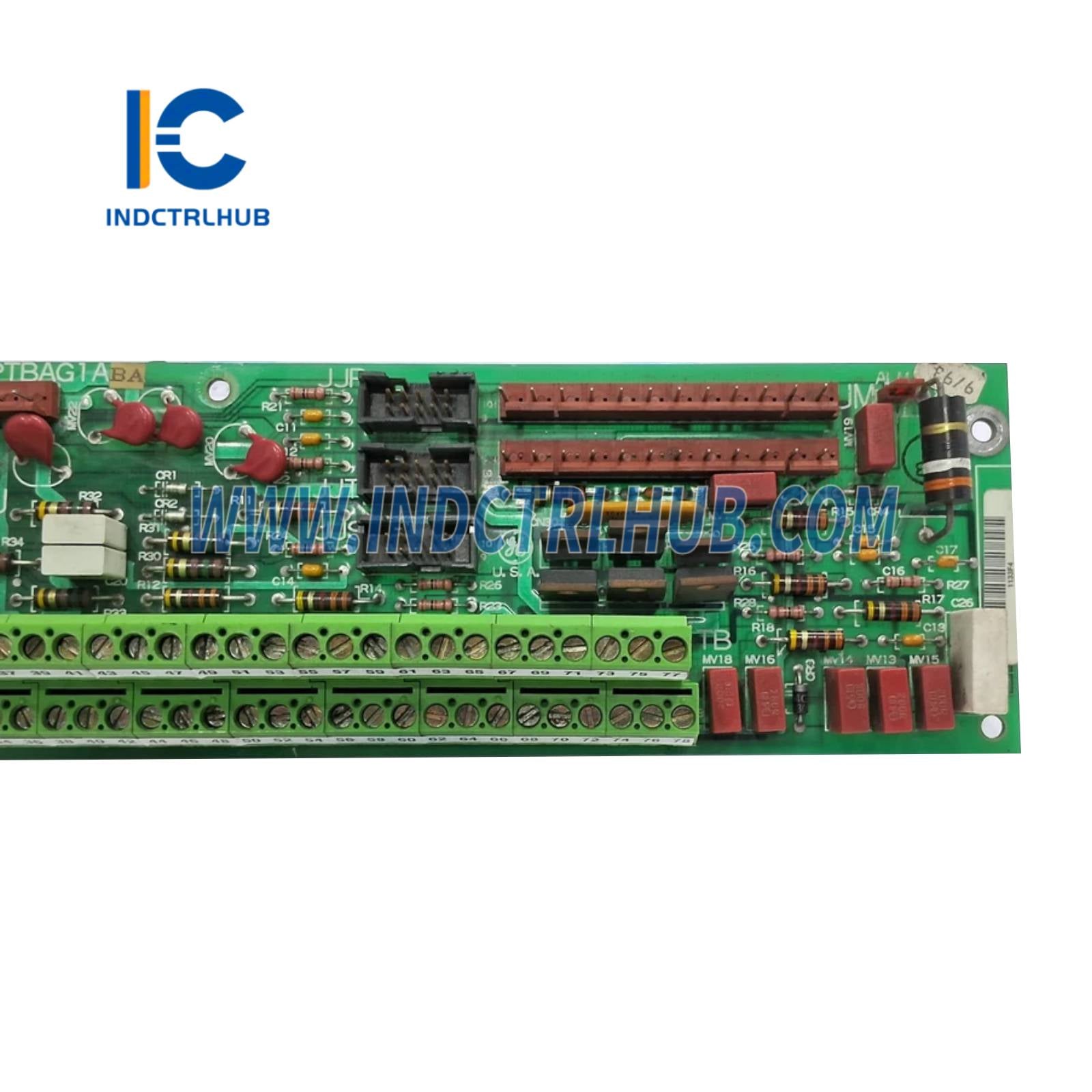

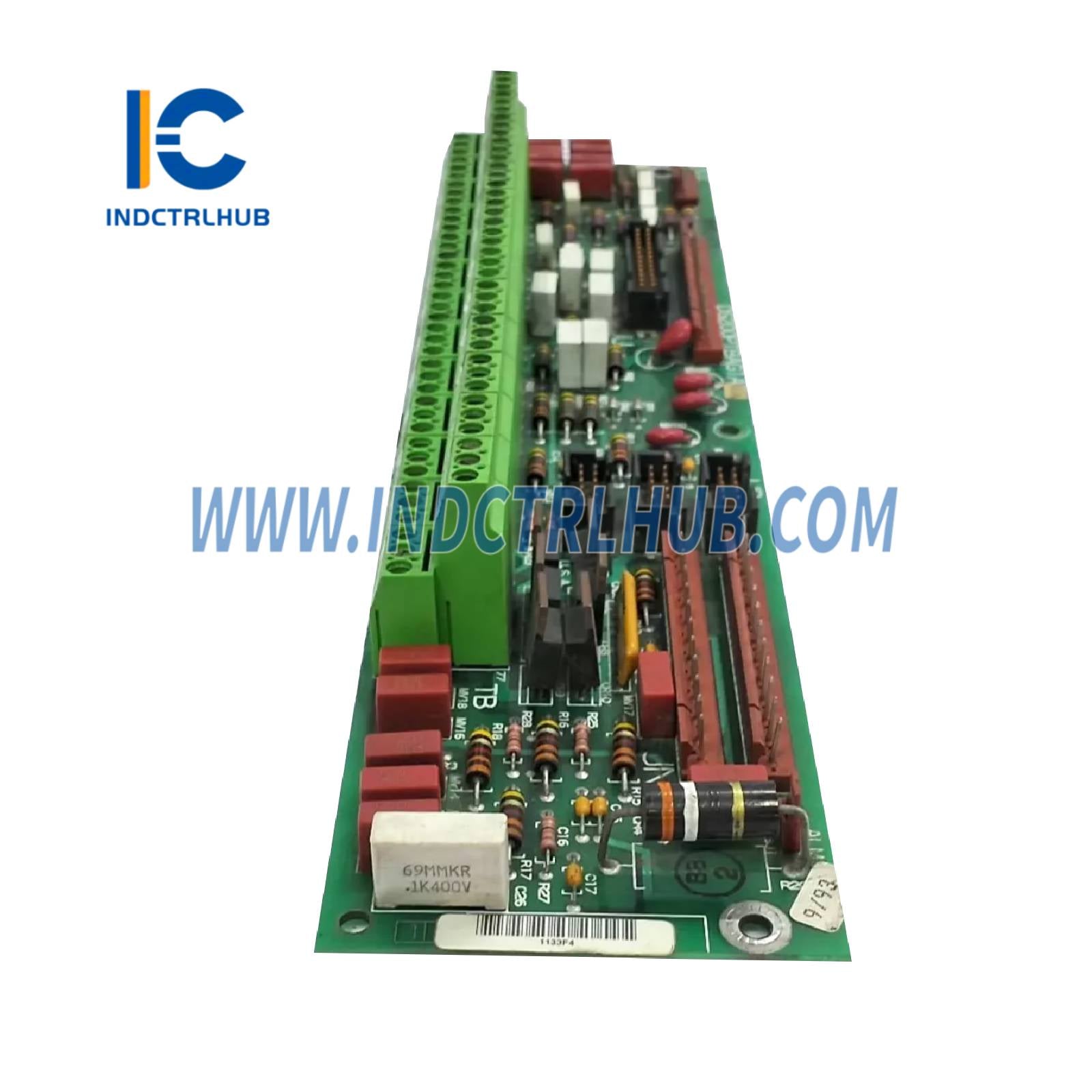

General Electric DS200PTBAG1ABA Protection Termination Board
Product Overview
- Description: The General Electric DS200PTBAG1ABA is a protection termination board used in GE’s Mark V turbine control systems. It serves as an interface for connecting protection-related signals, such as current transformer (CT) and potential transformer (PT) inputs
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark V |
| Model/Part Number | DS200PTBAG1ABA |
| Model Type | Protection Termination Board |
| Function | Interfaces CT and PT signals for turbine protection |
| Display | LED indicators (status) |
| Inputs | Multiple CT and PT inputs, digital signals |
| Outputs | Conditioned signals to Mark V control modules |
| Communication Interfaces | Proprietary Mark V system interface |
| Signal Conditioning | Internal signal isolation and conditioning |
| Accuracy | ±1% for CT/PT signal processing |
| Redundancy | Non-redundant |
| Diagnostics | LED status indicators, system-level fault reporting |
| Compatibility | GE Mark V turbine control systems |
| Power Supply | 125 VDC or 24 VDC (from Mark V system) |
| Power Consumption | 5 W max |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | 280 mm (H) x 200 mm (W) x 50 mm (D) |
| Weight | 1.2 kg |
| Mounting | Plugs into Mark V control cabinet slot |
| Certifications | CE, UL, RoHS |
