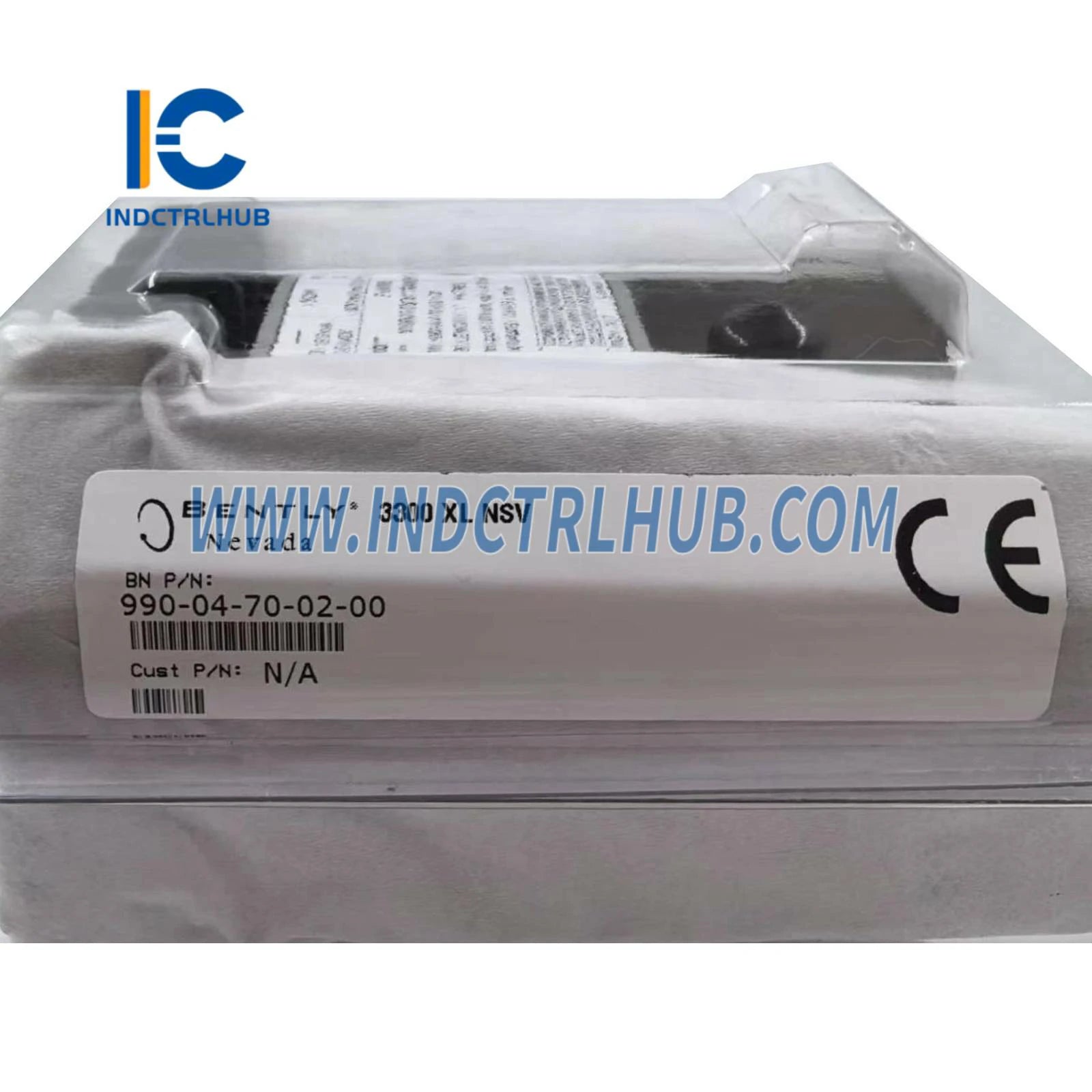

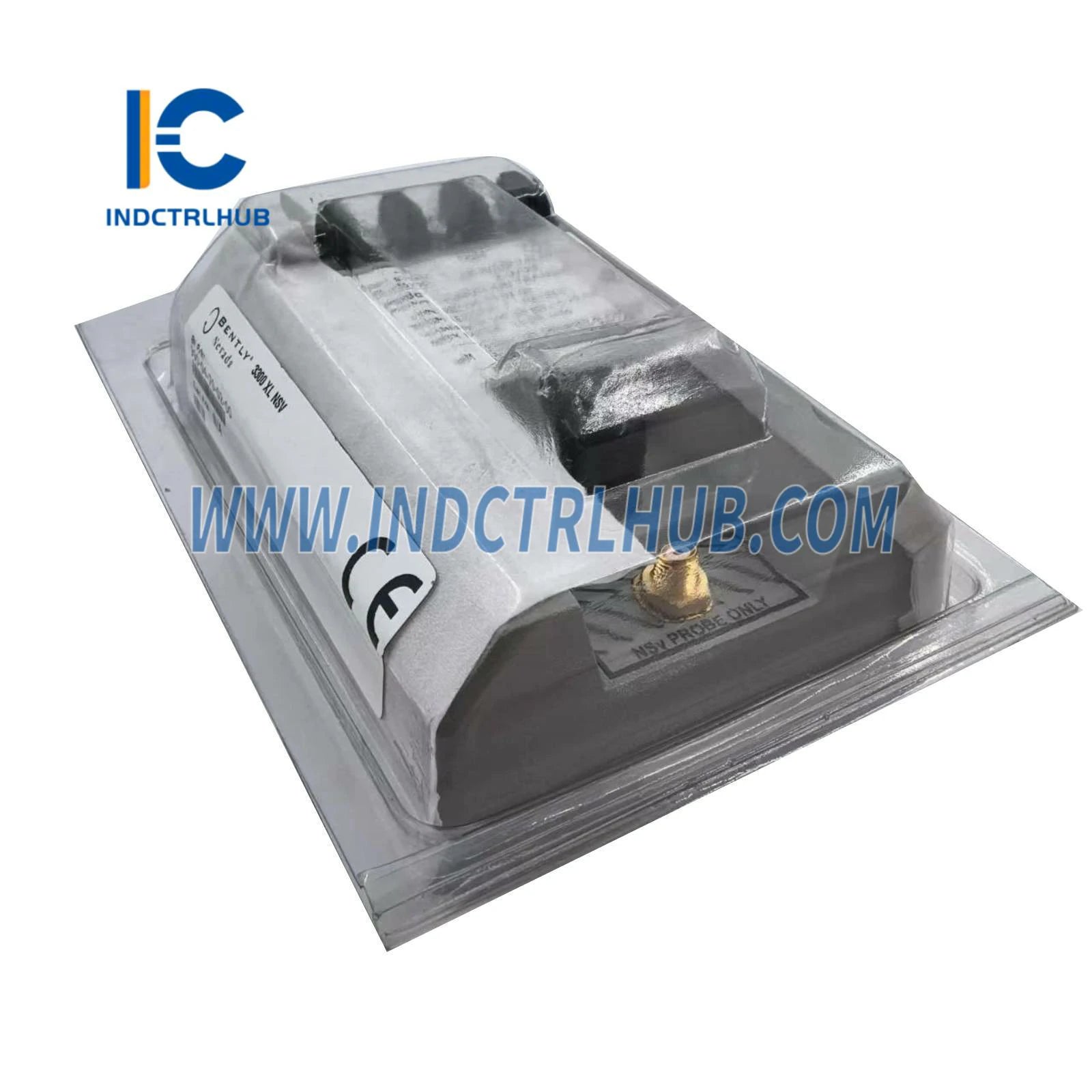

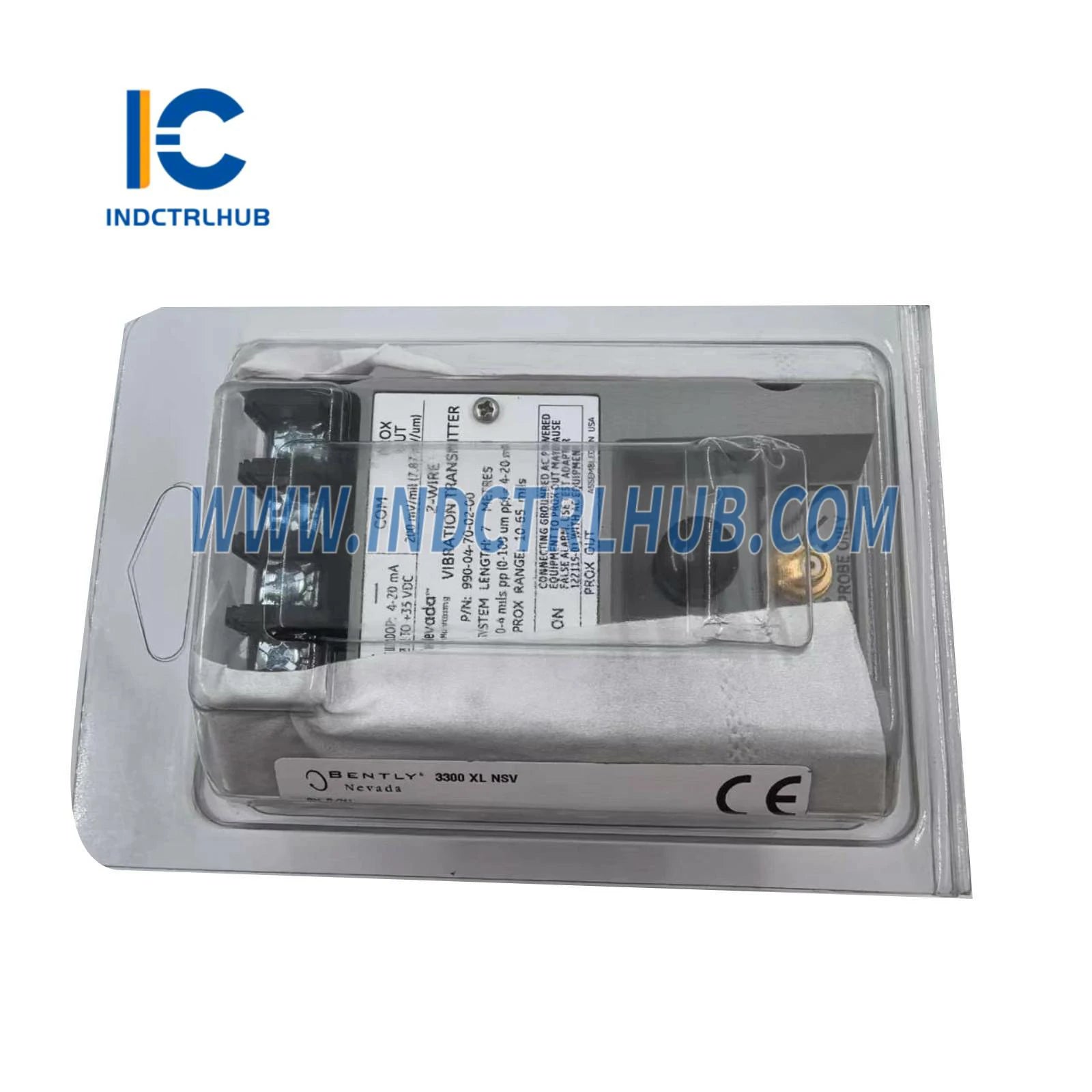

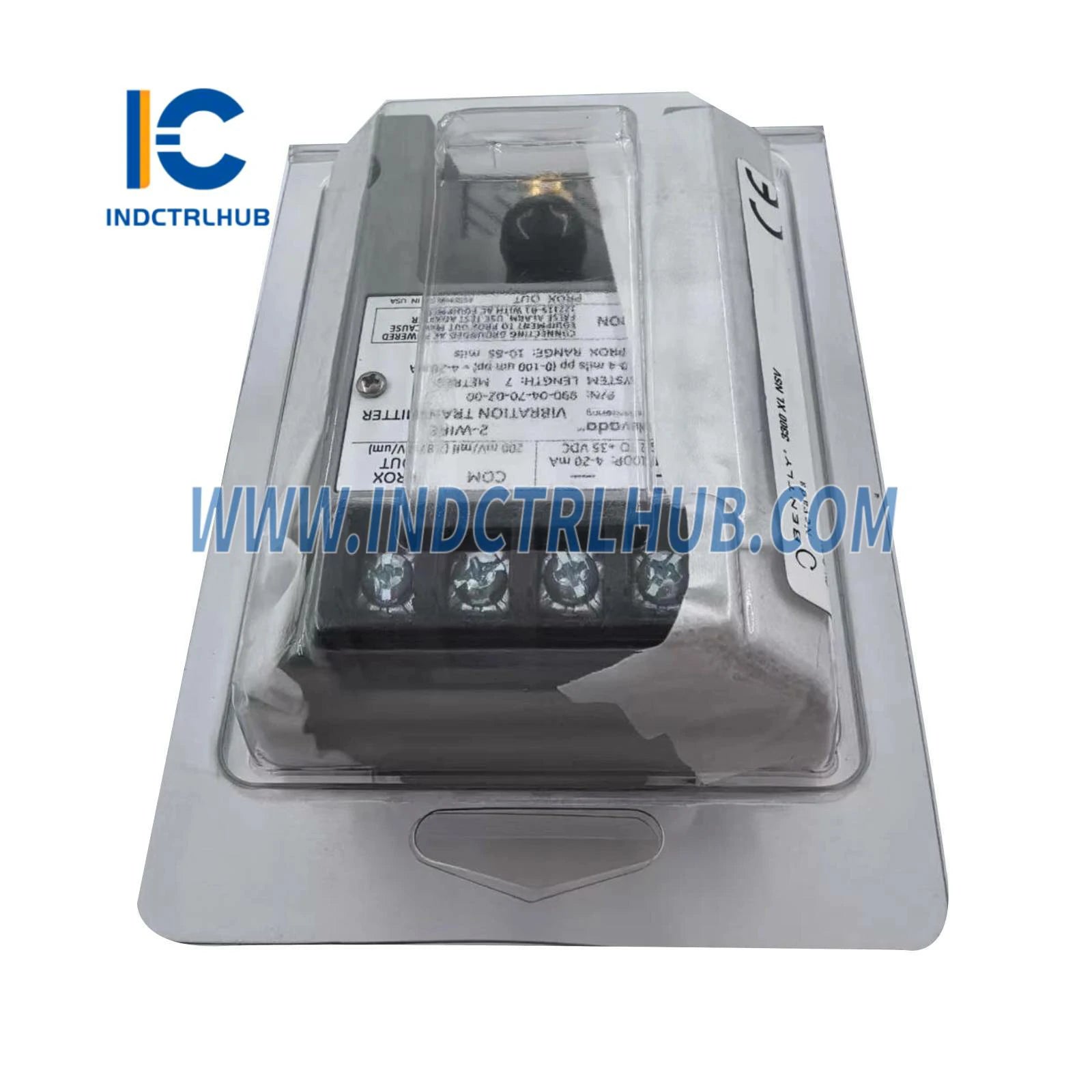

Bently Nevada 990-04-70-02-00 990 Vibration Transmitter

Bently Nevada 990-04-70-02-00 990 Vibration Transmitter

  • Manufacturer: Bently Nevada

  • Product No.: 990-04-70-02-00

  • Condition:Omborda 1000 ta mavjud

  • Product Type: 990 Vibration Transmitter

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Qo'llab-quvvatlash
  • 30-Kunlik Qaytarishlar
  • Tez yetkazib berish

Bently Nevada 990-04-70-02-00 Parameters

Product Overview

Parameter Details
Manufacturer Bently Nevada
Series 990
Model/Part Number 990-04-70-02-00
Model Type Vibration Transmitter
Product Name 990 Vibration Transmitter
Application Intended for original equipment manufacturers (OEMs) of centrifugal air compressors, small pumps, motors, or fans; provides a simple 4-20 mA proportional vibration signal as input to machinery control systems
Compatibility Compatible with Bently Nevada 3300 XL 8 mm Proximity Transducer System; accepts inputs from one proximity probe and extension cable
Function Loop-powered transmitter that measures and outputs vibration levels as a 4-20 mA signal proportional to peak vibration; includes fault detection for open/short circuit

Functional Specifications

Parameter Details
Full-Scale Option (A) 04: 0-4 mils pp (0-100 μm pp)
System Length Option (B) 70: 7.0 meters (23.0 feet)
Mounting Option (C) 02: Bulkhead screws
Agency Approval Option (D) 00: Not required
Output Signal 4-20 mA loop-powered, proportional to peak vibration; fault indication at < 2 mA or > 22 mA
Power Supply +12 to +35 Vdc input
Input Accepts one non-contacting 3300 XL 8 mm Proximity Probe and extension cable
Measurement Range 0-4 mils pp (0-100 μm pp)
Frequency Response 0 to 10,000 Hz (0 to 600,000 cpm)
Accuracy ±2% of full scale
Operating Temperature -30°C to +65°C (-22°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity Up to 95%, non-condensing
Dimensions Approximately 16 cm x 16 cm x 12 cm
Weight 0.8 kg
Approvals CSA/NRTL/C Class I Div 2, ATEX/IECEx (optional)
Installation Bulkhead screws; simple installation for quick integration




View full details

Product Description

Bently Nevada 990-04-70-02-00 Parameters

Product Overview

Parameter Details
Manufacturer Bently Nevada
Series 990
Model/Part Number 990-04-70-02-00
Model Type Vibration Transmitter
Product Name 990 Vibration Transmitter
Application Intended for original equipment manufacturers (OEMs) of centrifugal air compressors, small pumps, motors, or fans; provides a simple 4-20 mA proportional vibration signal as input to machinery control systems
Compatibility Compatible with Bently Nevada 3300 XL 8 mm Proximity Transducer System; accepts inputs from one proximity probe and extension cable
Function Loop-powered transmitter that measures and outputs vibration levels as a 4-20 mA signal proportional to peak vibration; includes fault detection for open/short circuit

Functional Specifications

Parameter Details
Full-Scale Option (A) 04: 0-4 mils pp (0-100 μm pp)
System Length Option (B) 70: 7.0 meters (23.0 feet)
Mounting Option (C) 02: Bulkhead screws
Agency Approval Option (D) 00: Not required
Output Signal 4-20 mA loop-powered, proportional to peak vibration; fault indication at < 2 mA or > 22 mA
Power Supply +12 to +35 Vdc input
Input Accepts one non-contacting 3300 XL 8 mm Proximity Probe and extension cable
Measurement Range 0-4 mils pp (0-100 μm pp)
Frequency Response 0 to 10,000 Hz (0 to 600,000 cpm)
Accuracy ±2% of full scale
Operating Temperature -30°C to +65°C (-22°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity Up to 95%, non-condensing
Dimensions Approximately 16 cm x 16 cm x 12 cm
Weight 0.8 kg
Approvals CSA/NRTL/C Class I Div 2, ATEX/IECEx (optional)
Installation Bulkhead screws; simple installation for quick integration
