Product Description
Mahsulot tafsilotlari
-

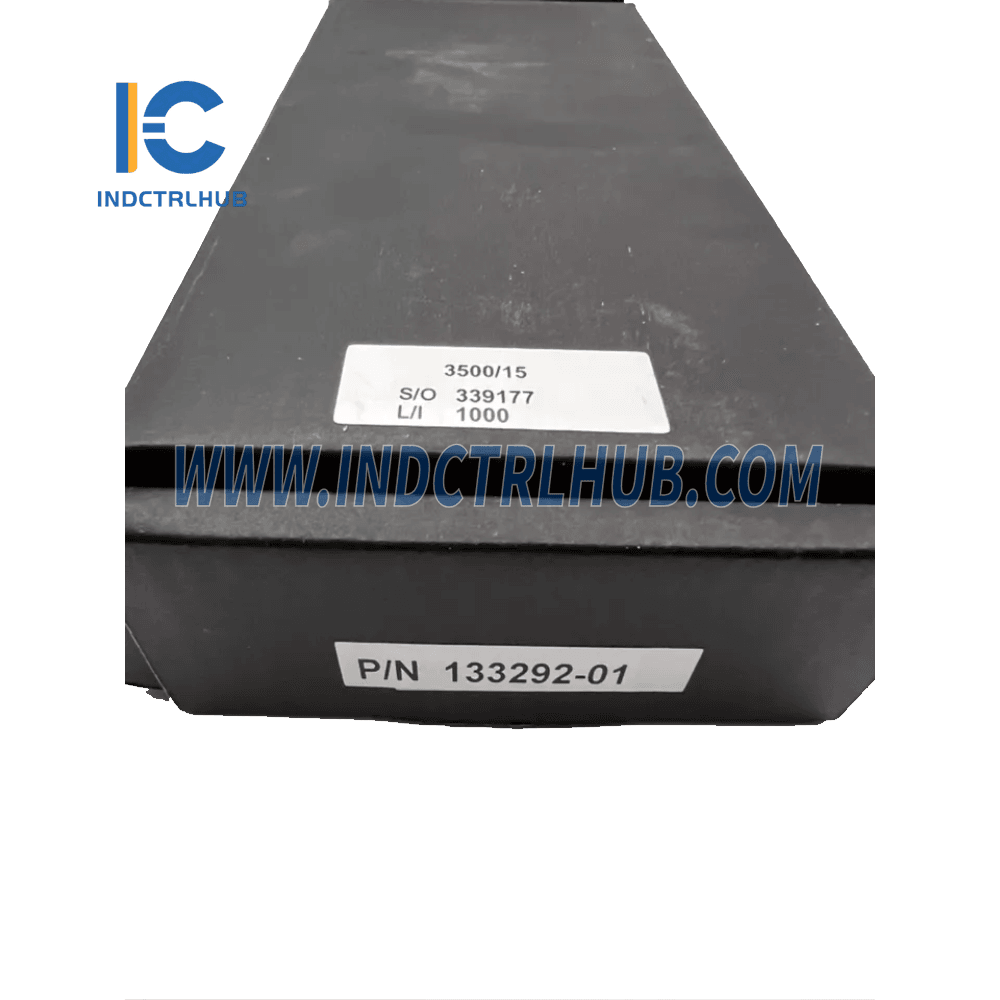

Ishlab chiqaruvchi: Bently Nevada
-
Seriya: 3500/15
-
Model/Qism raqami: 133292-01
-
Model turi: Past kuchlanishli DC quvvat ta'minoti moduli
Tavsif
3500/15 Past Kuchlanishli DC Quvvat Ta'minoti Moduli 3500 shkafining chap tomonidagi belgilangan slotlarga o'rnatish uchun mo'ljallangan yarim balandlikdagi moduldir. Shkaf bitta yoki ikkita quvvat ta'minotini o'z ichiga olishi mumkin va AC va DC quvvat ta'minotlarining har qanday kombinatsiyasi qo'llab-quvvatlanadi. Bitta quvvat ta'minoti to'liq shkafni quvvatlantira oladi. Bu moslashuvchanlik sizning 3500 tizimingiz uchun ishonchli quvvat sozlamasini ta'minlaydi.
Texnik xususiyatlar
| Xususiyat |
Tafsilotlar |
| Kirishlar |
Universal AC, past kuchlanishli DC |
| Kirish kuchlanishi (universal AC) |
110 dan 220 Vac (nominal), 85 dan 264 Vac (xavfsiz hududlar), 85 dan 250 Vac (xavfli hududlar), 120 dan 373 Vac pk |
| Kirish chastotasi |
47 dan 63 Hz gacha |
| Kirish kuchlanishi (past kuchlanishli DC) |
20 dan 30 Vdc gacha |
| To'liq shkaf tok sarfi (universal AC) |
2.8 A rms (maksimal) |
| To'liq shkaf tok sarfi (past kuchlanishli DC) |
11.0 A (maksimal) |
| To'liq shkaf tok sarfi (yuqori kuchlanishli DC) |
2.5 A (maksimal) |
| Ishlash harorati |
-30°C dan +65°C gacha (-22°F dan +150°F gacha) |
| Saqlash harorati |
-40°C dan +85°C gacha (-40°F dan +185°F gacha) |
| Namlik |
95%, kondensatsiyasiz |
Atrof-muhit chegaralari
-
Ishlash harorati: -30°C dan +65°C gacha (-22°F dan +150°F gacha)
-
Saqlash Harorati: -40°C dan +85°C gacha (-40°F dan +185°F gacha)
-
Namlik: 95%, kondensatsiyasiz
Jismoniy O'lchamlar
| Xususiyat |
Tafsilotlar |
| O'lchamlar |
120.7 mm x 50.8 mm x 251.5 mm (4.75 dyuym x 2.0 dyuym x 9.9 dyuym) |
| Og'irlik |
1.39 kg (3.06 funt) |
Buyurtma Ma'lumotlari
3500/15 Quvvat Ta'minoti Moduli uchun qism raqami formati quyidagicha:
| A: Quvvat Ta'minoti Turi (Yuqori Slot) |
Variantlar |
| 03 |
An'anaviy Yuqori Kuchlanishli DC (88 dan 140 Vdc gacha) |
| 04 |
An'anaviy Past Kuchlanishli DC (20 dan 30 Vdc gacha) |
| 05 |
Universal AC Kuchlanishi (85 dan 264 Vac rms gacha) |
| 06 |
Yuqori Kuchlanishli DC Ta'minoti |
| 07 |
Past Kuchlanishli DC Ta'minoti |
| B: Quvvat Ta'minoti Turi (Pastki Slot) |
Variantlar |
| 00 |
Ta'minotsiz (ta'minot talab qilinmaganda ishlatiladi) |
| 03 |
An'anaviy Yuqori Kuchlanishli DC (88 dan 140 Vdc gacha) |
| 04 |
An'anaviy Past Kuchlanishli DC (20 dan 30 Vdc gacha) |
| 05 |
Universal AC Kuchlanishi (85 dan 264 Vac rms gacha) |
| 06 |
Yuqori Kuchlanishli DC Ta'minoti |
| 07 |
Past Kuchlanishli DC Ta'minoti |
| C: Agentlik Tasdiqlashi |
Variantlar |
| 00 |
Yo'q |
| 01 |
CSA / NRTL / C (1-sinf, 2-bo'lim) |
