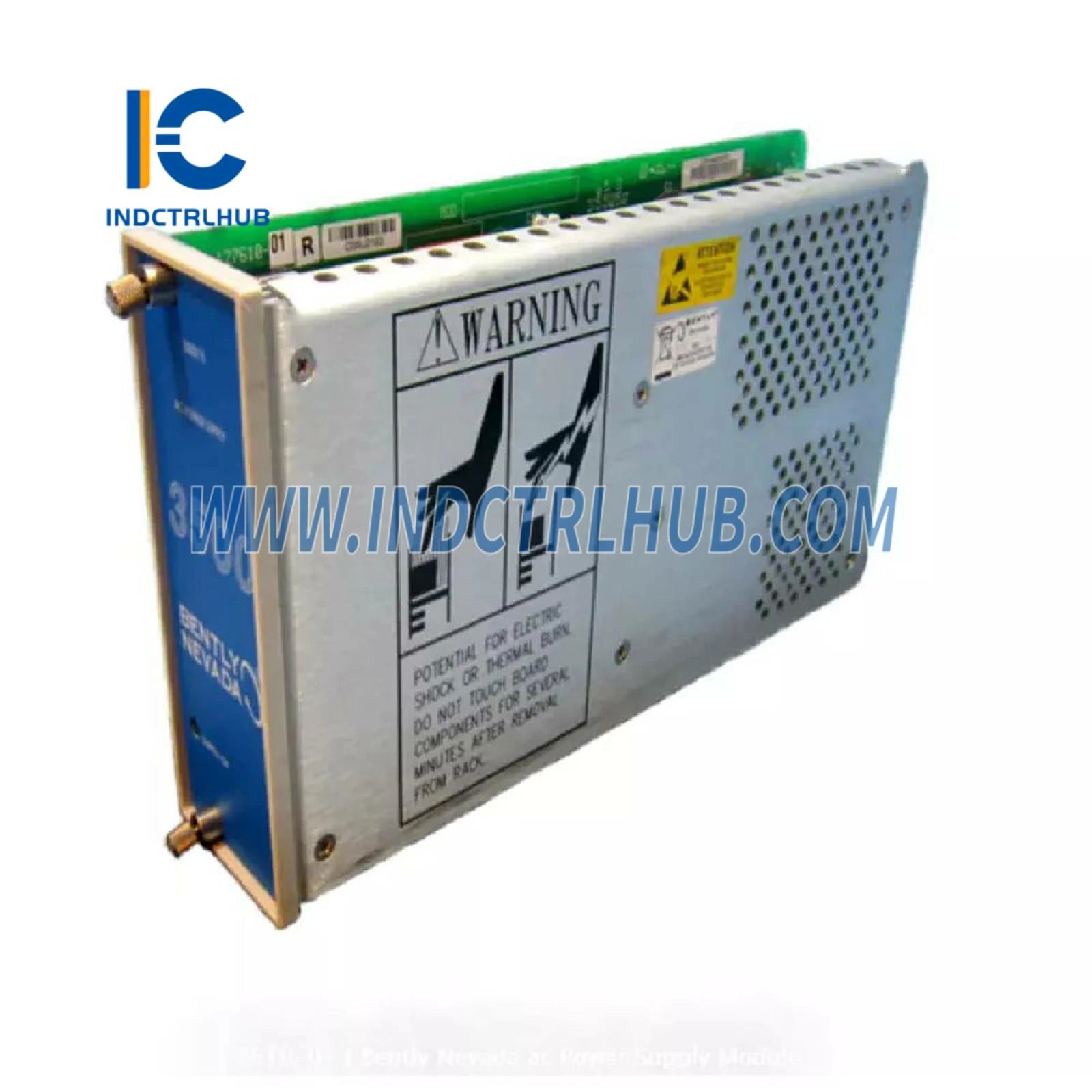

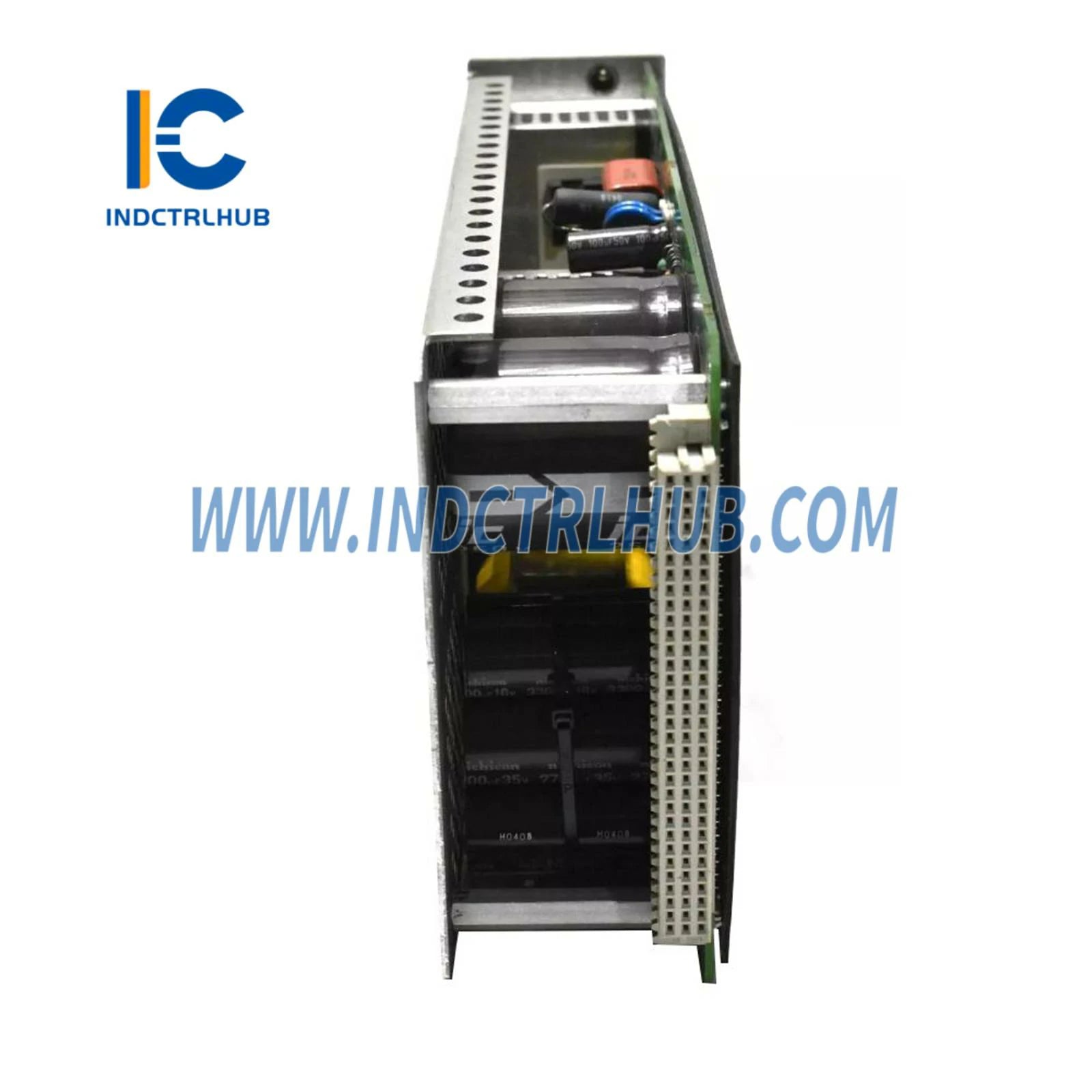

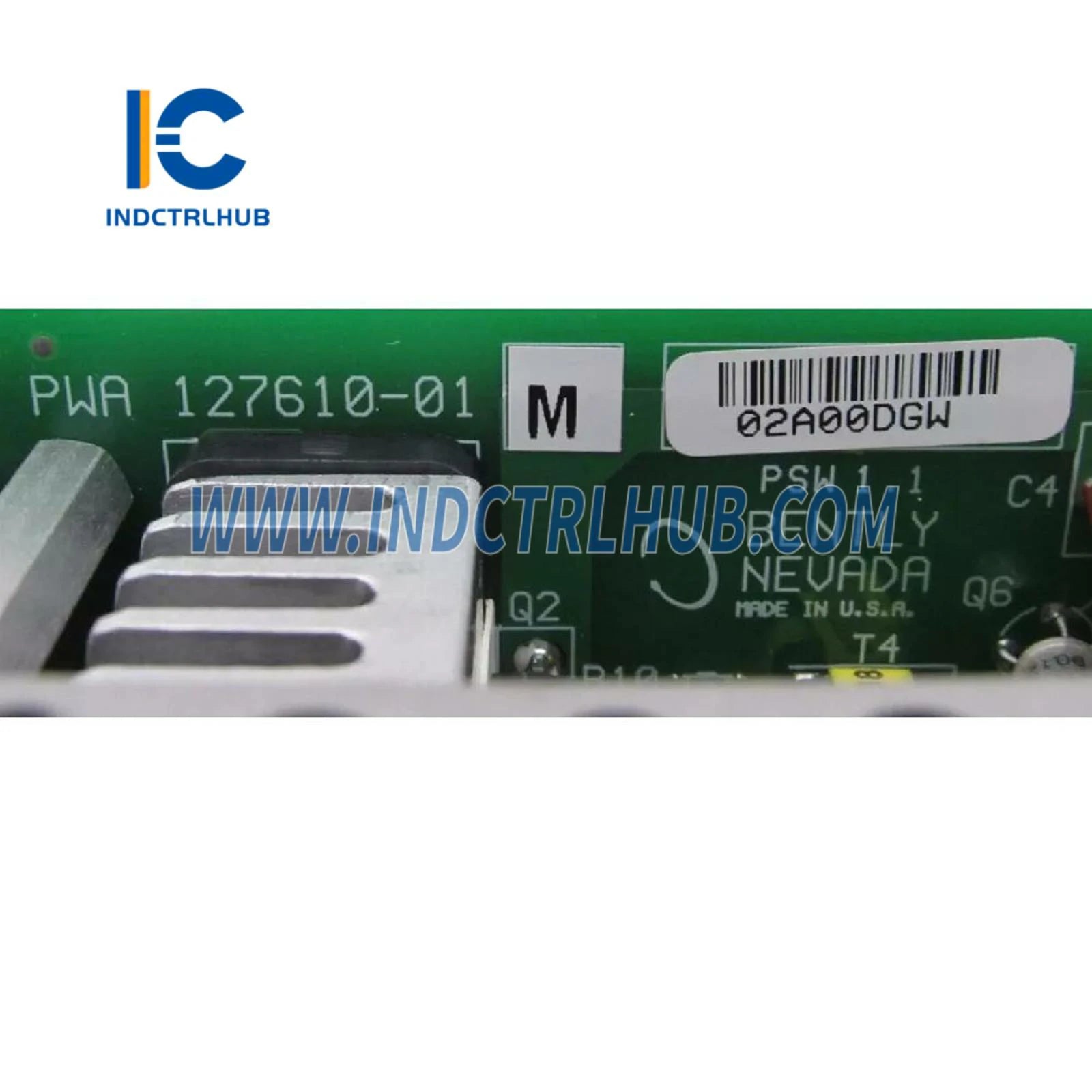

Bently Nevada 3500/15 127610-01 AC Quvvat Ta'minoti Moduli

Mahsulot tafsilotlari

Tavsif

3500/15 AC va DC Quvvat Ta'minoti Modullari 3500 shkafining chap tomonidagi belgilangan uyalar uchun mo'ljallangan yarim balandlikdagi modullardir. Bir shkafda AC va DC quvvat manbalarining har qanday kombinatsiyasida bitta yoki ikkita quvvat manbai joylashtirilishi mumkin, har bir quvvat manbai to'liq shkafni quvvatlantira oladi.

Texnik xususiyatlar

Kirishlar

• Kuchlanish variantlari:

  • Universal Kuchlanish AC

    • Kirish Kuchlanishi:
      • Nominal: 110 dan 220 Vac gacha
      • Xavfsiz hududlar: 85 dan 264 Vac rms gacha
      • Xavfli hududlar: 85 dan 250 Vac rms; 120 dan 373 Vac pk gacha
    • Kirish chastotasi: 47 dan 63 Hz gacha
    • Eslatma: Universal AC Quvvat Ta'minotlari eski Yuqori Kuchlanishli yoki Past Kuchlanishli AC birliklari bilan mos emas.

  • Yuoqri Kuchlanishli DC:

    • Kirish Kuchlanishi: 88 dan 140 Vdc gacha

  • Past Kuchlanishli DC:

    • Kirish Kuchlanishi: 20 dan 30 Vdc gacha

Jismoniy O'lchamlar va Og'irlik

• Quvvat Ta'minoti Moduli:

  • Balandlik x Kenglik x Chuqurlik: 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
  • Og'irligi: 1.39 kg (3.06 funt)

• Quvvat Kirish Moduli:

  • Balandlik x Kenglik x Chuqurlik: 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
  • Og'irligi: 0.34 kg (0.75 lb)

Atrof-muhit chegaralari

• Ishlash harorati: -30°C dan +65°C gacha (-22°F dan +150°F gacha)
• Saqlash Harorati: -40°C dan +85°C gacha (-40°F dan +185°F gacha)
• Namlik: 95%, kondensatsiyasiz

Buyurtma Ma'lumotlari

3500/15-AA-BB-CC

• A: Quvvat Manbai Turi (Yuqori Slot)

  • 03: Meros Yuqori Kuchlanishli DC (88 dan 140 Vdc gacha)
  • 04: Meros Past Kuchlanishli DC (20 dan 30 Vdc gacha)
  • 05: Universal AC Kuchlanishi (85 dan 264 Vac rms gacha)
  • 06: Yuqori Kuchlanishli DC Ta'minoti
  • 07: Past Kuchlanishli DC Ta'minoti

• B: Quvvat Manbai Turi (Pastki Slot)

  • 00: Ta'minot yo'q (ta'minot talab qilinmaganda ishlatiladi)
  • 03: Meros Yuqori Kuchlanishli DC (88 dan 140 Vdc gacha)
  • 04: Meros Past Kuchlanishli DC (20 dan 30 Vdc gacha)
  • 05: Universal AC Kuchlanishi (85 dan 264 Vac rms gacha)
  • 06: Yuqori Kuchlanishli DC Ta'minoti
  • 07: Past Kuchlanishli DC Ta'minoti

• C: Agentlik Tasdiqlashi

  • 00: Yo'q
  • 01: CSA / NRTL / C (1-sinf, 2-bo'lim)
  • 02: ATEX / IECEx / CSA (1-sinf, 2-zona)
