Product Description
Bently Nevada 330904-00-16-05-02-00 Parameters
Product Overview
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300 XL NSv |
| Model/Part Number | 330904-00-16-05-02-00 |
| Model Type | Proximity Probe |

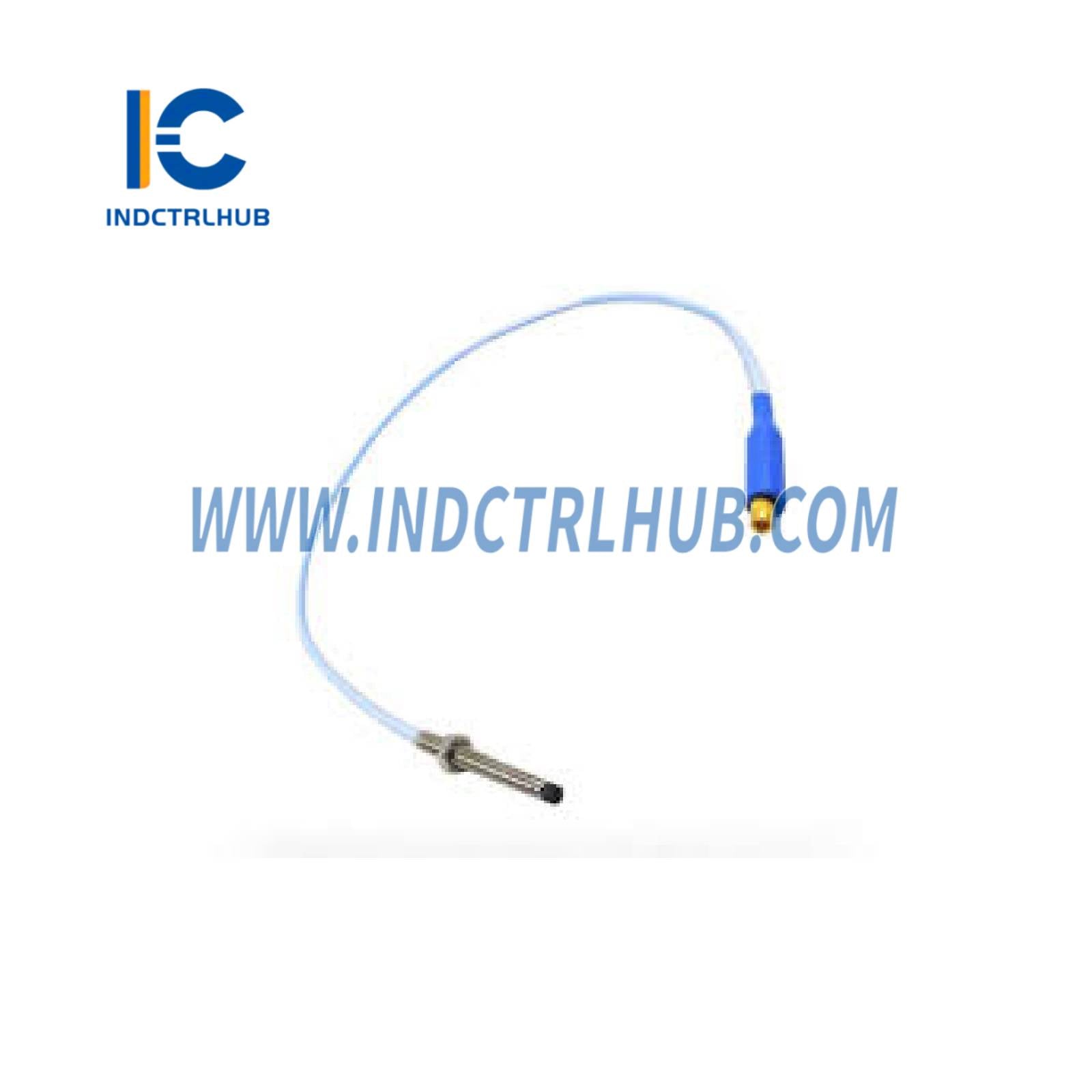

| Product Name | 3300 NSv Proximity Probe |
| Application | Non-contacting measurement of machine shaft position and vibration in rotating machinery condition monitoring |
| Compatibility | Part of 3300 XL NSv 8 mm Proximity Transducer System, compatible with 3300 XL extension cables and Proximitor Sensors |
| Function | Provides precise eddy current-based proximity sensing for shaft vibration and position monitoring |
Functional Specifications
| Parameter | Details |
|---|---|
| Probe Diameter | 8 mm |
| Thread Type | M8 x 1 |
| Unthreaded Length | 0.0 in (00) |
| Overall Case Length | 1.6 in (40.6 mm) |
| Total System Length | 1.0 m (3.3 ft) |
| Connector and Cable Type | Armored cable, 2-pin MIL-C-5015 connector |
| Agency Approval Option | Multiple approvals (CSA/NRTL/C, ATEX/IECEx) |
| Cable Pull Strength | 330 N (75 lbf) |
| Operating Temperature | -52°C to +177°C (standard range) |
| Storage Temperature | -51°C to +177°C |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Weight | 0.323 kg |
| Installation | Install per Bently Nevada drawing 141092 |
