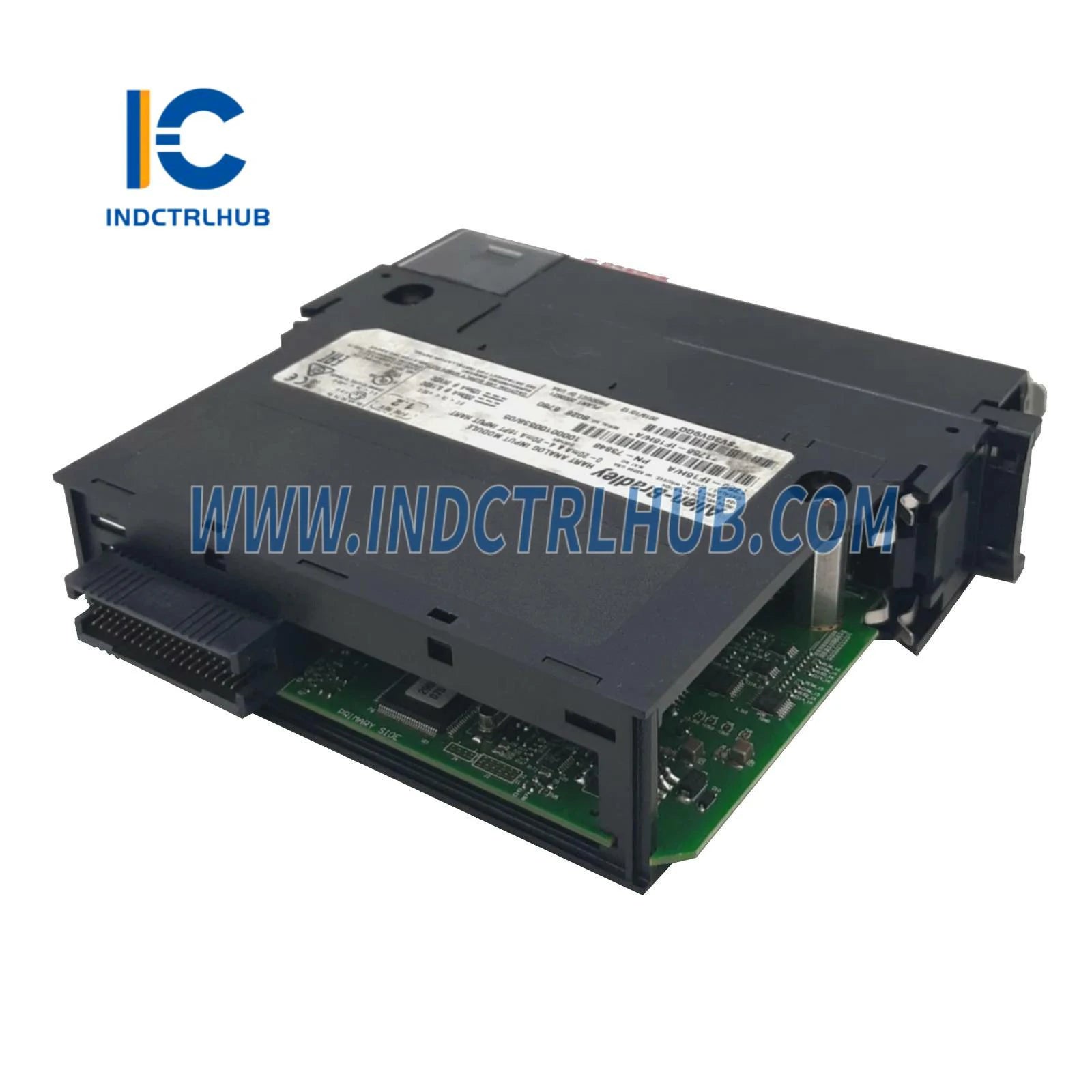

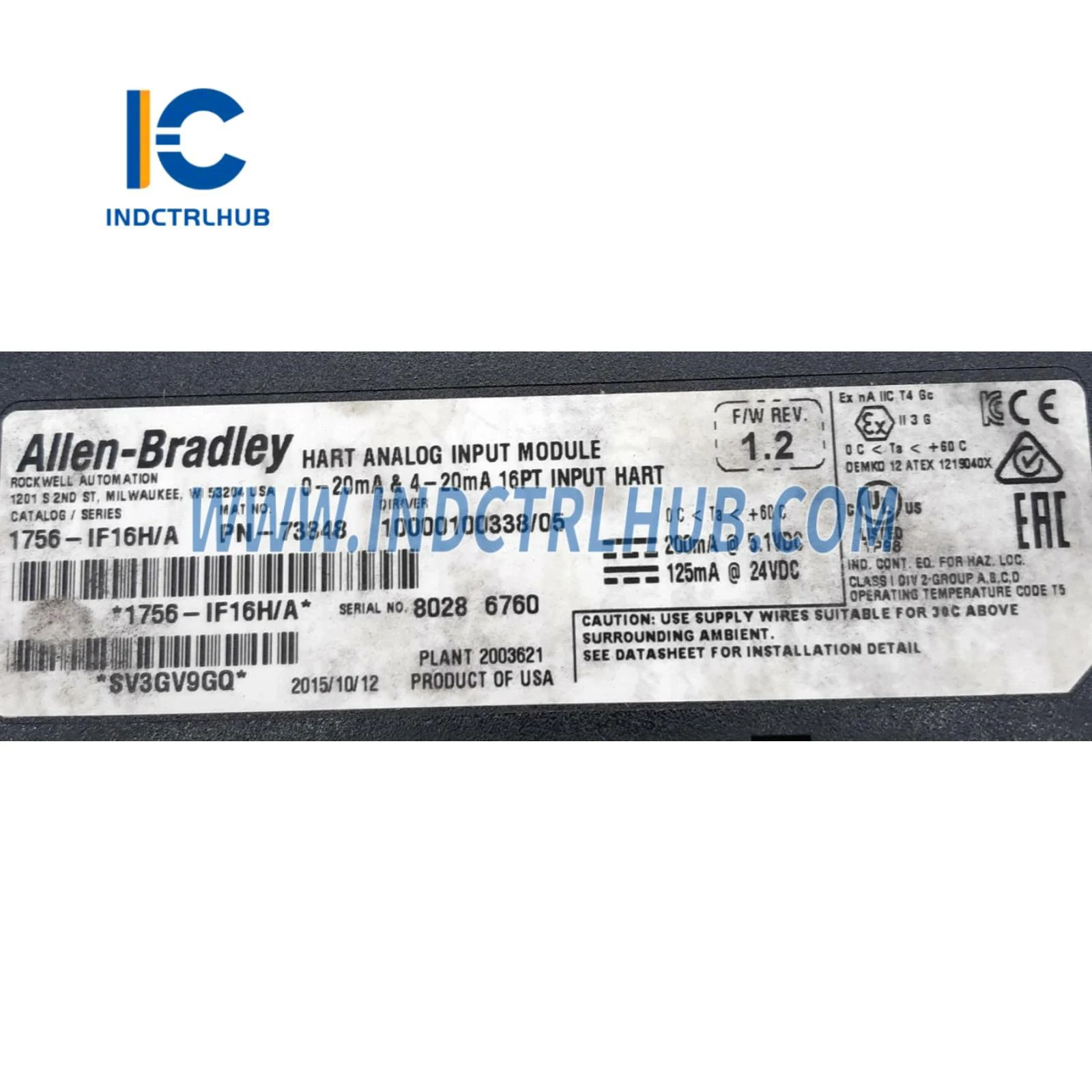

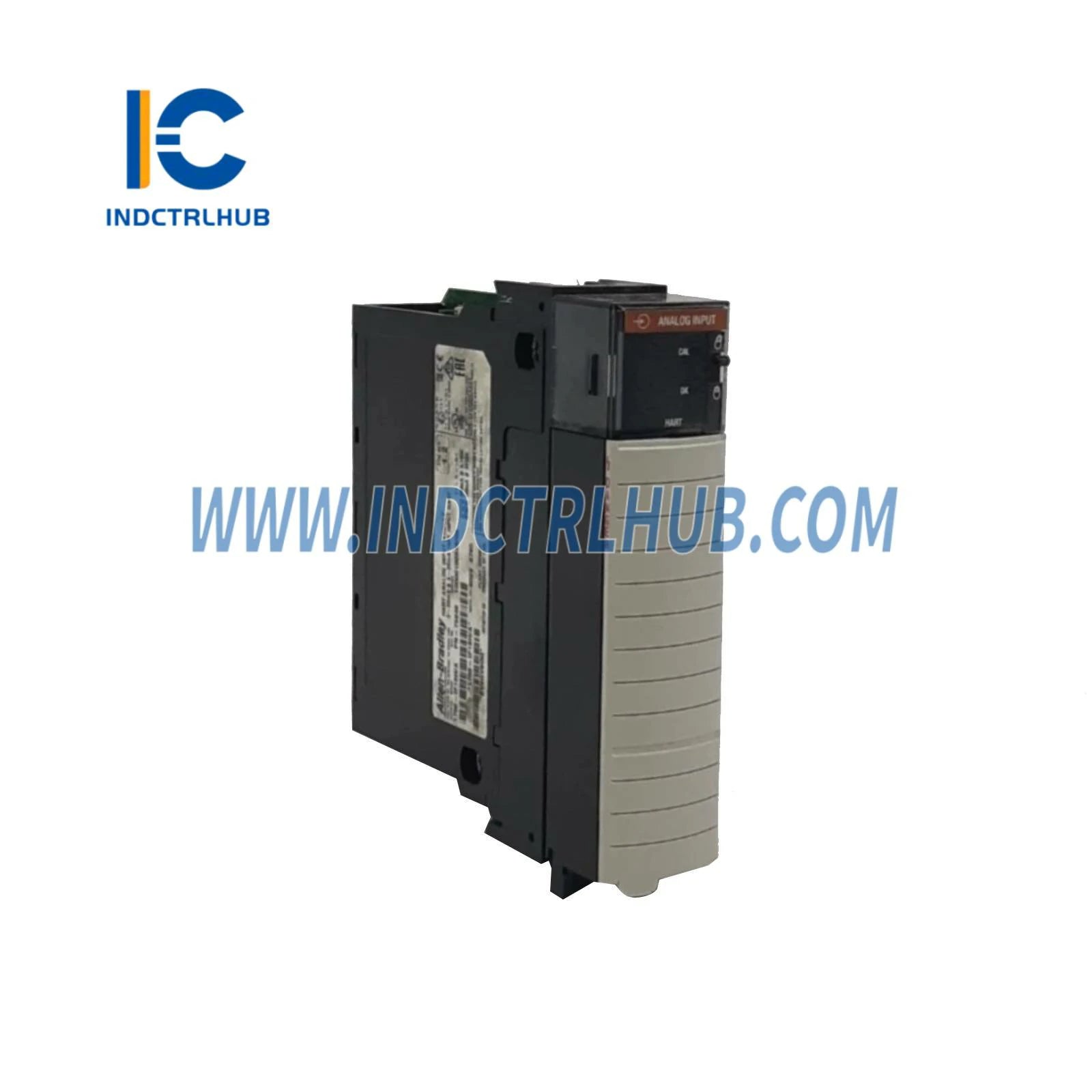

| Input Channels |
16 analog inputs (differential, current only) |
| Input Type |
Current (HART compatible) |
| Input Current Range |
0–20 mA, 4–20 mA |
| Resolution |
16 bits (0.32 µA/bit for 4–20 mA) |
| Input Impedance |
250 Ω |
| Data Format |
Integer or floating-point |
| HART Communication |
Supports HART protocol v5, v6, v7 |
| Conversion Method |
Successive approximation |
| Update Time |
20 ms (single channel), 400 ms (all channels with HART enabled) |
| Common Mode Rejection |
>80 dB at 60 Hz |
| Normal Mode Rejection |
>60 dB at 60 Hz |
| Accuracy |
±0.4% of full scale at 25°C |
| Calibration |
Factory calibrated, user calibration supported |
| Power Dissipation |
5.0 W maximum |
| Backplane Current Load |
150 mA @ 5.1 V DC, 75 mA @ 24 V DC |
| Isolation |
250 V (continuous), basic insulation type, inputs to backplane, channel-to-channel |

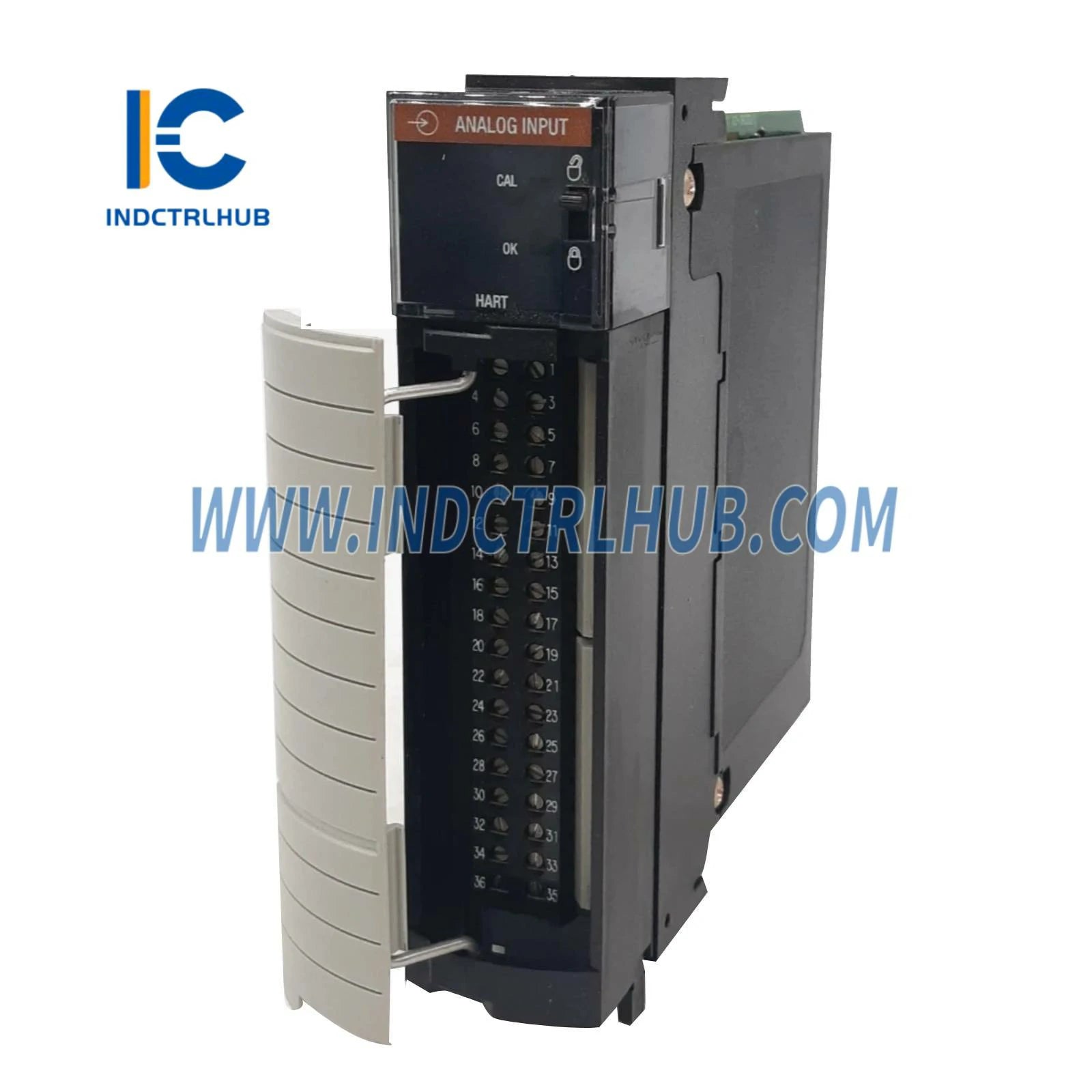

| Terminal Connections |
36-pin removable terminal block (RTB), 1756-TBCH or 1756-TBS6H |
| Wire Size |
0.2–2.5 mm² (22–14 AWG) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% (non-condensing) |
| Vibration Tolerance |
2 G @ 10–500 Hz |
| Shock Tolerance |
30 G (operating), 50 G (non-operating) |
| Dimensions |
145 mm x 35 mm x 140 mm (5.71 in x 1.38 in x 5.51 in) |
| Weight |
0.4 kg (0.88 lb) |
| Standards Compliance |
CE, UL, CSA (Class I, Div 2, Groups A, B, C, D), FM, RCM |
| Certifications |
TUV certified for functional safety (SIL 2) |
