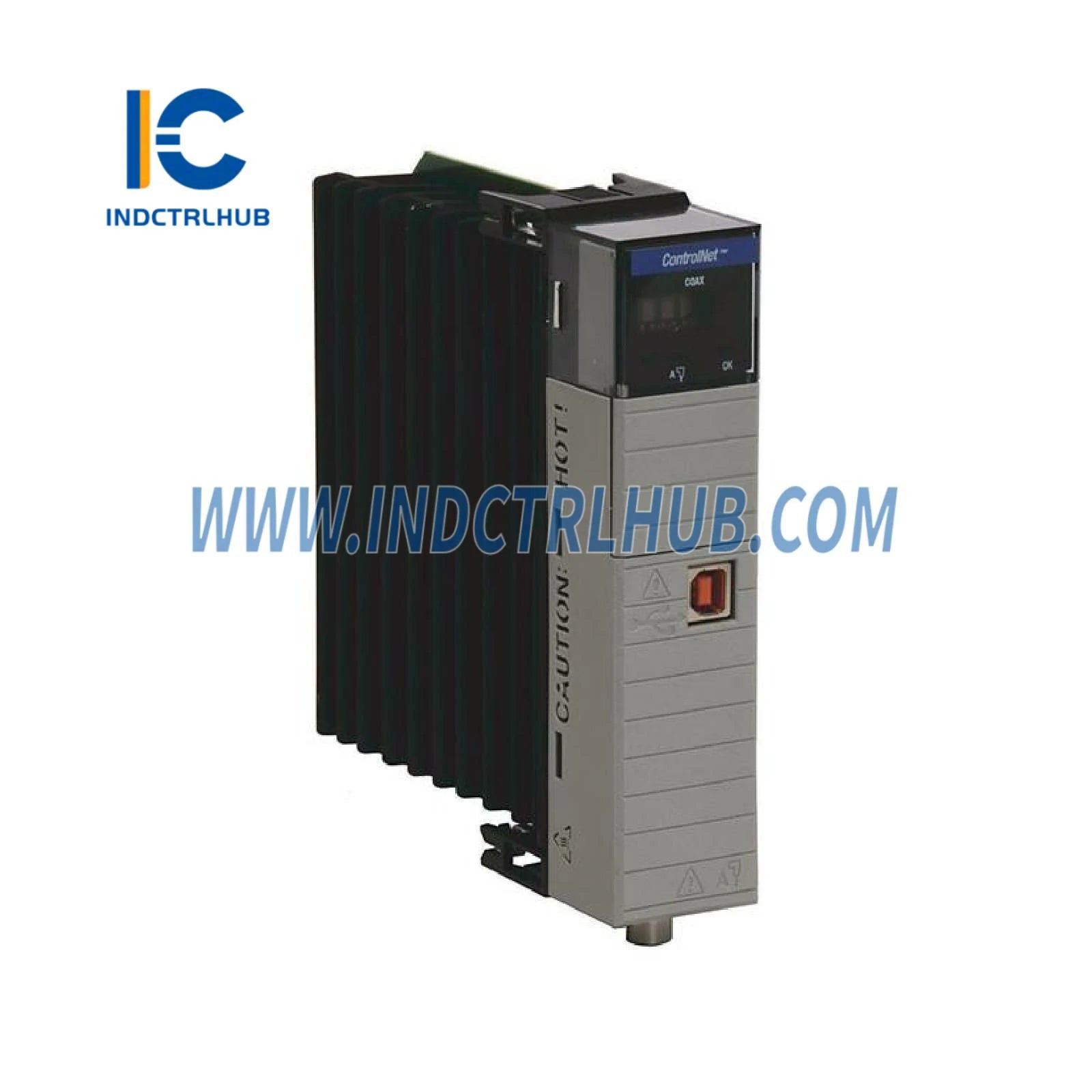

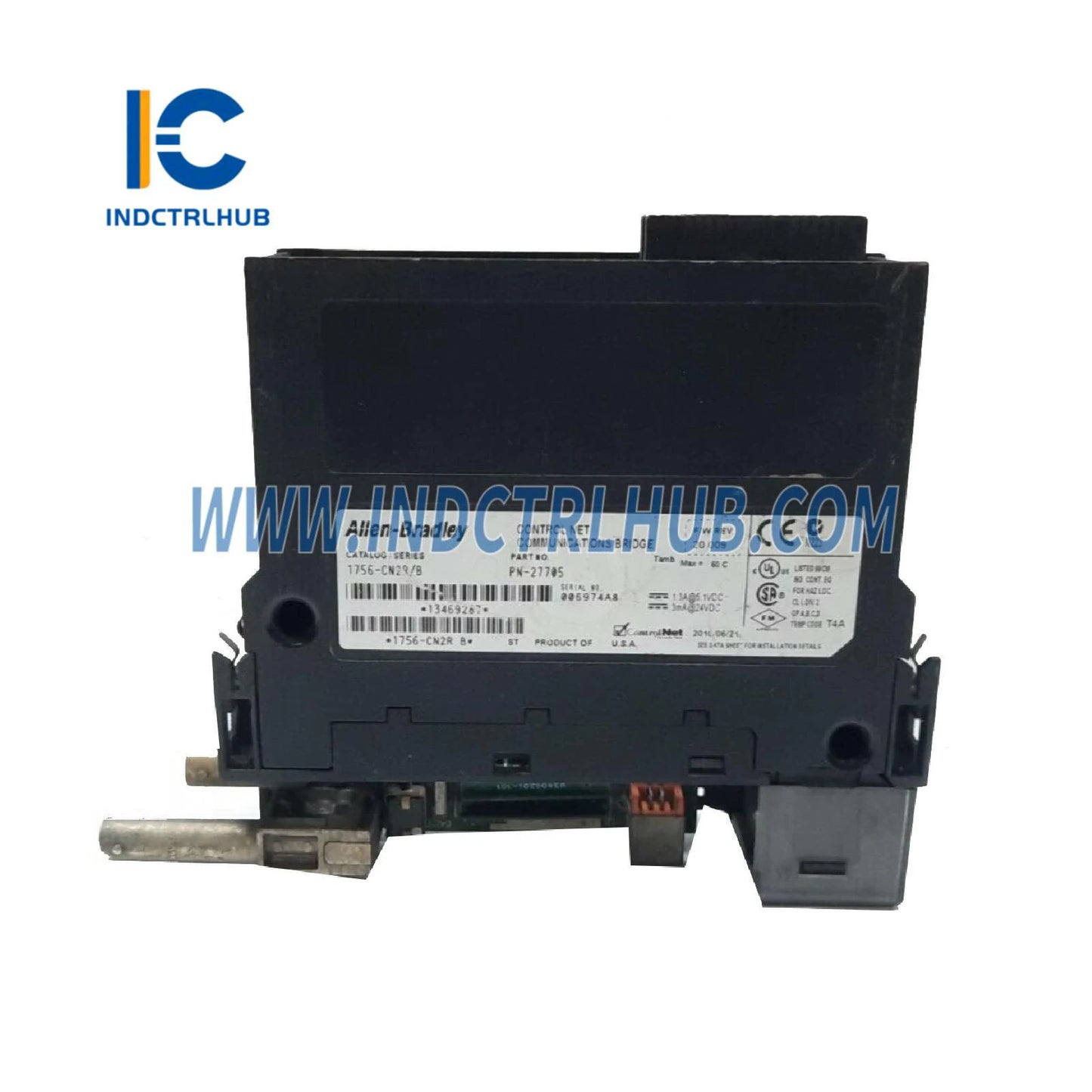

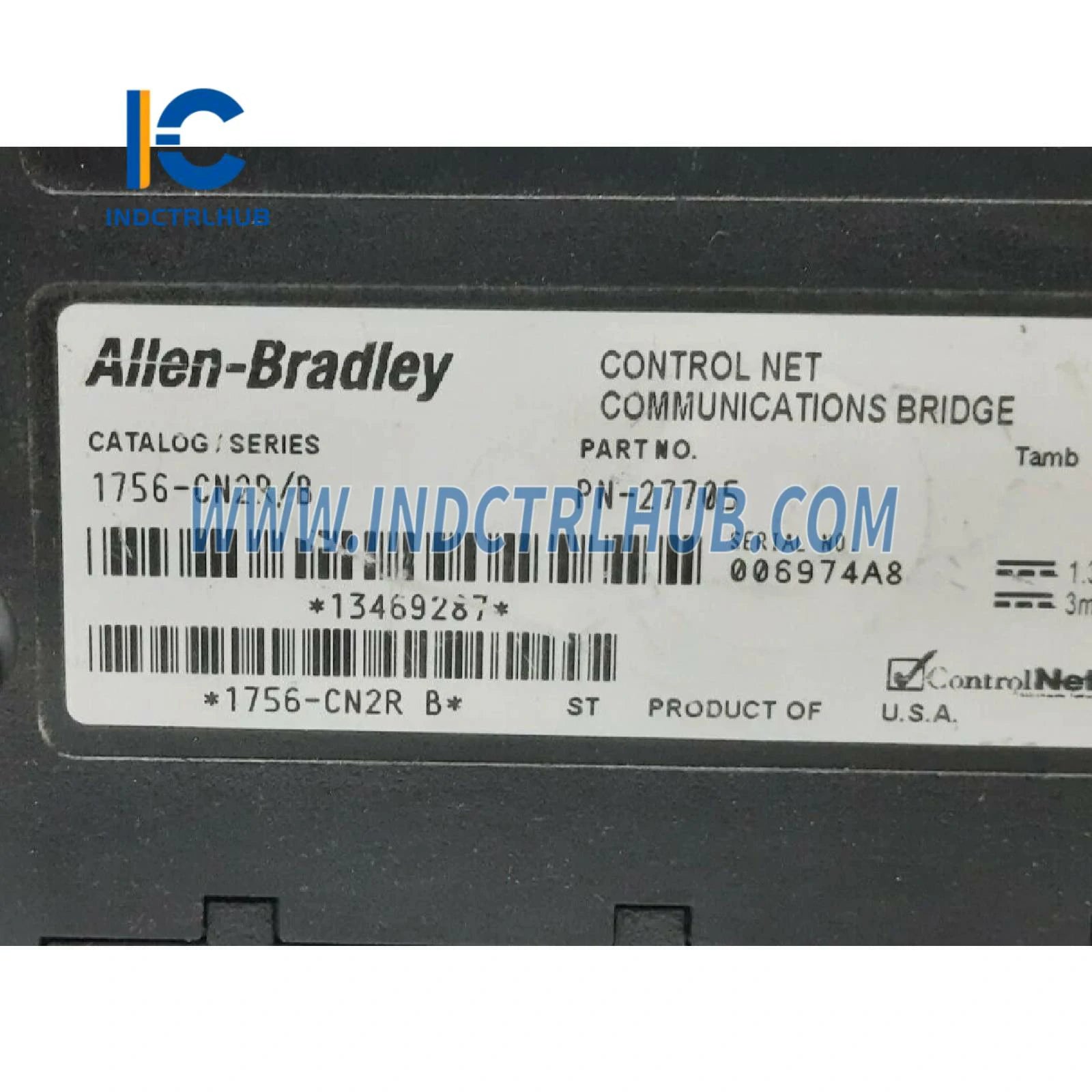

| Communication Protocol |
ControlNet |

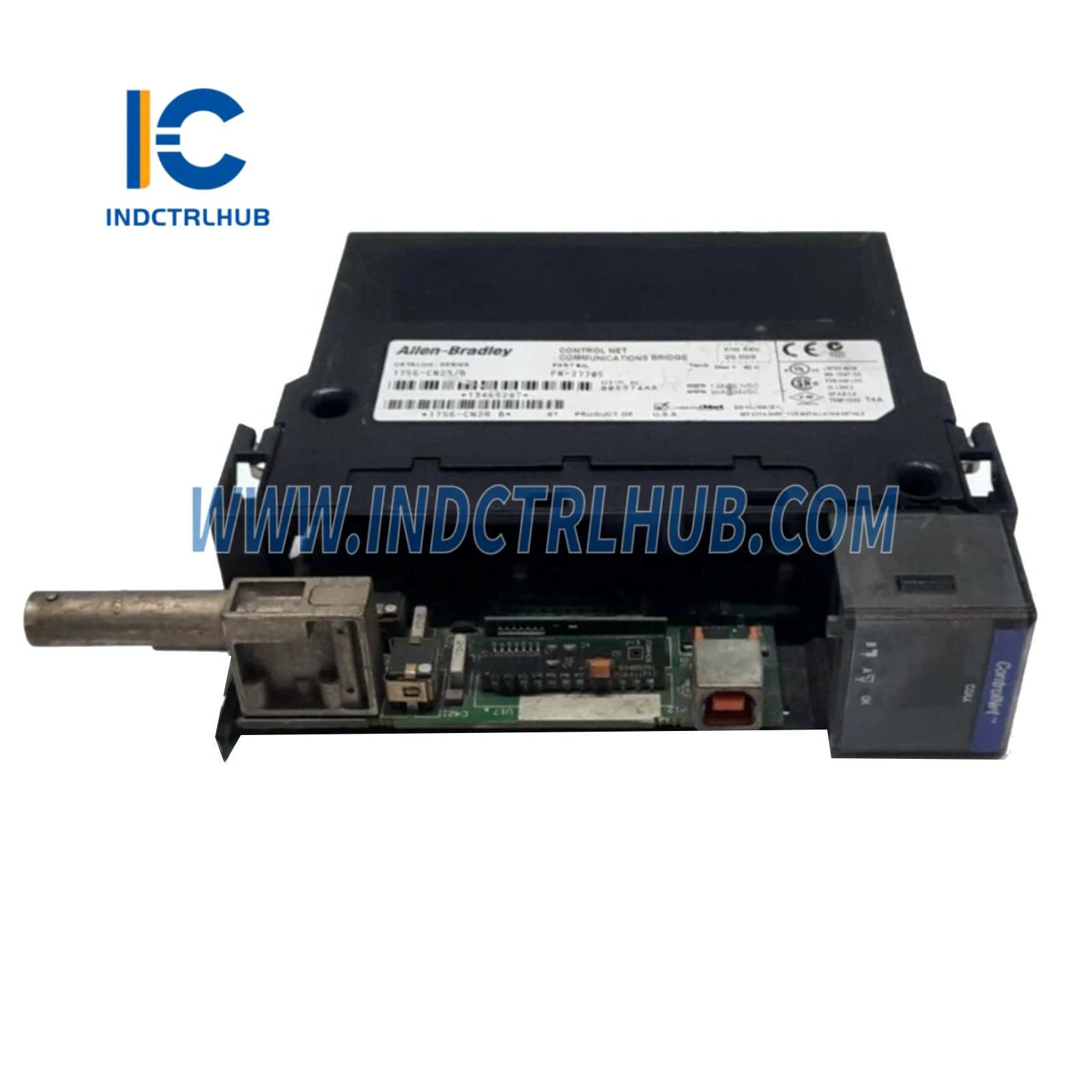

| Communication Ports |
2 ControlNet ports (BNC coaxial) |
| Communication Rate |
5 Mbps |
| Connections |
100 total (128 max with repeaters), up to 99 nodes |
| Logix Connections |
128 |
| Backplane Current |
970 mA at 5.1 V DC, 1.7 mA at 24 V DC |
| Power Dissipation |
5.1 W maximum |
| Thermal Dissipation |
17.4 BTU/hr |
| Slot Width |
1 slot |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% (non-condensing) |
| Vibration |
2 G at 10–500 Hz |
| Shock (Operating) |
30 G |
| Environmental Rating |
IP20 |
| Standards Compliance |
CE, UL, CSA, FM, ATEX, IECEx |
