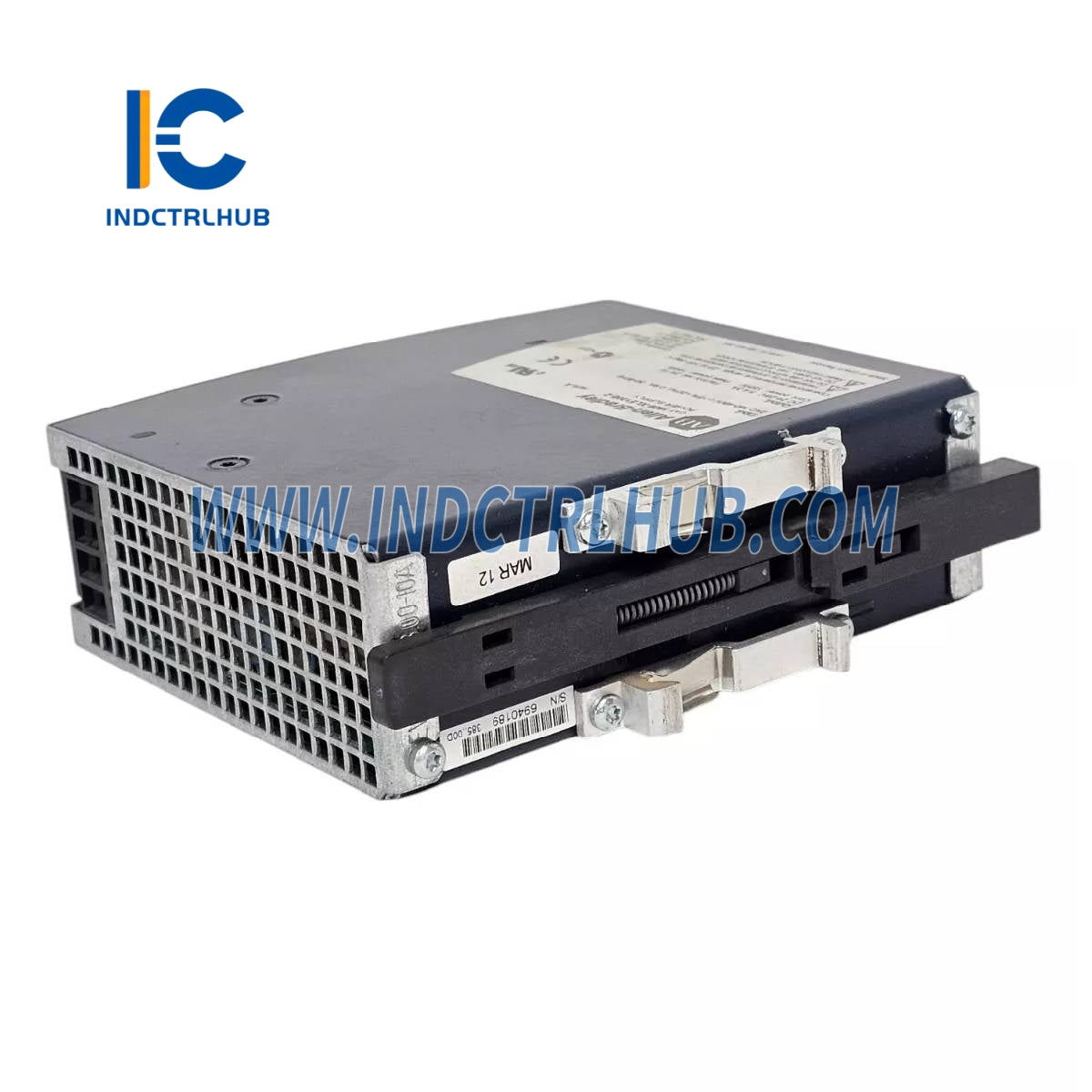

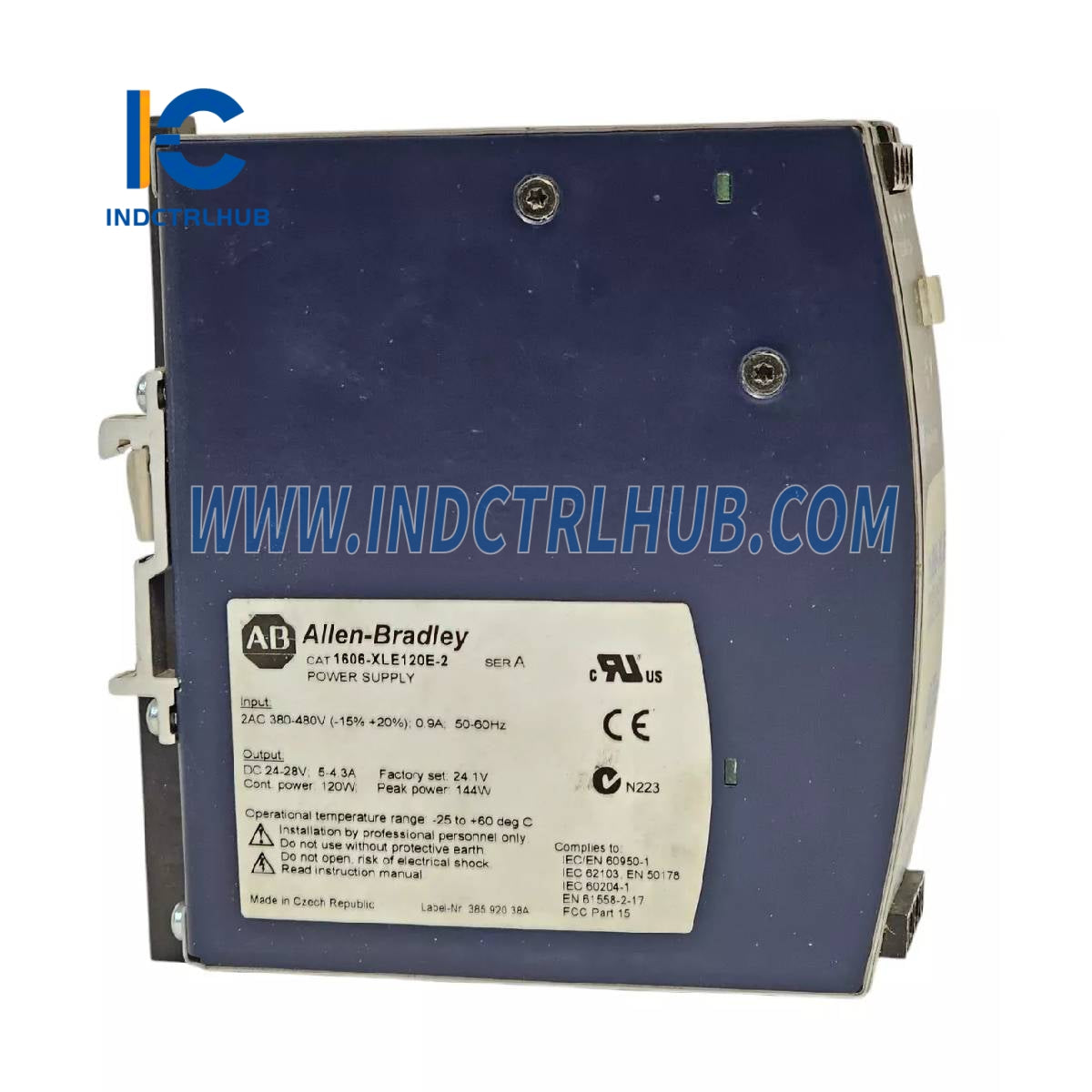

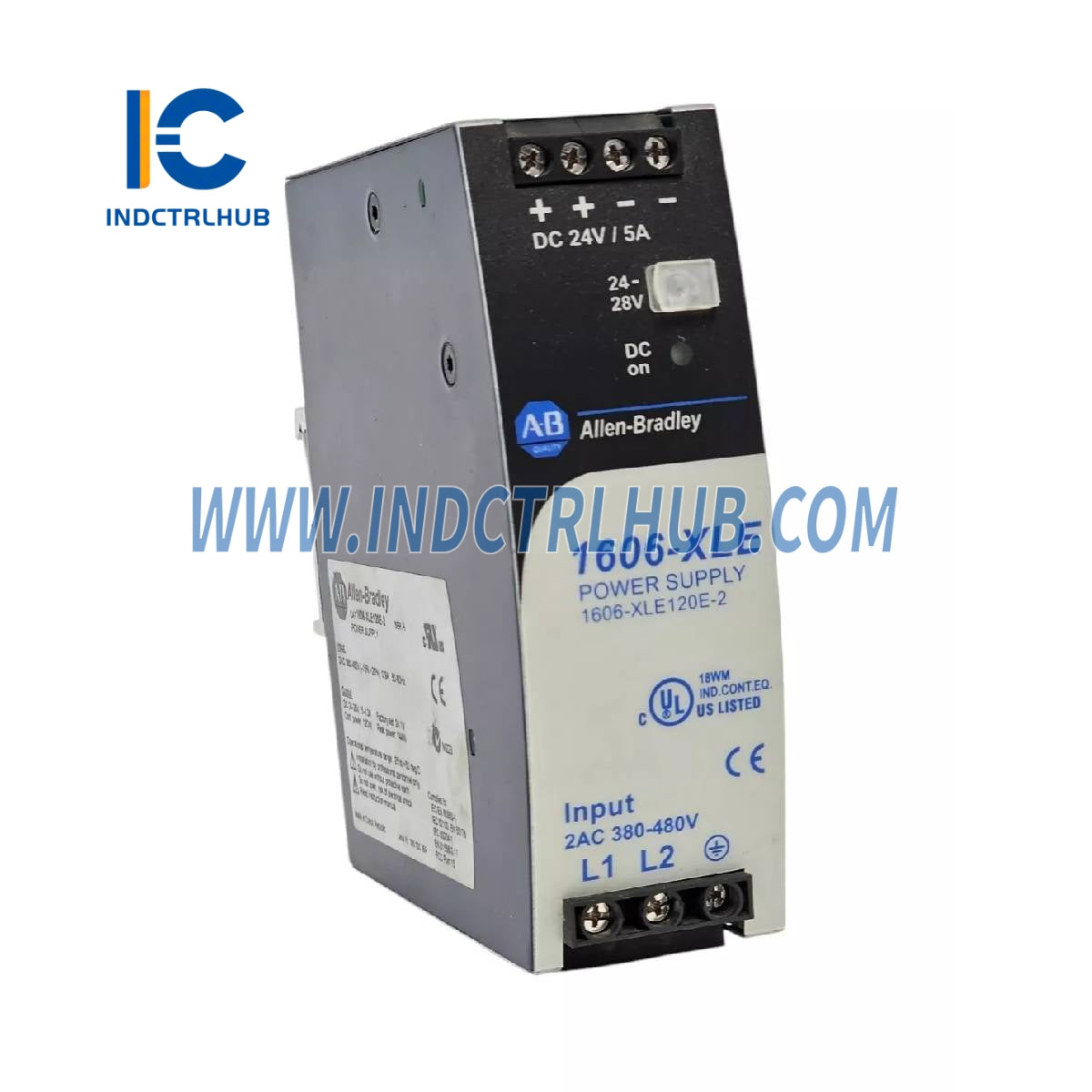

ALLEN BRADLEY 1606-XLE120E-2 480VAC Kirish 24VDC Chiqish 5A Quvvat Manbai

Chiqish kuchlanishi

24V DC

Sozlash diapazoni

24-28V

Chiqish oqimi

5-4.3A (atrof-muhit <60°C), 6-5.2A (atrof-muhit <45°C)

Chiqish Quvvati

120W (atrof-muhit <60°C), 144W (atrof-muhit <45°C)

Chiqish to'lqini

<50mVpp (20Hz dan 20MHz gacha)

Kirish kuchlanishi (AC)

380-480V (-15% / +20%)

Chiziq chastotasi

50-60Hz ±6%

AC Kirish Jorimi

0.75A / 0.68A 400V / 480V AC da

Quvvat omili

0.45 / 0.43 400V / 480V AC da

AC Kirish Jorimi

Odatda 4A choʻqqisi

Samaradorlik

90.4% / 90.0% 400V / 480V AC da

Quvvat yo'qotishlari

12.7W / 13.3W 400V / 480V AC da

Ushlab turish vaqti

27ms / 48ms 400V / 480V AC da

Ishlash Harorati

-25°C dan +70°C gacha (-13°F dan 158°F gacha)

Saqlash harorati

-40°C dan +85°C gacha (-40°F dan 185°F gacha)

Chiqish quvvati kamayishi

1.6W/°C (45-60°C), 3W/°C (60-70°C)

Namlik

5 dan 95% nisbiy namlikgacha (IEC 60068-2-30)

Vibratsiyaga chidamlilik

2-17.8Hz: ±1.6mm, 17.8-500Hz: 2g (IEC 60068-2-6)

Urish Qarshiligi

30g (6ms), 20g (11ms), 3 ta zarba/yo'nalish, jami 18 (IEC 60068-2-27)

Balandlik chegarasi

0 dan 6000m gacha (0 dan 20,000ft gacha)

Balandlik bo'yicha kamaytirish

2000m dan yuqorida 7.5W/1000m yoki 5°C/1000m

Ortiqcha kuchlanish kategoriyasi

III (2000m gacha), II (2000m dan 6000m gacha) (IEC 62103, EN 50178)

Ifloslanish darajasi

2 (IEC 62103, EN 50178, o'tkazmaydigan)

O'lchamlari (K x B x Ch)

40 x 124 x 117 mm

Og'irlik

500g (1.1lb)

DIN-Ral Mosligi

7.5mm yoki 15mm balandlikdagi 35mm DIN-rallari (EN 60715 / EN 50022)

O'rnatish Bo'shliqlari

24-bobga murojaat qiling

1606-XLB

Devorga O'rnatish Braketi

1606-XLSRED

Zaxira moduli

1606-XLBUFFER

Kesh Birligi
