Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | ABB |

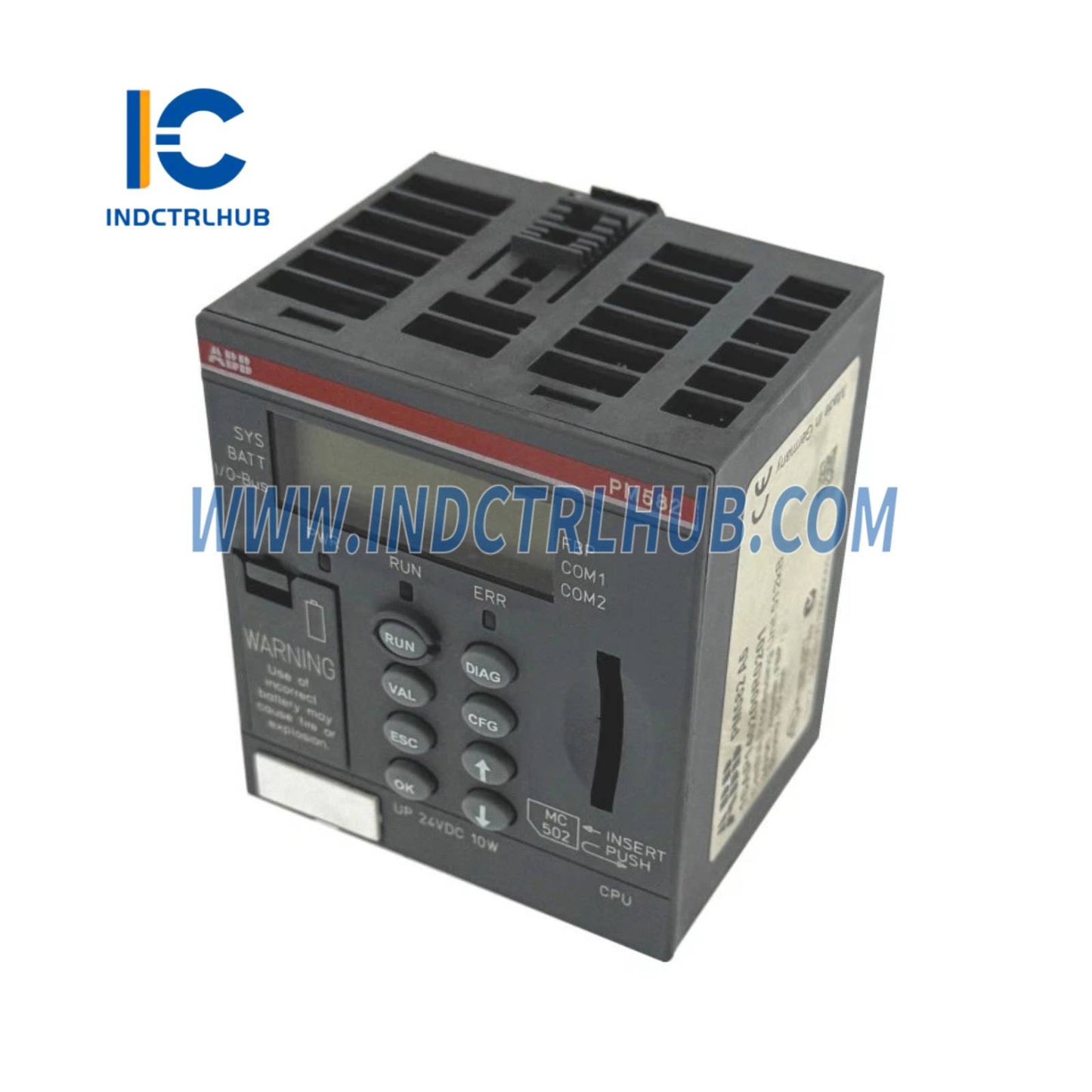

| Model/Part Number | PM582 1SAP140200R0201 |
| Description | AC500 Processor Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | PM582 1SAP140200R0201 |
| Product Name | PM582 AC500 PLC Processor Module |
| Application | Control and automation for industrial processes, suitable for medium-complexity applications |
| Compatibility | Integrates with ABB AC500 series PLC platform, supports S500 I/O modules, and fieldbus networks |
| Function | Executes control programs, manages communication via serial ports, supports data logging and basic networking |
Functional Specifications
| Parameter | Details |
|---|---|
| Processor | High-speed CPU with 2 MB program memory |
| Cycle Time | Shortest cycle time: 0.7/0.06/0.09 µs per word/floating point arithmetic |
| Interfaces | 2x RS232/RS485 (Modbus master/slave, ASCII), FBP (Profibus DP), SD card slot |
| Display | LCD graphical display with backlight |
| Power Supply | 24 V DC nominal (18-30 V DC) |
| Power Consumption | 10 W maximum |
| Operating Temperature Range | -20°C to +60°C |
| Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail mount in control cabinet |
| Dimensions | 119 mm x 189 mm x 135 mm (W x H x D) |
| Weight | 0.5 kg |
| Protection Rating | IP20 |
| Standards Compliance | IEC 61131-2, IEC 61508 (SIL 2), CE, UL, CSA |
