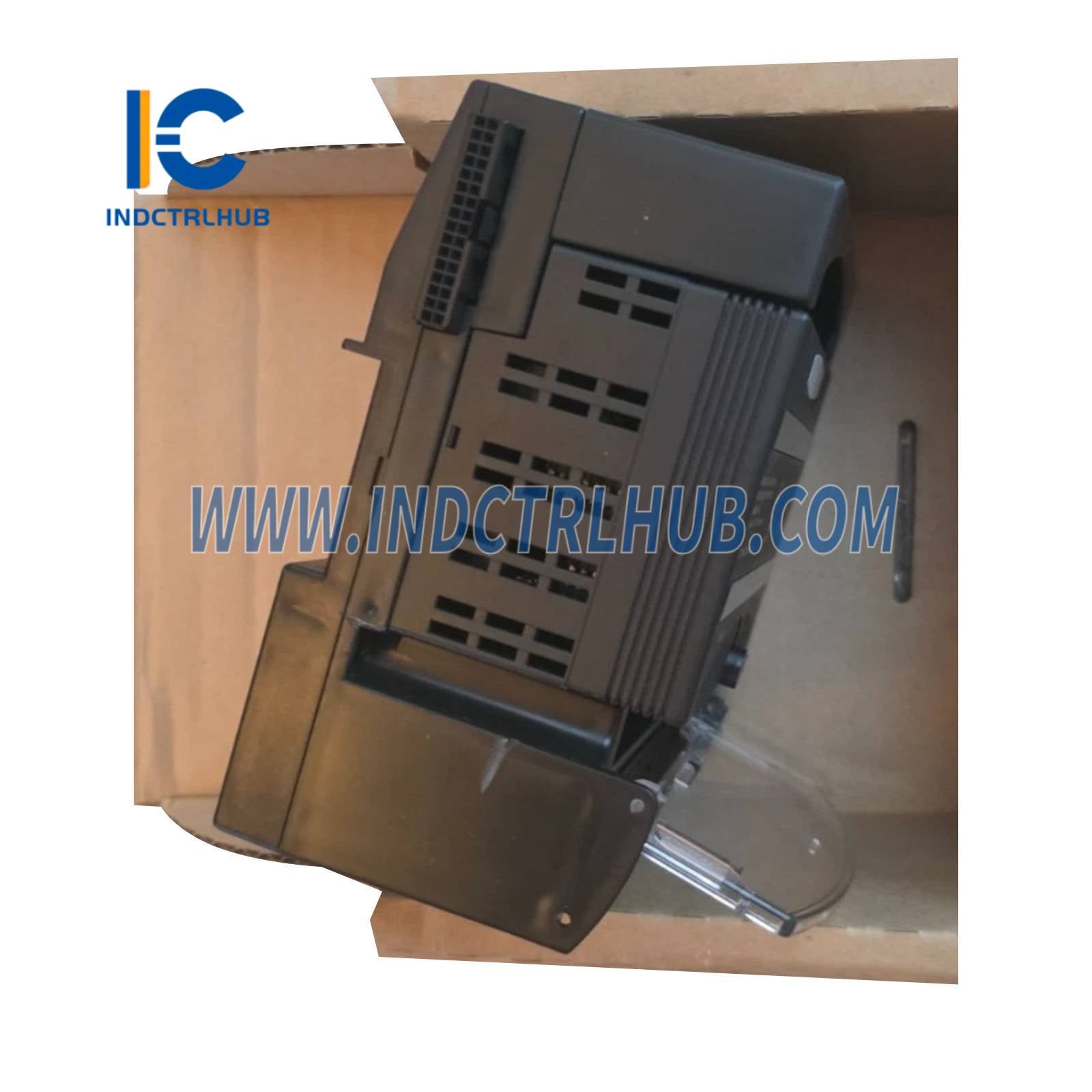

GE IC200ALG325
GE IC200ALG325
Manufacturer: General Electric
Product No.: IC200ALG325
Condition:Stokta 1000 adet mevcut
Product Type: Analog Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 7/24 Destek
- 30 Günlük İade
- Hızlı Kargo
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG325 |
| Description | Analog Output Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG325 |
| Product Name | IC200ALG325 VersaMax Analog Output Module |
| Application | Analog voltage output for industrial automation and process control in PLC systems, such as actuator control and signal transmission |
| Compatibility | Integrates with GE VersaMax PLC systems; mounts on VersaMax carrier bases (IC200ACCxxx); compatible with VersaMax CPUs and NIUs |
| Function | Provides 8-channel analog voltage output with 13-bit resolution for precise control of field devices |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 8 single-ended channels |
| Output Type | Voltage: -10 to +10 V DC (bipolar) or 0 to +10 V DC (unipolar) (jumper selectable) |
| Resolution | 13-bit |
| Accuracy | ±0.1% of full scale |
| Update Rate | 8 ms for all channels |
| Load Capability | Up to 5 mA per channel (2 kΩ minimum load) |
| Isolation | 1500 V AC (field to logic and frame ground) |
| External Power Supply | 18-30 V DC (nominal 24 V DC), 100 mA minimum |
| Power Consumption | 50 mA from +5 V bus (backplane) |
| Operating Temperature Range | 0 to 60°C |
| Dimensions | 110 mm x 66 mm x 45 mm (W x H x D) approximate |
| Weight | 0.2 kg |
| Mounting | Snaps onto VersaMax carrier base |
| LED Indicators | FLD PWR (field power), OK (module status) |
| Wiring Configuration | Single-ended |
| Standards Compliance | IEC 61131-2, CE, UL, CSA, Class I Division 2 |
