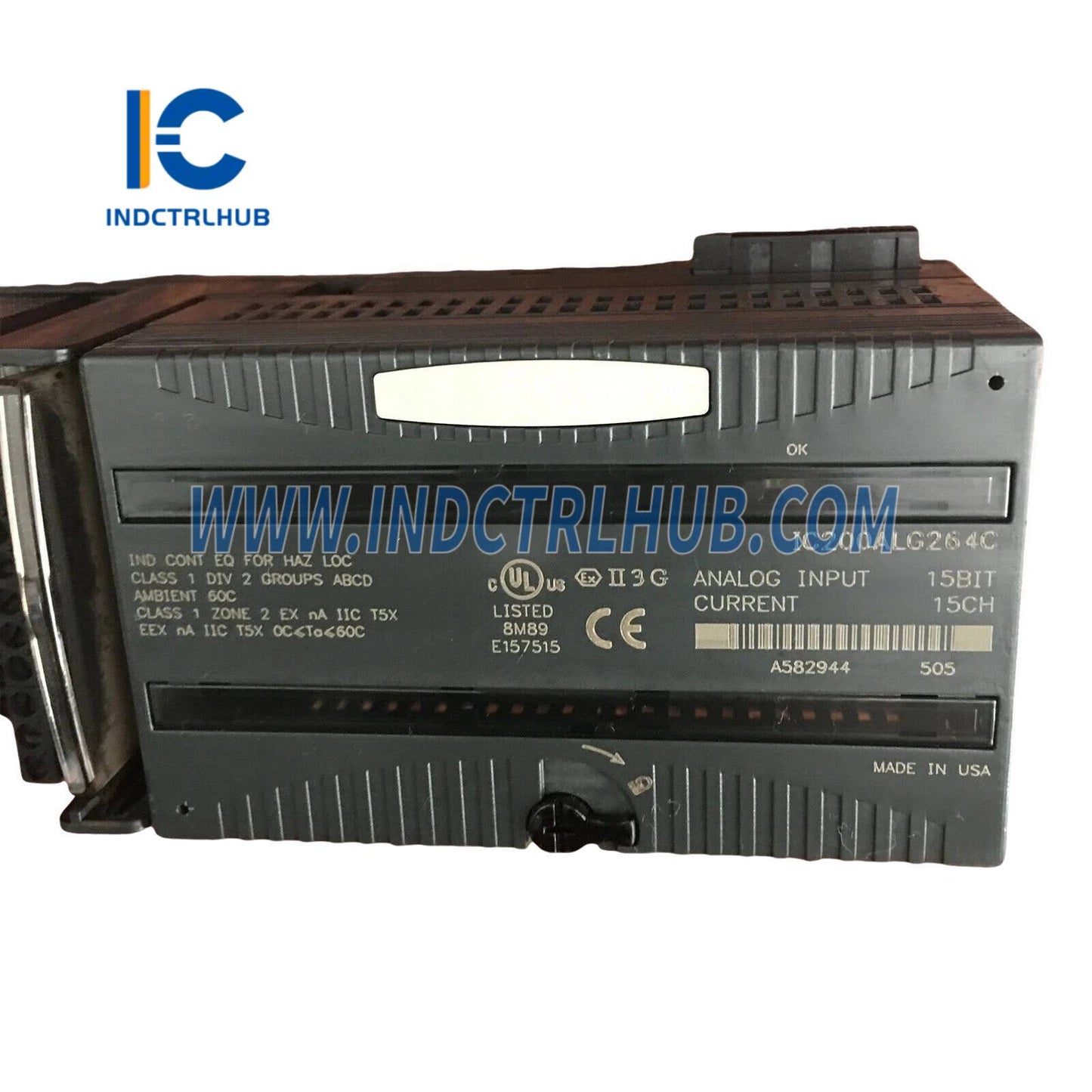

GE IC200ALG264CAJ
GE IC200ALG264CAJ
Manufacturer: General Electric
Product No.: IC200ALG264CAJ
Condition:1000 na skladištu
Product Type: VersaMax 15-Channel Analog Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Podrška 24/7
- Povraćaj u roku od 30 dana
- Brza dostava
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG264CAJ |
| Product Name | VersaMax 15-Channel Analog Input Module |
| Application | Analog signal acquisition for industrial automation and process control systems, suitable for monitoring process variables like pressure, flow, and level |
| Compatibility | VersaMax PLC system; integrates with VersaMax CPUs, power supplies, and communication modules via backplane |
| Function | Provides 15 single-ended analog inputs for high-density data collection, with configurable voltage or current ranges |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 15 (single-ended, one group) |
| Input Type | Voltage or current inputs (configurable per channel) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of span |
| Input Ranges | Voltage: ±10 V, 0-10 V; Current: 4-20 mA, 0-20 mA |
| Update Rate | 7.5 ms per channel (112.5 ms full scan) |
| Supply Voltage | Backplane-powered (5 V DC, no external supply required) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Isolation | None (non-isolated) |
| Dimensions | Standard VersaMax module size (approximate: 90 mm x 50 mm x 75 mm) |
| Weight | Approximately 0.2 kg |
| Certifications | CE marked; UL, cUL, CSA compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG264CAJ (15-channel, 12-bit, non-isolated analog input module) |
| Available Options | Variants for isolated inputs (e.g., IC200ALG264) or HART-enabled versions |
| Customization | Fieldbus integration or extended temperature range available upon request |
Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG264CAJ |
| Product Name | VersaMax 15-Channel Analog Input Module |
| Application | Analog signal acquisition for industrial automation and process control systems, suitable for monitoring process variables like pressure, flow, and level |
| Compatibility | VersaMax PLC system; integrates with VersaMax CPUs, power supplies, and communication modules via backplane |
| Function | Provides 15 single-ended analog inputs for high-density data collection, with configurable voltage or current ranges |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 15 (single-ended, one group) |
| Input Type | Voltage or current inputs (configurable per channel) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of span |
| Input Ranges | Voltage: ±10 V, 0-10 V; Current: 4-20 mA, 0-20 mA |
| Update Rate | 7.5 ms per channel (112.5 ms full scan) |
| Supply Voltage | Backplane-powered (5 V DC, no external supply required) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Isolation | None (non-isolated) |
| Dimensions | Standard VersaMax module size (approximate: 90 mm x 50 mm x 75 mm) |
| Weight | Approximately 0.2 kg |
| Certifications | CE marked; UL, cUL, CSA compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG264CAJ (15-channel, 12-bit, non-isolated analog input module) |
| Available Options | Variants for isolated inputs (e.g., IC200ALG264) or HART-enabled versions |
| Customization | Fieldbus integration or extended temperature range available upon request |
