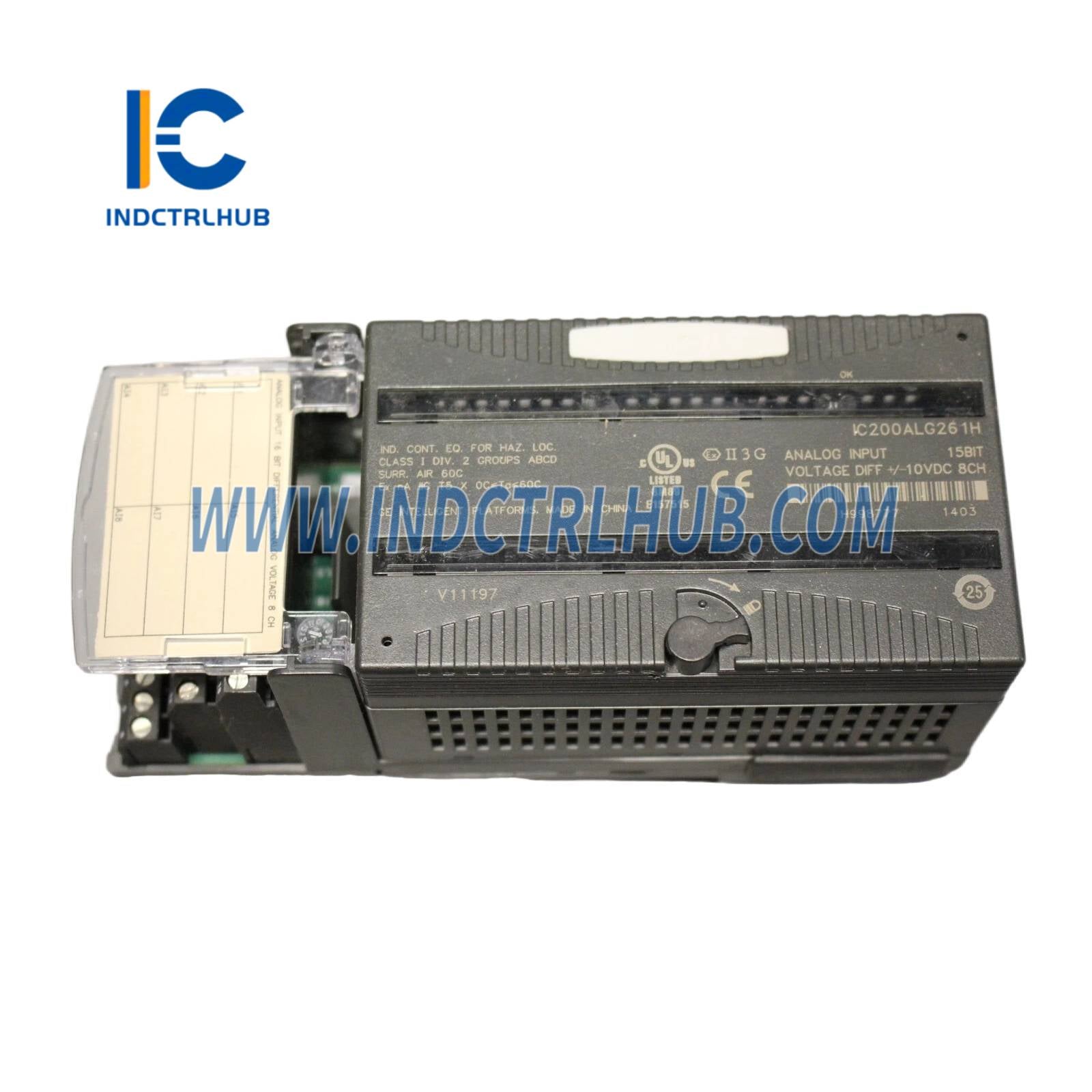

GE IC200ALG261D
GE IC200ALG261D
Manufacturer: General Electric
Product No.: IC200ALG261D
Condition:1000 na skladištu
Product Type: VersaMax 8-Channel Analog Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Podrška 24/7
- Povraćaj u roku od 30 dana
- Brza dostava
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG261D |
| Product Name | VersaMax 8-Channel Analog Input Module |
| Application | Analog signal acquisition for industrial automation and process control systems, suitable for monitoring process variables like pressure, flow, and level |
| Compatibility | VersaMax PLC system; integrates with VersaMax CPUs, power supplies, and communication modules via backplane |
| Function | Provides 8 isolated analog inputs with HART communication support for precise data collection and device diagnostics |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 8 |
| Input Type | 4-20 mA current inputs, isolated |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Communication Protocol | HART (Highway Addressable Remote Transducer) supported |
| Update Rate | 5 ms per channel |
| Supply Voltage | 24 V DC (backplane-powered, no external supply required) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Isolation | 250 V working voltage between channels and backplane |
| Dimensions | Standard VersaMax module size (approximate: 90 mm x 50 mm x 75 mm) |
| Weight | Approximately 0.2 kg |
| Certifications | CE marked; UL, cUL, CSA compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG261D (8-channel, 16-bit, HART-enabled analog input module) |
| Available Options | Variants for voltage inputs (e.g., IC200ALG260D) or non-HART versions |
| Customization | Fieldbus integration or extended temperature range available upon request |
