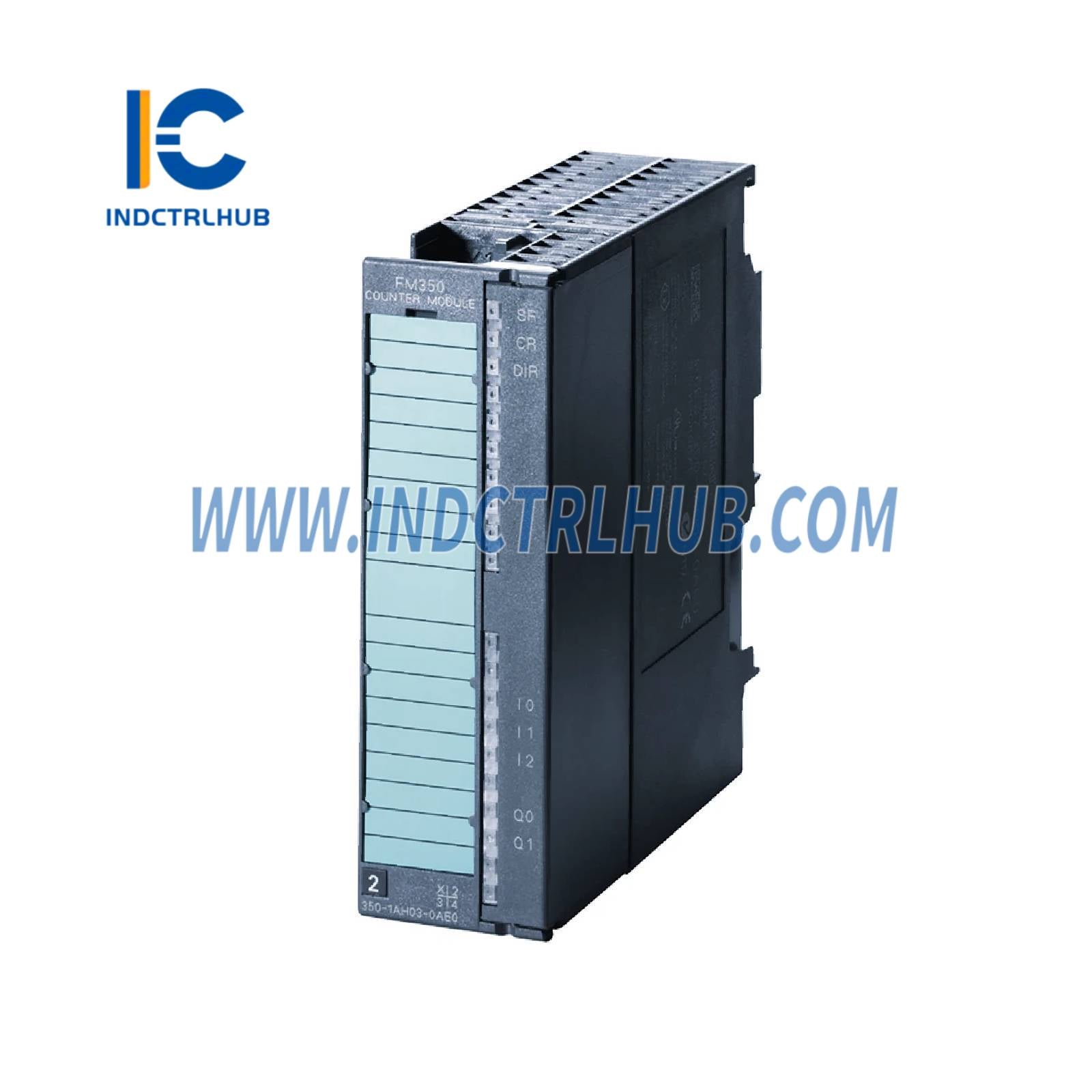

Siemens 6ES7350-1AH03-0AE0 SIMATIC S7-300 FM 350-1 Counter Module
Siemens 6ES7350-1AH03-0AE0 SIMATIC S7-300 FM 350-1 Counter Module
Manufacturer: Siemens
Product No.: 6ES7350-1AH03-0AE0
Condition:1000 skladom
Product Type: SIMATIC S7-300 FM 350-1 Counter Module
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Podpora
- 30-dňové vrátenie tovaru
- Rýchle doručenie
Ready-to-Rack Summary
- Part Number: 6ES7350-1AH03-0AE0 (1-Channel High-Speed Counter, 500 kHz)
- Condition: Factory New Sealed in Original Siemens Packaging
- Warranty: 24 months (with full 500 kHz pulse & encoder test certificate)
- Availability: 24-hour worldwide dispatch from EU/US stock
- Channels: 1 × 500 kHz counter (A/B/N 24 V or 5 V differential, SSI, incremental, pulse+direction)
The Fastest Single-Channel Counter for S7-300 in 2025
Still the number-one choice when you need precise, high-speed counting of encoders, proximity sensors, flow meters, or dosing pumps directly in the PLC rack – no external counter required. Plants keep it in stock because:
- True 500 kHz input frequency (4× evaluation) for high-resolution encoders
- Integrated digital outputs (2 × 24 V / 0.5 A) for limit values & hysteresis
- Direct SSI absolute encoder support up to 32 bit
- Full STEP 7 V5.7 and TIA Portal 18 integration with ready-made function blocks
Failure Symptoms Triggering Immediate Replacement
Maintenance teams order this exact card when:
- “FM 350-1 fault LED red” or counter value freezes
- Diagnostic buffer “overflow” or “input frequency too high”
- High-speed encoder no longer counts above 200 kHz
- Digital outputs stop switching at comparison values
Real-World Deployments 2024–2025
- Filling Lines: Krones & KHS – high-speed bottle counting & dosing
- Conveyor Systems: SSI Schäfer & Dematic – length measurement with incremental encoder
- Test Benches: Automotive & aerospace – crankshaft & camshaft position
Technical Data Table
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens SIMATIC S7-300 |
| Catalog Number | 6ES7350-1AH03-0AE0 |
| Channels | 1 counter, 500 kHz (24 V or RS422/5 V) |
| Input Types | Incremental A/B/N, pulse+direction, SSI (up to 2 MHz clock) |
| Digital Outputs | 2 × 24 V DC / 0.5 A (load or control) |
| Comparison Values | 4 configurable with hysteresis |
| Gate/Control | Software & hardware gate |
| Power Loss | 5.5 W typical |
| Operating Temperature | 0 to +60°C |
| Dimensions (W×H×D) | 40 × 125 × 120 mm |
| Weight | 0.28 kg |
| Front Connector | 20-pin (6ES7392-1AJ00-0AA0) |
Compatibility
- Direct replacement for 6ES7350-1AH02-0AE0 and all AH revisions
- Works with all S7-300 CPUs (including F versions)
Product Description
Ready-to-Rack Summary
- Part Number: 6ES7350-1AH03-0AE0 (1-Channel High-Speed Counter, 500 kHz)
- Condition: Factory New Sealed in Original Siemens Packaging
- Warranty: 24 months (with full 500 kHz pulse & encoder test certificate)
- Availability: 24-hour worldwide dispatch from EU/US stock
- Channels: 1 × 500 kHz counter (A/B/N 24 V or 5 V differential, SSI, incremental, pulse+direction)
The Fastest Single-Channel Counter for S7-300 in 2025
Still the number-one choice when you need precise, high-speed counting of encoders, proximity sensors, flow meters, or dosing pumps directly in the PLC rack – no external counter required. Plants keep it in stock because:
- True 500 kHz input frequency (4× evaluation) for high-resolution encoders
- Integrated digital outputs (2 × 24 V / 0.5 A) for limit values & hysteresis
- Direct SSI absolute encoder support up to 32 bit
- Full STEP 7 V5.7 and TIA Portal 18 integration with ready-made function blocks
Failure Symptoms Triggering Immediate Replacement
Maintenance teams order this exact card when:
- “FM 350-1 fault LED red” or counter value freezes
- Diagnostic buffer “overflow” or “input frequency too high”
- High-speed encoder no longer counts above 200 kHz
- Digital outputs stop switching at comparison values
Real-World Deployments 2024–2025
- Filling Lines: Krones & KHS – high-speed bottle counting & dosing
- Conveyor Systems: SSI Schäfer & Dematic – length measurement with incremental encoder
- Test Benches: Automotive & aerospace – crankshaft & camshaft position
Technical Data Table
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens SIMATIC S7-300 |
| Catalog Number | 6ES7350-1AH03-0AE0 |
| Channels | 1 counter, 500 kHz (24 V or RS422/5 V) |
| Input Types | Incremental A/B/N, pulse+direction, SSI (up to 2 MHz clock) |
| Digital Outputs | 2 × 24 V DC / 0.5 A (load or control) |
| Comparison Values | 4 configurable with hysteresis |
| Gate/Control | Software & hardware gate |
| Power Loss | 5.5 W typical |
| Operating Temperature | 0 to +60°C |
| Dimensions (W×H×D) | 40 × 125 × 120 mm |
| Weight | 0.28 kg |
| Front Connector | 20-pin (6ES7392-1AJ00-0AA0) |
Compatibility
- Direct replacement for 6ES7350-1AH02-0AE0 and all AH revisions
- Works with all S7-300 CPUs (including F versions)
