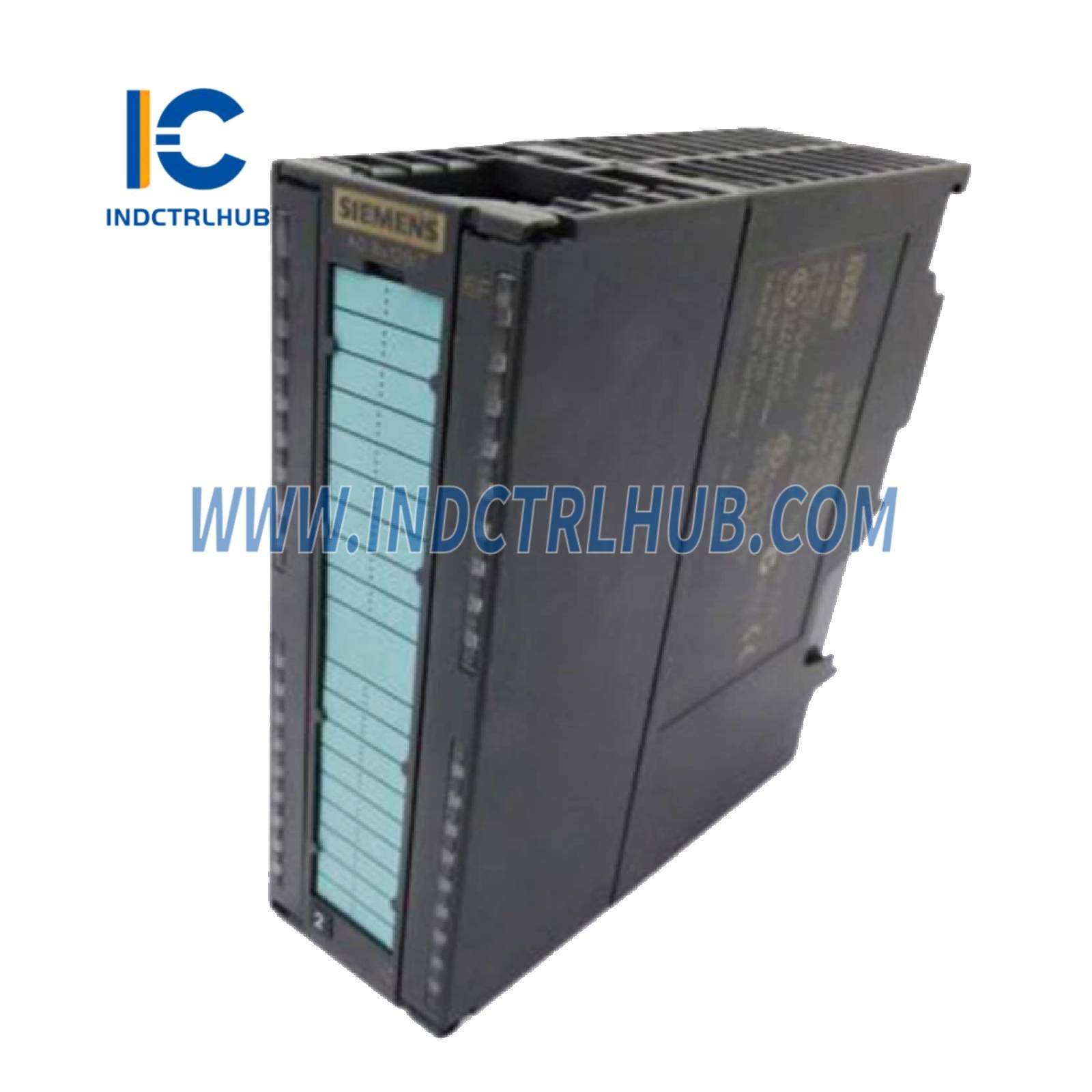

Siemens 6ES7332-5HF00-0AB0
Siemens 6ES7332-5HF00-0AB0
Manufacturer: Siemens
Product No.: 6ES7332-5HF00-0AB0
Condition:Қорда 1000 бар
Product Type: Analog Output Module
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Қолдау
- 30 Күндік Қайтарулар
- Жылдам жеткізу
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7332-5HF00-0AB0 |
| Description | Analog Output Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7332-5HF00-0AB0 |
| Product Name | SM 332 Analog Output Module |
| Application | Analog signal output for industrial automation and process control in SIMATIC S7-300 PLC systems |
| Compatibility | Integrates with Siemens SIMATIC S7-300 PLC systems; supports backplane bus communication |
| Function | Provides 8 isolated analog outputs for voltage or current signals, supporting control of actuators and field devices |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 8 isolated outputs |
| Output Types | Voltage: 0-10 V; Current: 0-20 mA or 4-20 mA (configurable) |
| Resolution | 11 bits (voltage), 12 bits (current) |
| Accuracy | ±0.3% of full scale |
| Update Rate | 2.5 ms (typical) |
| Load Resistance | Up to 750 Ω (current), 1 mA min load (voltage) |
| Isolation | 75 V (channel-to-channel), 500 V (backplane) |
| Power Supply | 5 V DC / 120 mA, 24 V DC / 100 mA (external) |
| Power Consumption | 0.6 W (5 V), 2.4 W (24 V) |
| Operating Temperature Range | 0 to 60°C |
| Dimensions | 40 mm x 125 mm x 117 mm (W x H x D) |
| Weight | 0.22 kg |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
