Product Description
Ikhtisar Produk

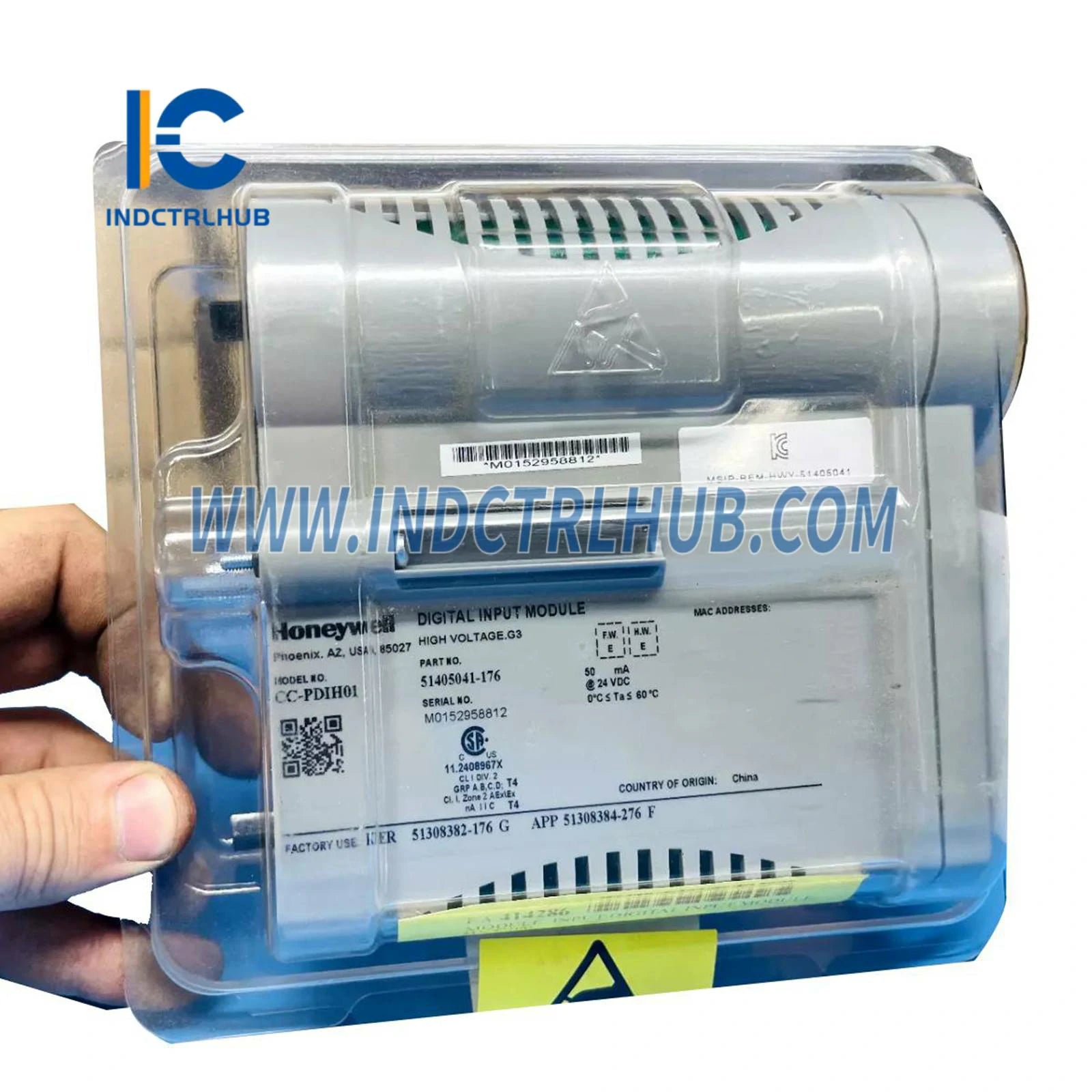

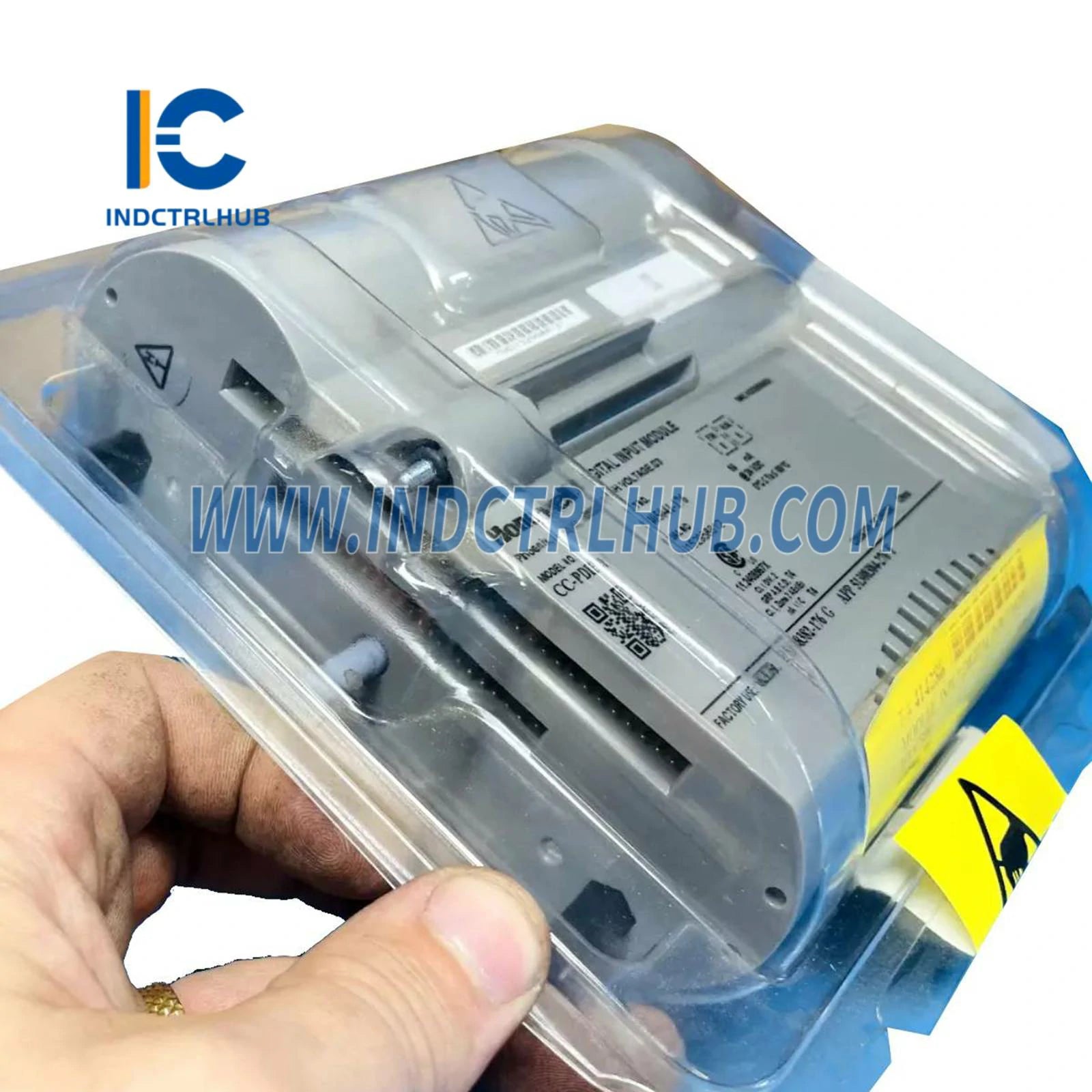

Produsen: Honeywell

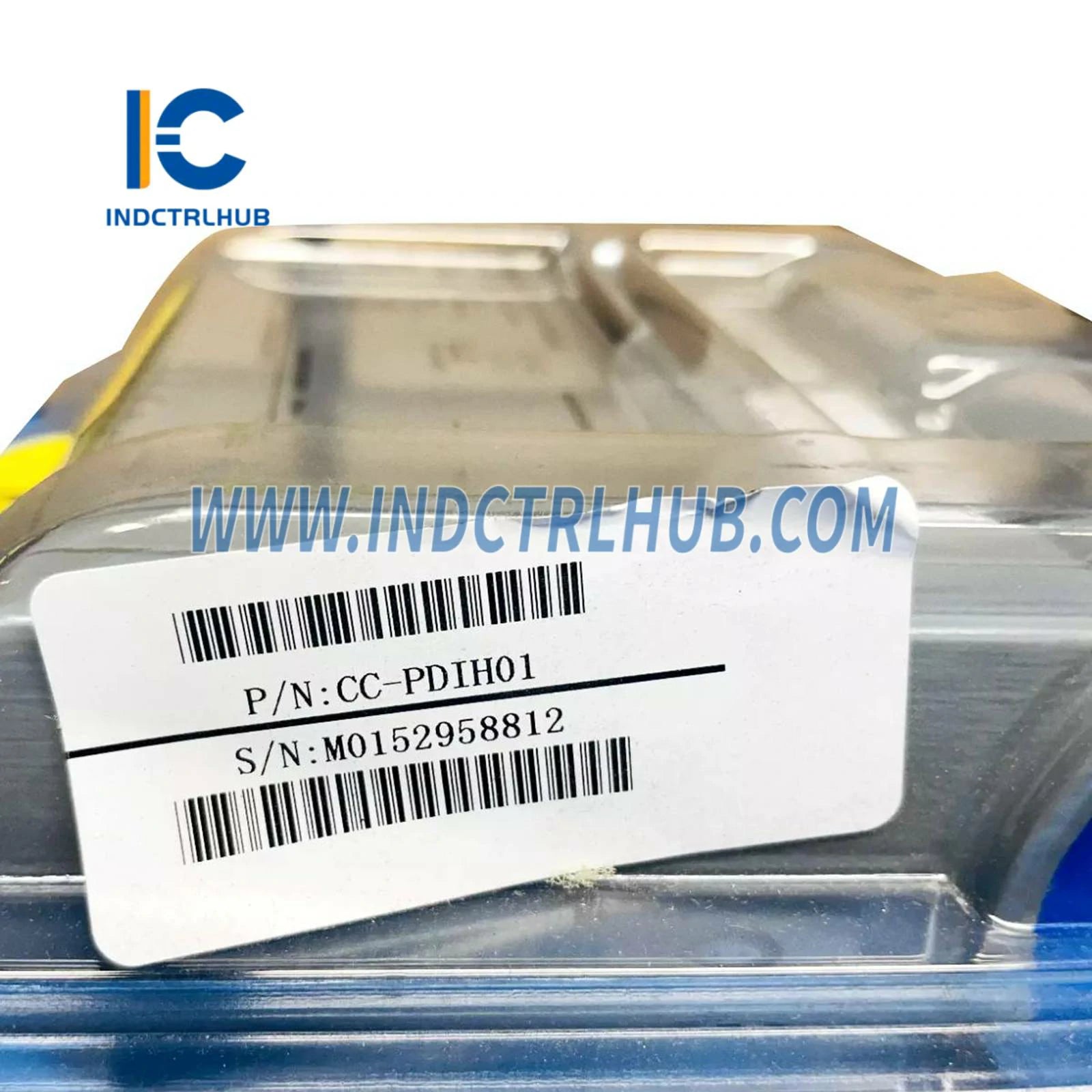

Model/Nomor Bagian: CC-PDIH01
Deskripsi: Modul Input Digital Tegangan Tinggi
Fitur & Spesifikasi Utama
Informasi Umum
- Saluran Input: 32
-
Isolasi Galvanik (Lapangan ke Logika Umum):
- 1500 VAC RMS atau ±1500 VDC
- Teknik Isolasi: Optik
Kompatibilitas & Spesifikasi IOTA
| Model IOTA | Tipe | Tegangan Nominal | Rentang Daya Input Digital | Arus Indera (Kondisi ON) Min | Arus Indera (Kondisi OFF) Maks | Tegangan Pick-Up Min | Tegangan Drop-Out Maks | Delay Absolut Maks | Rentang Frekuensi |
|---|---|---|---|---|---|---|---|---|---|
| CC-TDI151 | Non-Redundan 12" | 120 VAC (PROX) | 90-132 V AC RMS | 7.5 mA RMS @ 90V | 2.0 mA RMS | 90 VAC RMS | 20 VAC RMS | 25 ms | 47-63 Hz |
| CC-TDI110 | Non-Redundan 9" | 120 VAC | 90-132 V AC RMS | 1.0 mA | 0.32 mA | 90 VAC RMS | 25 VAC RMS | 25 ms | 47-63 Hz |
| CC-TDI120 | Redundan 12" | 120 VAC | 90-132 V AC RMS | 1.0 mA | 0.32 mA | 90 VAC RMS | 25 VAC RMS | 25 ms | 47-63 Hz |
| CC-TDI220 | Non-Redundan 9" | 125 VDC | 100-138 V DC | 1.2 mA | 0.32 mA | 100 VDC | 25 VDC | 10 ms | Tidak Ada |
| CC-TDI230 | Redundan 12" | 240 VAC | 180-264 V AC RMS | 1.11 mA RMS | 0.32 mA RMS | 180 VAC RMS | 50 VAC RMS | 25 ms | 47-63 Hz |
