Siemens 6ES7214-1BG40-0XB0
Siemens 6ES7214-1BG40-0XB0
Manufacturer: Siemens
Product No.: 6ES7214-1BG40-0XB0
Condition:Br. dostupnih komada: 1000

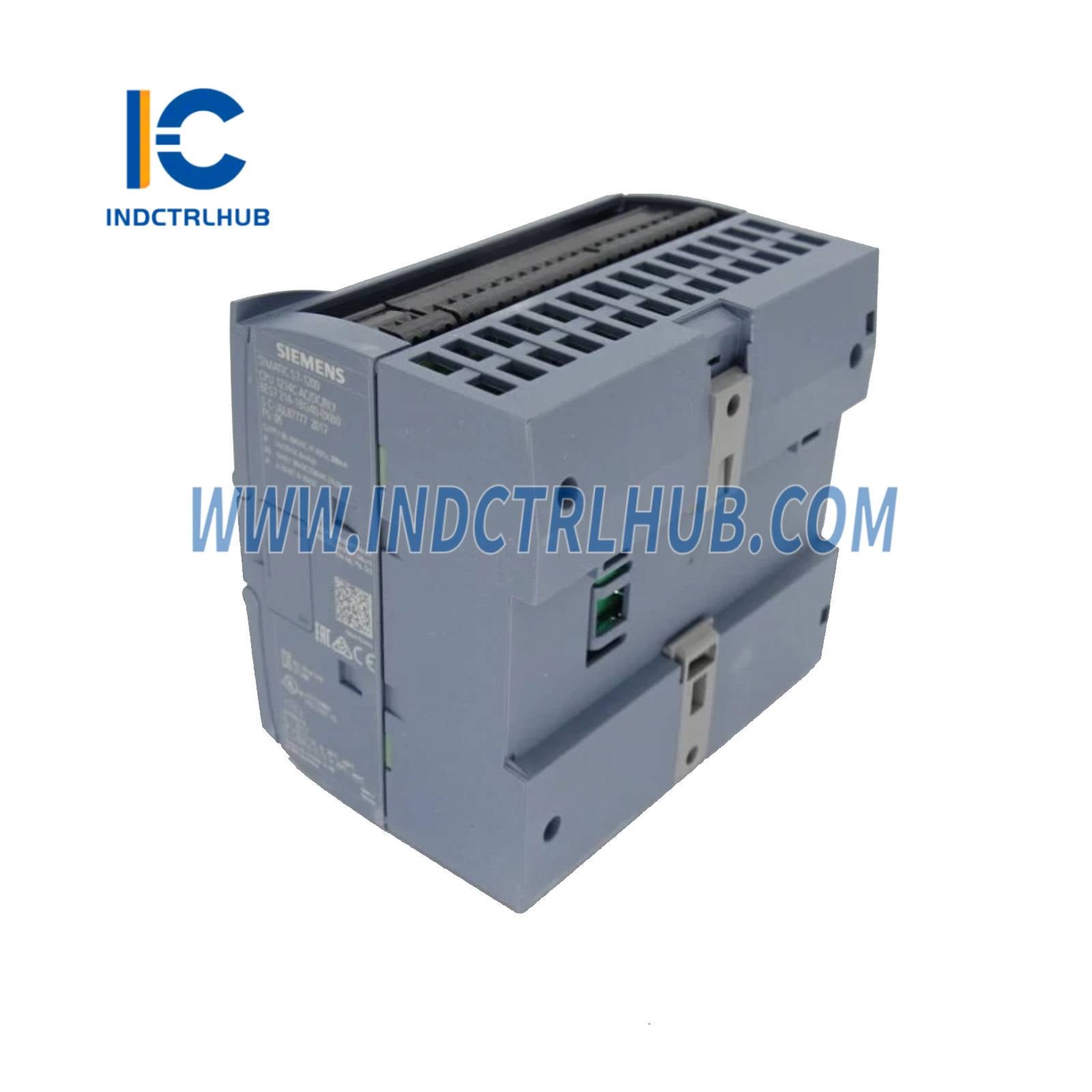

Product Type: SIMATIC S7-1200 CPU 1214C DC/DC/RLY
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Podrška 24/7
- Povrat u roku od 30 dana
- Brza dostava
6ES7214-1BG40-0XB0 Parameters
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7214-1BG40-0XB0 |
| Description | SIMATIC S7-1200 CPU 1214C DC/DC/RLY, 14 DI 24 V DC, 10 DO Relay 2 A, 2 AI 0_10 V DC, 6 High-Speed Counters, Expandable |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7214-1BG40-0XB0 |
| Product Name | SIMATIC S7-1200 CPU 1214C |
| Application | Compact, powerful PLC for small to medium automation tasks in machine building, HVAC, packaging, and process control |
| Compatibility | - TIA Portal V18+ - Expandable with up to 8 signal modules (SM) + 3 communication modules (CM) - PROFINET, PROFIBUS, Modbus TCP/RTU, EtherNet/IP, OPC UA |
| Function | Executes LAD, FBD, SCL; supports motion control (PTO/PWM), PID, high-speed counting, data logging, web server, security (Know-how protection, password) |
Functional Specifications
| Parameter | Details |
|---|---|
| Processor | 32-bit RISC, 150 MHz |
| Memory | - 100 KB work memory (integrated) - 4 MB load memory (onboard) - 10 KB retentive - SD card up to 2 GB (for program transfer, data log, firmware) |
| Scan Time | 0.08 µs per instruction (typical) |
| Programming Languages | Ladder (LAD), Function Block (FBD), Structured Control Language (SCL) |
| Digital I/O (Built-in) | - 14 DI 24 V DC (sink/source, IEC Type 1) - 10 DO Relay (2 A, 30 W DC / 250 V AC, 5_30 V DC / 5_250 V AC) |
| Analog Inputs (Built-in) | 2 AI 0_10 V DC, 10-bit resolution |
| High-Speed Counters | 6 _ 100 kHz (single-phase), 4 _ 80 kHz (A/B phase) |
| Pulse Outputs (PTO/PWM) | 4 _ 100 kHz (PTO for motion, PWM for analog simulation) |
| Communication Ports | - 1 _ PROFINET (2-port switch, RJ45, 10/100 Mbps) - RS-485 optional via CM 1241 |
| Expansion | - 8 SM (max 256 DI/DO, 64 AI/AO) - 3 CM/CP (PROFIBUS, AS-i, IO-Link, etc.) |
| Real-Time Clock | Yes (±5 s/day), battery-backed |
| Battery | Optional S7-1200 Battery Board (6ES7297-0AX30-0XA0) |
| Data Logging | Up to 1 MB CSV on SD card (cycle-triggered or event) |
| Web Server | Built-in (view I/O, diagnostics, data logs via browser) |
| Security | - Know-how protection - Copy protection - Password (4 levels) - IP/MAC filtering |
| LED Indicators | - RUN/STOP (green/yellow) - ERROR (red) - MAINT (yellow) - LINK/ACT (green/yellow) - DI/DO (green) |
| Configuration | TIA Portal V18+, web browser, SD card |
Electrical Specifications
| Parameter | Details |
|---|---|
| Power Supply | 20.4_28.8 V DC (nominal 24 V) |
| Power Consumption | 12 W (CPU only), +1.5 W per SM |
| Inrush Current | 12 A @ 28.8 V (max 1 ms) |
| Isolation | 1500 V AC (field to logic), 500 V AC (DI to DO) |
| Input Voltage ON | > 15 V DC |
| Input Voltage OFF | < 5 V DC |
| Input Current | 4 mA @ 24 V DC |
| Relay Output Rating | 2 A resistive, 30 W DC / 250 V AC, 2000 VA |
Mechanical Specifications
| Parameter | Details |
|---|---|
| Dimensions (W x H x D) | 110 mm _ 100 mm _ 75 mm |
| Weight | 0.43 kg |
| Housing | Rugged plastic (PPO), conformal coated |
| Mounting | 35 mm DIN rail (EN 60715) or panel mount |
Product Description
6ES7214-1BG40-0XB0 Parameters
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7214-1BG40-0XB0 |
| Description | SIMATIC S7-1200 CPU 1214C DC/DC/RLY, 14 DI 24 V DC, 10 DO Relay 2 A, 2 AI 0_10 V DC, 6 High-Speed Counters, Expandable |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7214-1BG40-0XB0 |
| Product Name | SIMATIC S7-1200 CPU 1214C |
| Application | Compact, powerful PLC for small to medium automation tasks in machine building, HVAC, packaging, and process control |
| Compatibility | - TIA Portal V18+ - Expandable with up to 8 signal modules (SM) + 3 communication modules (CM) - PROFINET, PROFIBUS, Modbus TCP/RTU, EtherNet/IP, OPC UA |
| Function | Executes LAD, FBD, SCL; supports motion control (PTO/PWM), PID, high-speed counting, data logging, web server, security (Know-how protection, password) |
Functional Specifications
| Parameter | Details |
|---|---|
| Processor | 32-bit RISC, 150 MHz |
| Memory | - 100 KB work memory (integrated) - 4 MB load memory (onboard) - 10 KB retentive - SD card up to 2 GB (for program transfer, data log, firmware) |
| Scan Time | 0.08 µs per instruction (typical) |
| Programming Languages | Ladder (LAD), Function Block (FBD), Structured Control Language (SCL) |
| Digital I/O (Built-in) | - 14 DI 24 V DC (sink/source, IEC Type 1) - 10 DO Relay (2 A, 30 W DC / 250 V AC, 5_30 V DC / 5_250 V AC) |
| Analog Inputs (Built-in) | 2 AI 0_10 V DC, 10-bit resolution |
| High-Speed Counters | 6 _ 100 kHz (single-phase), 4 _ 80 kHz (A/B phase) |
| Pulse Outputs (PTO/PWM) | 4 _ 100 kHz (PTO for motion, PWM for analog simulation) |
| Communication Ports | - 1 _ PROFINET (2-port switch, RJ45, 10/100 Mbps) - RS-485 optional via CM 1241 |
| Expansion | - 8 SM (max 256 DI/DO, 64 AI/AO) - 3 CM/CP (PROFIBUS, AS-i, IO-Link, etc.) |
| Real-Time Clock | Yes (±5 s/day), battery-backed |
| Battery | Optional S7-1200 Battery Board (6ES7297-0AX30-0XA0) |
| Data Logging | Up to 1 MB CSV on SD card (cycle-triggered or event) |
| Web Server | Built-in (view I/O, diagnostics, data logs via browser) |
| Security | - Know-how protection - Copy protection - Password (4 levels) - IP/MAC filtering |
| LED Indicators | - RUN/STOP (green/yellow) - ERROR (red) - MAINT (yellow) - LINK/ACT (green/yellow) - DI/DO (green) |
| Configuration | TIA Portal V18+, web browser, SD card |
Electrical Specifications
| Parameter | Details |
|---|---|
| Power Supply | 20.4_28.8 V DC (nominal 24 V) |
| Power Consumption | 12 W (CPU only), +1.5 W per SM |
| Inrush Current | 12 A @ 28.8 V (max 1 ms) |
| Isolation | 1500 V AC (field to logic), 500 V AC (DI to DO) |
| Input Voltage ON | > 15 V DC |
| Input Voltage OFF | < 5 V DC |
| Input Current | 4 mA @ 24 V DC |
| Relay Output Rating | 2 A resistive, 30 W DC / 250 V AC, 2000 VA |
Mechanical Specifications
| Parameter | Details |
|---|---|
| Dimensions (W x H x D) | 110 mm _ 100 mm _ 75 mm |
| Weight | 0.43 kg |
| Housing | Rugged plastic (PPO), conformal coated |
| Mounting | 35 mm DIN rail (EN 60715) or panel mount |
