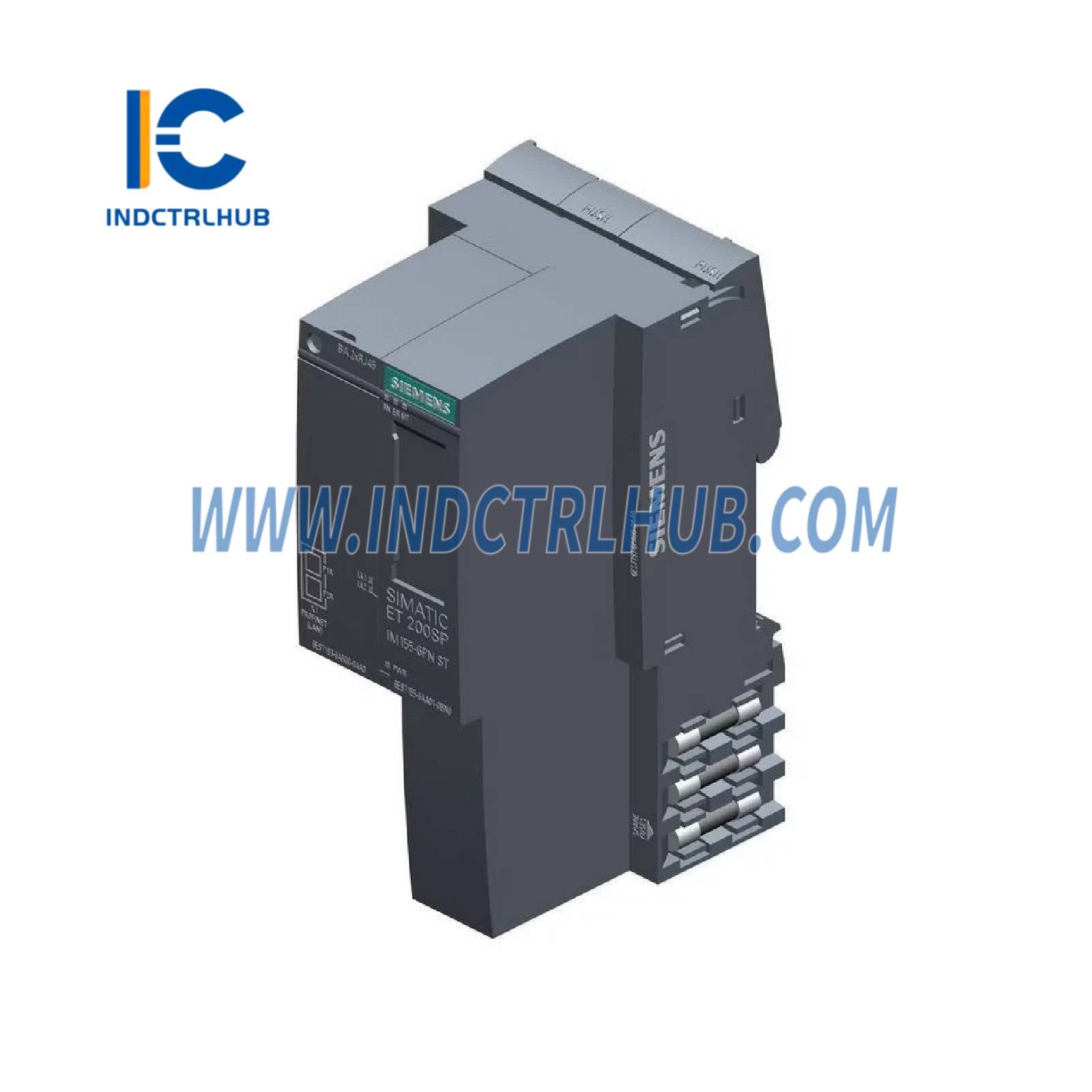

Siemens 6ES7155-6AA01-0BN0
Siemens 6ES7155-6AA01-0BN0
Manufacturer: Siemens
Product No.: 6ES7155-6AA01-0BN0
Condition:Br. dostupnih komada: 1000
Product Type: SIMATIC ET 200SP PROFINET Bundle Interface Module
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Podrška 24/7
- Povrat u roku od 30 dana
- Brza dostava
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7155-6AA01-0BN0 |
| Description | SIMATIC ET 200SP PROFINET Bundle Interface Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7155-6AA01-0BN0 |
| Product Name | SIMATIC ET 200SP IM 155-6PN ST Bundle |
| Application | Distributed I/O system interface for industrial automation and process control in harsh environments |
| Compatibility | SIMATIC ET 200SP, S7-1500; supports up to 32 I/O modules and 16 ET 200AL modules |
| Function | PROFINET interface module with hot swap capability, enabling scalable I/O expansion and real-time communication |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | PROFINET interface module bundle (IM 155-6PN ST) |
| Communication Protocol | PROFINET IO RT/IRT, TCP/IP, supports PROFIsafe |
| Ports | 2x RJ45 Ethernet (10/100 Mbps) |
| I/O Expansion | Max. 32 I/O modules + 16 ET 200AL modules |
| Hot Swap | Single hot swap supported |
| Power Supply | 20.4-28.8 V DC |
| Power Consumption | 1.4 W (typical) |
| Operating Temperature Range | 0 to 60°C (horizontal), 0 to 50°C (vertical) |
| Dimensions | 35 mm x 142 mm x 75 mm (W x H x D) |
| Weight | 0.21 kg |
| Mounting | SIMATIC ET 200SP system |
| Protection Rating | IP20 |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7155-6AA01-0BN0 |
| Description | SIMATIC ET 200SP PROFINET Bundle Interface Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7155-6AA01-0BN0 |
| Product Name | SIMATIC ET 200SP IM 155-6PN ST Bundle |
| Application | Distributed I/O system interface for industrial automation and process control in harsh environments |
| Compatibility | SIMATIC ET 200SP, S7-1500; supports up to 32 I/O modules and 16 ET 200AL modules |
| Function | PROFINET interface module with hot swap capability, enabling scalable I/O expansion and real-time communication |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | PROFINET interface module bundle (IM 155-6PN ST) |
| Communication Protocol | PROFINET IO RT/IRT, TCP/IP, supports PROFIsafe |
| Ports | 2x RJ45 Ethernet (10/100 Mbps) |
| I/O Expansion | Max. 32 I/O modules + 16 ET 200AL modules |
| Hot Swap | Single hot swap supported |
| Power Supply | 20.4-28.8 V DC |
| Power Consumption | 1.4 W (typical) |
| Operating Temperature Range | 0 to 60°C (horizontal), 0 to 50°C (vertical) |
| Dimensions | 35 mm x 142 mm x 75 mm (W x H x D) |
| Weight | 0.21 kg |
| Mounting | SIMATIC ET 200SP system |
| Protection Rating | IP20 |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
