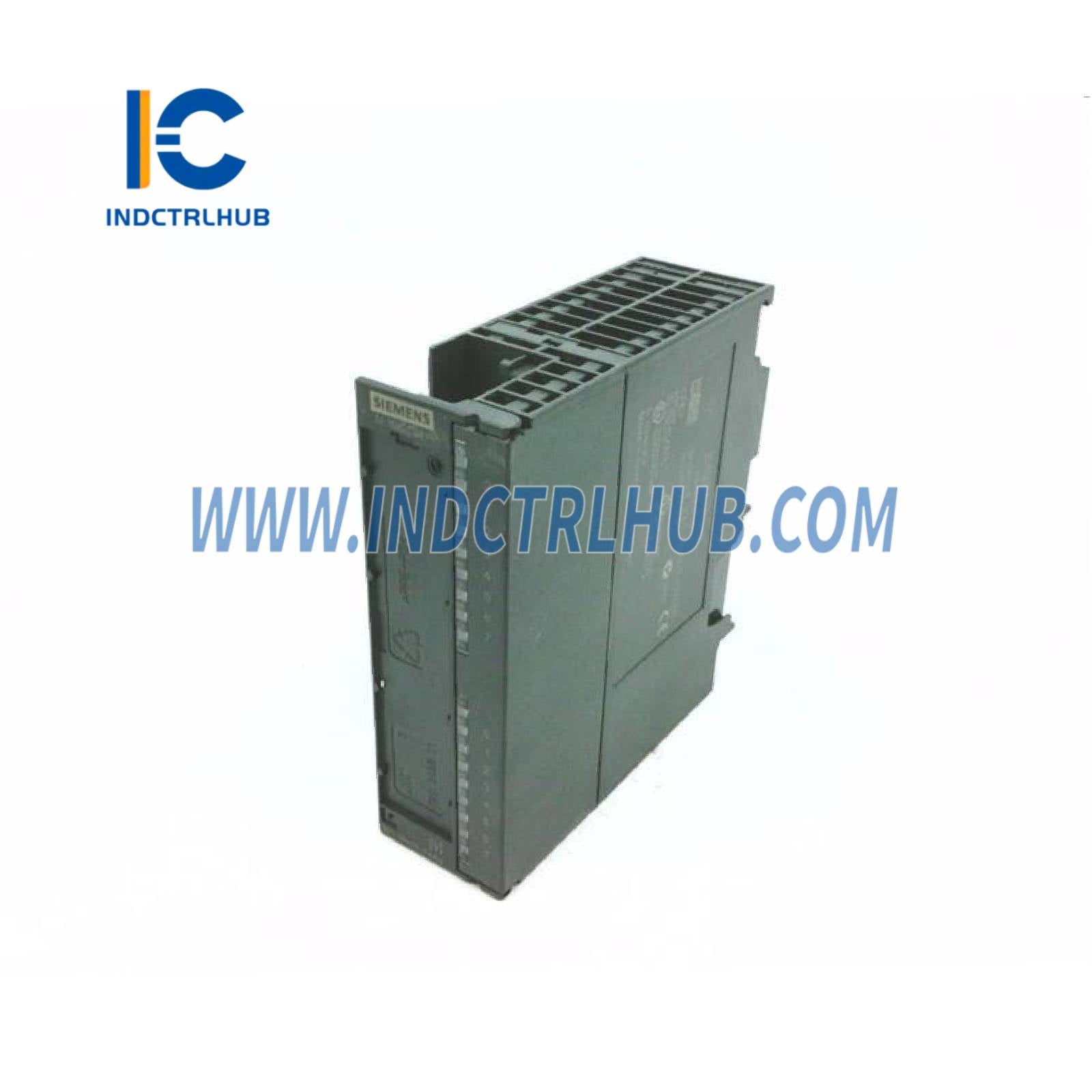

| Input Channels |
16 digital inputs (single-ended, optically isolated) |
| Input Type |
24 V DC, IEC 61131-2 Type 1 (sink or source) |
| Rated Voltage |
24 V DC (20.4_28.8 V) |
| Logic 1 (min) |
13 V DC |
| Logic 0 (max) |
5 V DC |
| Input Current |
7 mA typical @ 24 V |
| Input Delay |
Configurable: 0.5, 1, 3, 5, 10, 20, 50, 100 ms (default 3 ms) |
| Cable Length |
1000 m (shielded), 600 m (unshielded) |
| Isolation |
500 V DC input-to-backplane; no channel-to-channel isolation
|
| Common Mode Voltage |
±35 V max |
| Diagnostics |
Module fault, short-circuit to ground, wire break, input signal error, per-channel LED, process alarm
|
| Address Space |
2 bytes (16 inputs) |
| Power Supply |
From S7-300 backplane (5 V DC) |
| Backplane Current |
100 mA @ 5 V DC |
| Power Loss |
4.0 W typical |
| LED Indicators |
- 0_15 (green): Input state - SF (red): System fault - DIAG (yellow): Diagnostic active |
| Configuration |
STEP 7 V5.6+ or TIA Portal V13+; per-channel filter, diagnostics, alarm enable |
| Connection |
Front 20-pin screw terminal (6ES7392-1AJ00-0AA0) |
| Wire Size |
0.2_1.5 mm² (24_16 AWG) |
| Operating Temperature Range |
-25°C to +60°C (extended) |
| Storage Temperature Range |
-40°C to +70°C |
| Humidity |
5% to 95% non-condensing |
| Vibration |
IEC 60068-2-6 (2g, 10_150 Hz) |
| Shock |
IEC 60068-2-27 (15g, 11 ms) |
| Mounting |
Snaps onto S7-300 rail
|
| Dimensions (W x H x D) |
40 mm _ 125 mm _ 120 mm |
| Weight |
0.23 kg |
| Enclosure Rating |
IP20 |
| Certifications |
CE, UL, cUL, FM Class I Div 2, ATEX Zone 2, China RoHS, EAC, IEC 61000-6-2 (enhanced EMC)
|
