Siemens 6ES7193-6BP20-0BA0
Siemens 6ES7193-6BP20-0BA0
Manufacturer: Siemens
Product No.: 6ES7193-6BP20-0BA0
Condition:1000 במלאי

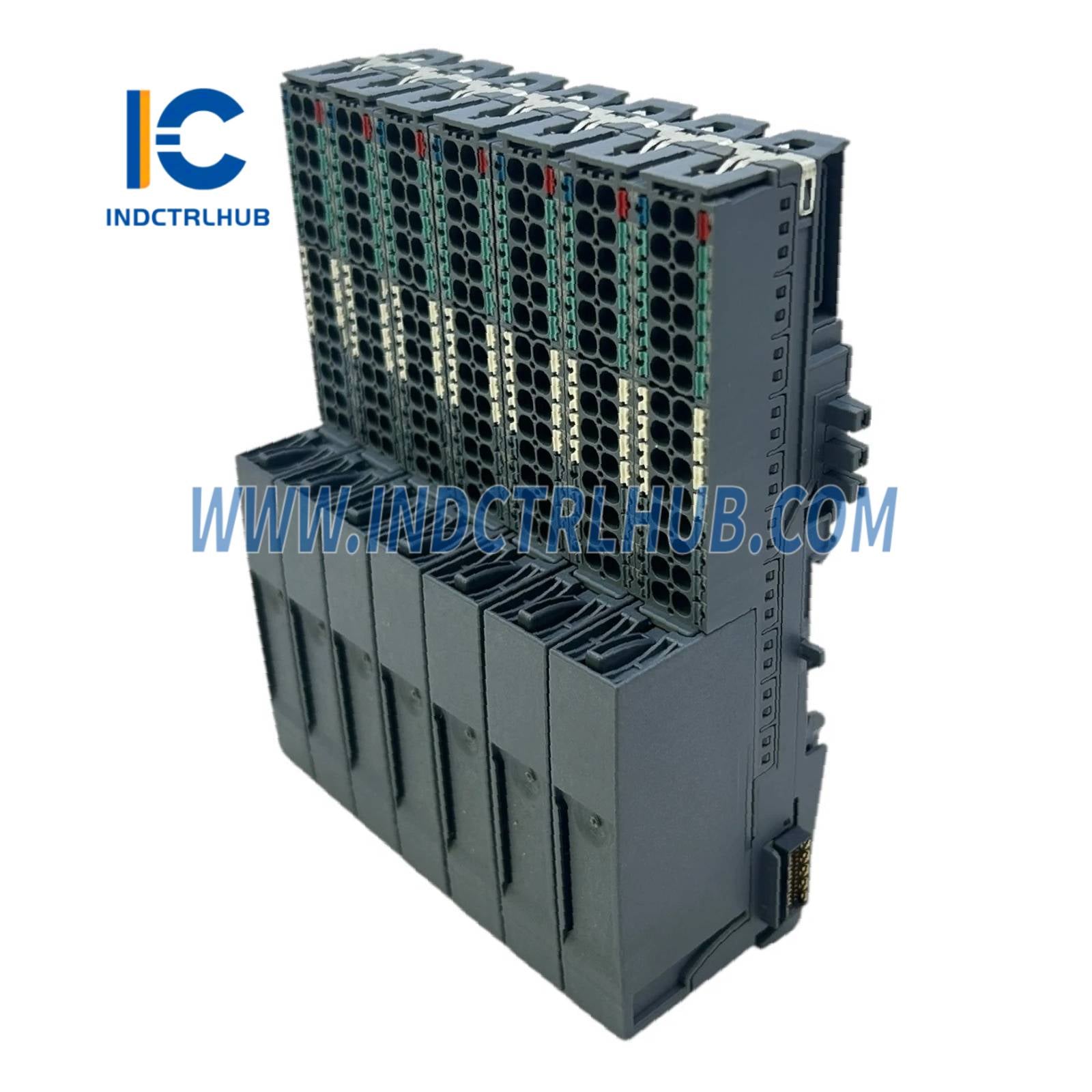

Product Type: SIMATIC ET 200SP BaseUnit BU15-P16+A0+2B
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- תמיכה 24/7
- החזרות תוך 30 יום
- משלוח מהיר
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7193-6BP20-0BA0 |
| Description | SIMATIC ET 200SP BaseUnit BU15-P16+A0+2B, Type B0, Screw terminals |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-6BP20-0BA0 |
| Product Name | BaseUnit BU type B0 |
| Application | Mounting and electrical connection base for SIMATIC ET 200SP I/O modules in distributed automation systems requiring screw-type wiring |
| Compatibility | - ET 200SP electronic modules (15 mm width) - IM 155-6 PN (ST/HF/BA) - PROFINET and PROFIBUS via interface modules - TIA Portal V18+ |
| Function | Provides mechanical fixing, 24 V DC power distribution, screw terminals, self-assembling backplane, and bridged supply from left; supports hot swap, module-specific color coding, and vibration-resistant connections |
Functional Specifications
| Parameter | Details |
|---|---|
| BaseUnit Type | B0 (screw terminals, no AUX) |
| I/O Module Width | 15 mm |
| Terminals | 16 screw terminals (P1, P2 per side) |
| Terminal Type | Screw cage clamp |
| Wire Size | 0.14_2.5 mm² (26_14 AWG) solid/stranded |
| Strip Length | 8_10 mm |
| Terminal Torque | 0.4_0.5 Nm (3.5_4.4 in-lb) |
| Rated Current | 2 A per terminal |
| Rated Voltage | 24 V DC (P1/P2), 60 V DC / 230 V AC (field) |
| Power Supply | 24 V DC (20.4_28.8 V) via P1/P2 rails (bridged from left) |
| AUX Terminals | None |
| Potential Separation | P1/P2 isolated from field; bridged to left BaseUnit |
| Hot Swap | Yes _ module replacement under power |
| Color Coding | Light blue (digital), yellow (analog), red (special) _ per module type |
| Labeling | Integrated label holder (6ES7193-6LH00-0AA0) |
| Self-Assembling Backplane | Automatic electrical connection upon insertion |
| Diagnostics | Via I/O module (LEDs, PROFINET diagnostics) |
Electrical Specifications
| Parameter | Details |
|---|---|
| Supply Voltage | 24 V DC (rated), 19.2_28.8 V |
| Current Carrying Capacity | Up to 10 A (P1/P2 rails) |
| Inrush Current | _ 2.5 A |
| External Fuse | 10 A miniature circuit breaker (type B/C) recommended |
| Isolation | 707 V DC (type test), 500 V AC (functional) |
| Power Loss | < 0.5 W |
Mechanical Specifications
| Parameter | Details |
|---|---|
| Dimensions (W x H x D) | 15 mm _ 117 mm _ 35 mm |
| Weight | 42 g |
| Housing Material | Polyamide (PA 6.6), halogen-free |
| Color | Light gray (RAL 7035) |
| Mounting | Snap-on to 35 mm DIN rail (EN 60715) |
| Locking | Spring-loaded clip with release tab |
Environmental Specifications
| Parameter | Details |
|---|---|
| Operating Temperature | -30°C to +60°C (horizontal), -30°C to +50°C (vertical) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5_95% non-condensing |
| Vibration | 5g (IEC 60068-2-6) |
| Shock | 15g (IEC 60068-2-27) |
| Enclosure Rating | IP20 |
Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7193-6BP20-0BA0 |
| Description | SIMATIC ET 200SP BaseUnit BU15-P16+A0+2B, Type B0, Screw terminals |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-6BP20-0BA0 |
| Product Name | BaseUnit BU type B0 |
| Application | Mounting and electrical connection base for SIMATIC ET 200SP I/O modules in distributed automation systems requiring screw-type wiring |
| Compatibility | - ET 200SP electronic modules (15 mm width) - IM 155-6 PN (ST/HF/BA) - PROFINET and PROFIBUS via interface modules - TIA Portal V18+ |
| Function | Provides mechanical fixing, 24 V DC power distribution, screw terminals, self-assembling backplane, and bridged supply from left; supports hot swap, module-specific color coding, and vibration-resistant connections |
Functional Specifications
| Parameter | Details |
|---|---|
| BaseUnit Type | B0 (screw terminals, no AUX) |
| I/O Module Width | 15 mm |
| Terminals | 16 screw terminals (P1, P2 per side) |
| Terminal Type | Screw cage clamp |
| Wire Size | 0.14_2.5 mm² (26_14 AWG) solid/stranded |
| Strip Length | 8_10 mm |
| Terminal Torque | 0.4_0.5 Nm (3.5_4.4 in-lb) |
| Rated Current | 2 A per terminal |
| Rated Voltage | 24 V DC (P1/P2), 60 V DC / 230 V AC (field) |
| Power Supply | 24 V DC (20.4_28.8 V) via P1/P2 rails (bridged from left) |
| AUX Terminals | None |
| Potential Separation | P1/P2 isolated from field; bridged to left BaseUnit |
| Hot Swap | Yes _ module replacement under power |
| Color Coding | Light blue (digital), yellow (analog), red (special) _ per module type |
| Labeling | Integrated label holder (6ES7193-6LH00-0AA0) |
| Self-Assembling Backplane | Automatic electrical connection upon insertion |
| Diagnostics | Via I/O module (LEDs, PROFINET diagnostics) |
Electrical Specifications
| Parameter | Details |
|---|---|
| Supply Voltage | 24 V DC (rated), 19.2_28.8 V |
| Current Carrying Capacity | Up to 10 A (P1/P2 rails) |
| Inrush Current | _ 2.5 A |
| External Fuse | 10 A miniature circuit breaker (type B/C) recommended |
| Isolation | 707 V DC (type test), 500 V AC (functional) |
| Power Loss | < 0.5 W |
Mechanical Specifications
| Parameter | Details |
|---|---|
| Dimensions (W x H x D) | 15 mm _ 117 mm _ 35 mm |
| Weight | 42 g |
| Housing Material | Polyamide (PA 6.6), halogen-free |
| Color | Light gray (RAL 7035) |
| Mounting | Snap-on to 35 mm DIN rail (EN 60715) |
| Locking | Spring-loaded clip with release tab |
Environmental Specifications
| Parameter | Details |
|---|---|
| Operating Temperature | -30°C to +60°C (horizontal), -30°C to +50°C (vertical) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5_95% non-condensing |
| Vibration | 5g (IEC 60068-2-6) |
| Shock | 15g (IEC 60068-2-27) |
| Enclosure Rating | IP20 |
