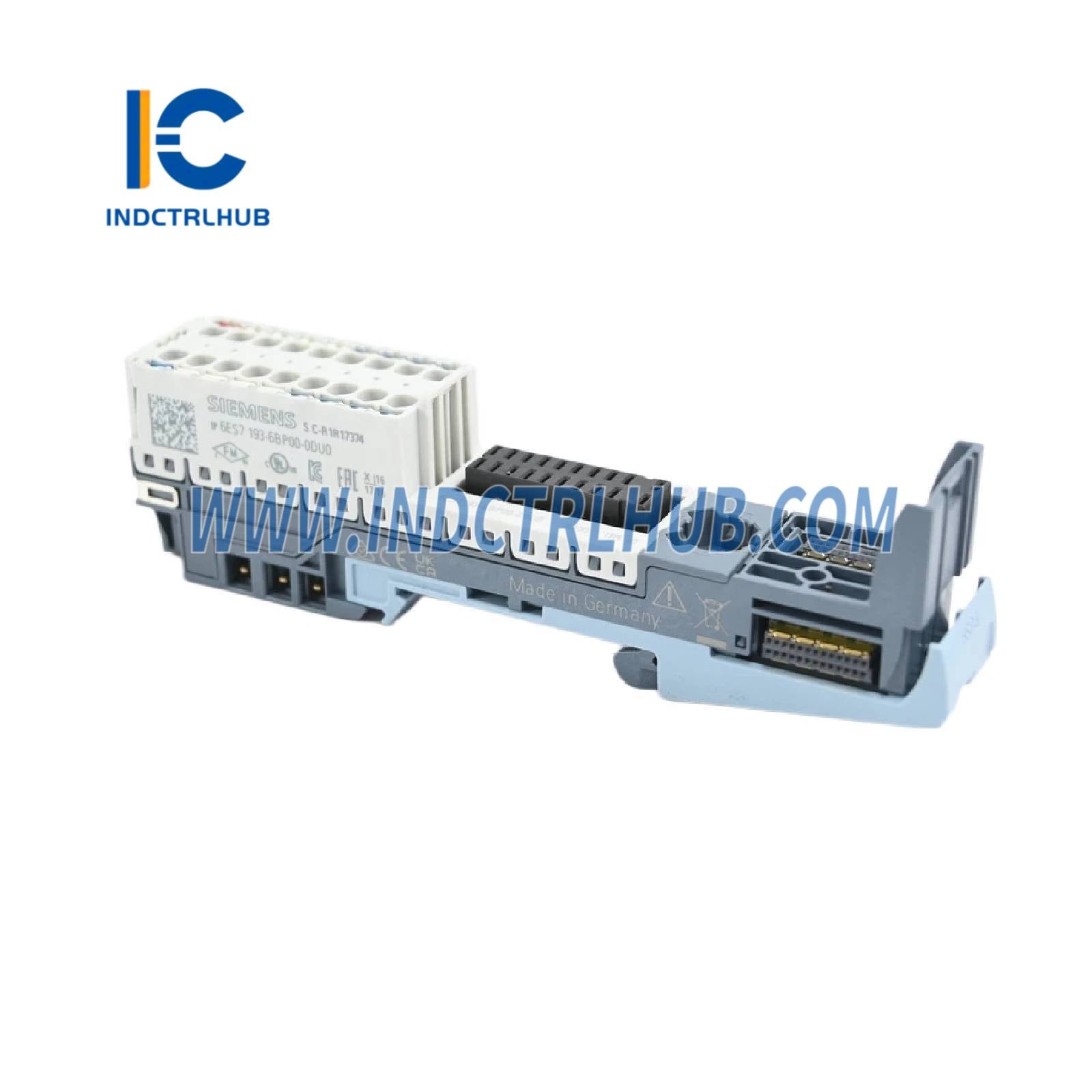

Siemens 6ES7193-6BP00-0DU0
Siemens 6ES7193-6BP00-0DU0
Manufacturer: Siemens
Product No.: 6ES7193-6BP00-0DU0
Condition:1000 במלאי
Product Type: SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- תמיכה 24/7
- החזרות תוך 30 יום
- משלוח מהיר
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-6BP00-0DU0 |
| Product Name | SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D, Push-in Terminals |
| Application | Mounting & wiring base for 15 mm-wide ET 200SP I/O modules (digital, analog, technology) |
| Compatibility | SIMATIC ET 200SP with IM 155-6PN (6ES7155-6AUxx-0CN0) or IM 155-6DP; TIA Portal V15+ |
| Function | Provides mechanical snap-on mounting, push-in field wiring, new load group, AUX terminals, hot-swap support |
Functional Specifications
| Parameter | Details |
|---|---|
| BaseUnit Type | BU Type A0 (standard, no diagnostics) |
| Terminal Type | Push-in (spring cage) _ tool-free wiring |
| Number of Terminals | 16 process terminals (P1__16) + 2 AUX terminals (AUX1, AUX2) |
| Process Terminals | P1__16: 24 V DC / signal (max 2 A per terminal) |
| AUX Terminals | AUX1/AUX2: 24 V DC auxiliary supply (max 10 A total) |
| Load Group | New load group _ electrically isolated from previous BU |
| Wire Cross-Section | 0.14 _ 1.5 mm² (AWG 26 _ 16); ferruled or solid |
| Stripping Length | 8 _ 10 mm |
| Current Rating | 2 A per process terminal; 10 A total per AUX bus |
| Voltage Rating | 24 V DC (18 _ 30 V); 60 V DC max on AUX |
| Hot-Swap Support | Yes _ module replacement under power (with BU Type A1 for diagnostics) |
| Mounting | 35 mm DIN rail (EN 60715); tool-free snap-on |
| Operating Temperature | _30°C to +60°C (horizontal); _30°C to +50°C (vertical) |
| Storage Temperature | _40°C to +70°C |
| Protection Rating | IP20 |
| Dimensions (W_H_D) | 15 mm _ 117 mm _ 58 mm |
| Weight | _ 45 g |
| LED Indicators | None (passive BaseUnit) |
| Certifications | CE, UL, cUL, CSA, ATEX Zone 2, IECEx, FM Class I Div 2 |
| Standards Compliance | IEC 61131-2, EN 61000-6-2/4 (EMC), UL 508 |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 6ES7193-6BP00-0DU0 (BP = BaseUnit; 0DU0 = 15 mm, push-in, AUX, new load group) |
| Replaces / Supersedes | 6ES7193-6BP00-0BA0 (adds AUX terminals, new load group) |
| Available Options | _ 6ES7193-6BP00-0BA0: Without AUX terminals _ 6ES7193-6BP00-0DA0: Screw terminals _ 6ES7193-6BP20-0DA0: BU Type A1 (with diagnostics) |
| Pack Size | 1 unit (single pack) |
| Accessories | _ 6ES7193-6PA00-0AA0: Labeling strips _ 6ES7193-6LF00-0AA0: Shielding set _ 6ES7193-6TP00-0AA0: Test plug |
| Required Components | _ 6ES7155-6AU01-0CN0: IM 155-6PN HF _ 6ES713x/714x: I/O modules |
Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-6BP00-0DU0 |
| Product Name | SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D, Push-in Terminals |
| Application | Mounting & wiring base for 15 mm-wide ET 200SP I/O modules (digital, analog, technology) |
| Compatibility | SIMATIC ET 200SP with IM 155-6PN (6ES7155-6AUxx-0CN0) or IM 155-6DP; TIA Portal V15+ |
| Function | Provides mechanical snap-on mounting, push-in field wiring, new load group, AUX terminals, hot-swap support |
Functional Specifications
| Parameter | Details |
|---|---|
| BaseUnit Type | BU Type A0 (standard, no diagnostics) |
| Terminal Type | Push-in (spring cage) _ tool-free wiring |
| Number of Terminals | 16 process terminals (P1__16) + 2 AUX terminals (AUX1, AUX2) |
| Process Terminals | P1__16: 24 V DC / signal (max 2 A per terminal) |
| AUX Terminals | AUX1/AUX2: 24 V DC auxiliary supply (max 10 A total) |
| Load Group | New load group _ electrically isolated from previous BU |
| Wire Cross-Section | 0.14 _ 1.5 mm² (AWG 26 _ 16); ferruled or solid |
| Stripping Length | 8 _ 10 mm |
| Current Rating | 2 A per process terminal; 10 A total per AUX bus |
| Voltage Rating | 24 V DC (18 _ 30 V); 60 V DC max on AUX |
| Hot-Swap Support | Yes _ module replacement under power (with BU Type A1 for diagnostics) |
| Mounting | 35 mm DIN rail (EN 60715); tool-free snap-on |
| Operating Temperature | _30°C to +60°C (horizontal); _30°C to +50°C (vertical) |
| Storage Temperature | _40°C to +70°C |
| Protection Rating | IP20 |
| Dimensions (W_H_D) | 15 mm _ 117 mm _ 58 mm |
| Weight | _ 45 g |
| LED Indicators | None (passive BaseUnit) |
| Certifications | CE, UL, cUL, CSA, ATEX Zone 2, IECEx, FM Class I Div 2 |
| Standards Compliance | IEC 61131-2, EN 61000-6-2/4 (EMC), UL 508 |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 6ES7193-6BP00-0DU0 (BP = BaseUnit; 0DU0 = 15 mm, push-in, AUX, new load group) |
| Replaces / Supersedes | 6ES7193-6BP00-0BA0 (adds AUX terminals, new load group) |
| Available Options | _ 6ES7193-6BP00-0BA0: Without AUX terminals _ 6ES7193-6BP00-0DA0: Screw terminals _ 6ES7193-6BP20-0DA0: BU Type A1 (with diagnostics) |
| Pack Size | 1 unit (single pack) |
| Accessories | _ 6ES7193-6PA00-0AA0: Labeling strips _ 6ES7193-6LF00-0AA0: Shielding set _ 6ES7193-6TP00-0AA0: Test plug |
| Required Components | _ 6ES7155-6AU01-0CN0: IM 155-6PN HF _ 6ES713x/714x: I/O modules |
