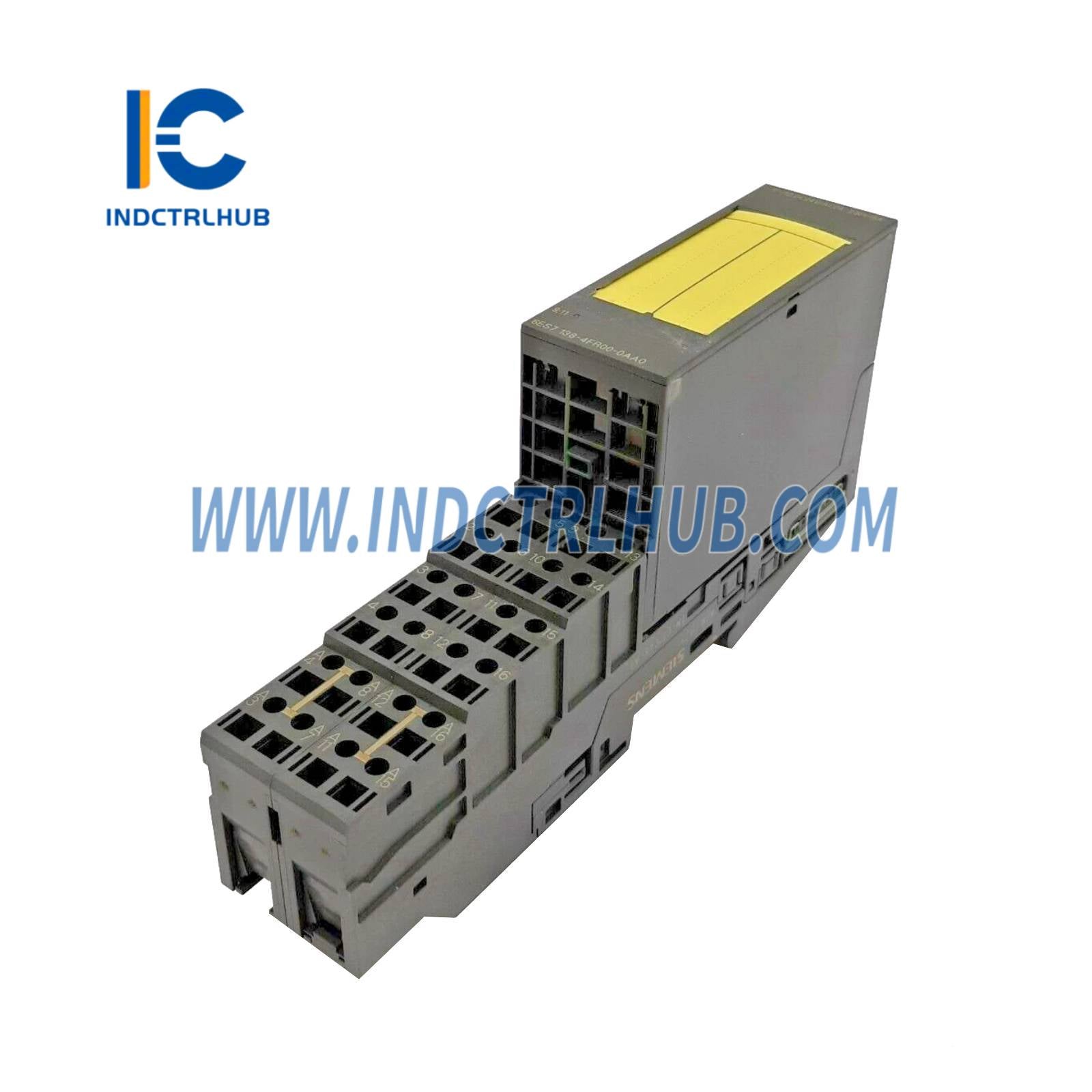

Siemens 6ES7193-4CF50-0AA0
Siemens 6ES7193-4CF50-0AA0
Manufacturer: Siemens
Product No.: 6ES7193-4CF50-0AA0
Condition:1000 במלאי
Product Type: SIMATIC DP Terminal Module TM-E30C46-A1
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- תמיכה 24/7
- החזרות תוך 30 יום
- משלוח מהיר
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-4CF50-0AA0 |
| Product Name | SIMATIC DP Terminal Module TM-E30C46-A1 |
| Application | Distributed I/O systems for industrial automation and process control, providing terminal connections for ET 200S electronic modules |
| Compatibility | SIMATIC ET 200S series; supports 30 mm wide electronic modules with spring-type terminals |
| Function | Serves as a terminal module for secure field wiring connections, with continuous AUX1 access for power distribution |
Functional Specifications
| Parameter | Details |
|---|---|
| Terminal Type | Spring-type terminals (push-in connection) |
| Number of Terminals | 4x6 terminal connections (24 total) with terminal access to AUX1 |
| Module Width Support | 30 mm wide electronic modules |
| Voltage Rating | Up to 24 V DC |
| Current Rating | Up to 2 A per terminal |
| Wire Gauge | 0.14 to 1.5 mm² (AWG 26 to 16) |
| AUX1 Access | Continuous AUX1 connection for power supply |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Dimensions | 30 mm width x standard ET 200S height (approximate: 30 mm x 100 mm x 75 mm) |
| Weight | Approximately 0.1 kg (pack of 5) |
| Certifications | CE marked; UL, cUL, CSA compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 6ES7193-4CF50-0AA0 (TM-E30C46-A1 terminal module, pack of 5) |
| Available Options | Variants for different terminal types (e.g., 6ES7193-4CE50-0AA0 for screw terminals) |
| Customization | Extended temperature range or hazardous area certifications available upon request |
