Siemens 6ES7193-4CD30-0AA0
Siemens 6ES7193-4CD30-0AA0
Manufacturer: Siemens
Product No.: 6ES7193-4CD30-0AA0
Condition:1000 במלאי

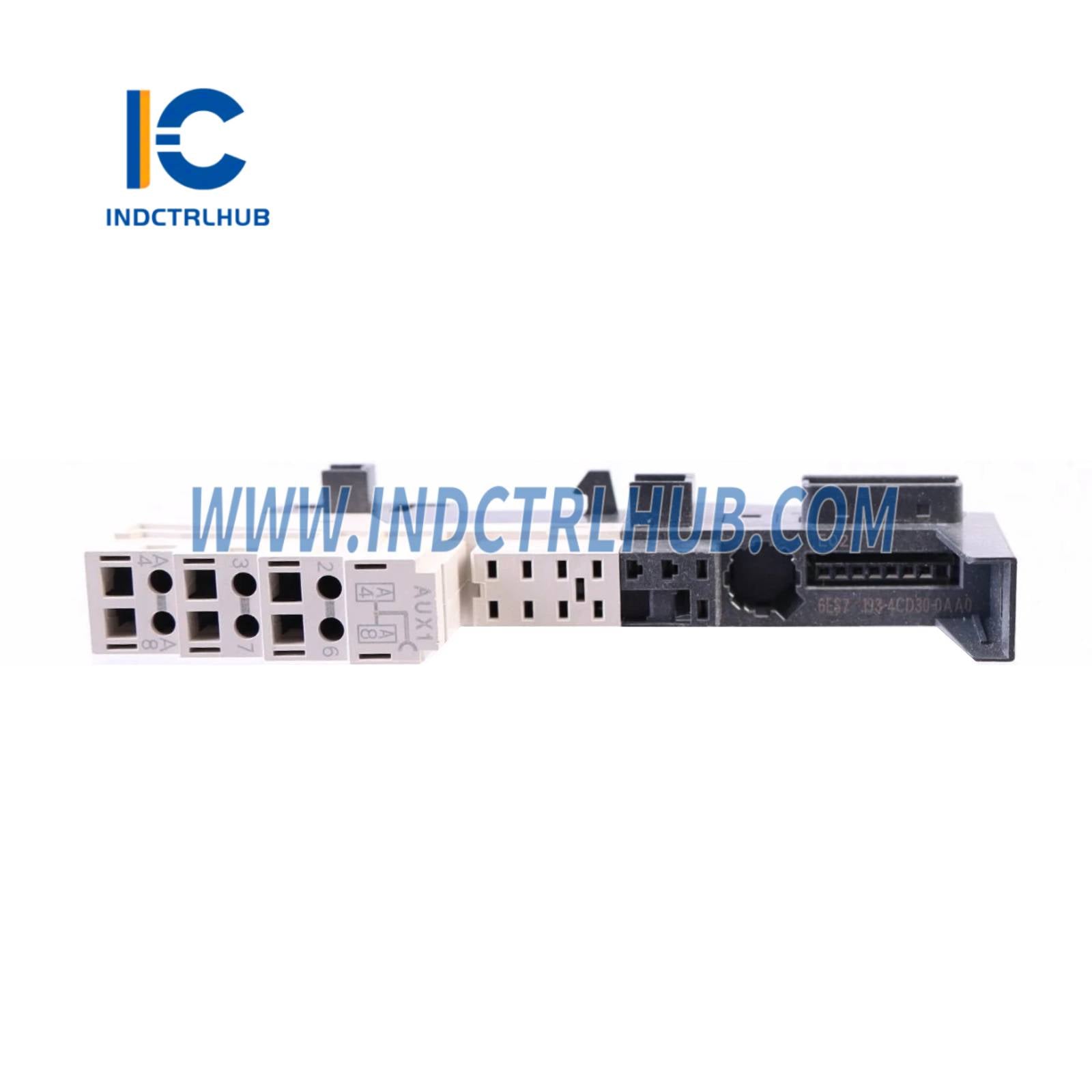

Product Type: SIMATIC DP Terminal Module TM-P15S23-A1
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- תמיכה 24/7
- החזרות תוך 30 יום
- משלוח מהיר
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-4CD30-0AA0 |
| Product Name | SIMATIC DP Terminal Module TM-P15S23-A1 |
| Application | Field wiring termination for ET 200S 15 mm-wide electronic modules in distributed I/O systems |
| Compatibility | SIMATIC ET 200S; supports digital, analog, technology modules (e.g., 6ES7131, 6ES7132, 6ES7134, 6ES7135) |
| Function | Provides spring-type terminals with continuous AUX1 bus for 24 V DC power distribution and signal wiring |
Functional Specifications
| Parameter | Details |
|---|---|
| Terminal Type | Spring-type (push-in cage clamp) |
| Number of Terminals | 6 (3 input/signal + 3 return/AUX1) |
| Wire Cross-Section | 0.14 _ 1.5 mm² (AWG 26 _ 16) |
| Stripping Length | 7 mm |
| Current Rating | 2 A per terminal; 8 A total per AUX1 bus |
| Voltage Rating | 24 V DC (nominal); 30 V DC max |
| AUX1 Bus | Continuous _ passes 24 V DC power to adjacent modules |
| Module Width | 15 mm (supports 15 mm I/O modules) |
| Mounting | 35 mm DIN rail (EN 60715); tool-free snap-on |
| Operating Temperature | 0°C to +60°C (horizontal); 0°C to +50°C (vertical) |
| Storage Temperature | _40°C to +70°C |
| Protection Rating | IP20 |
| Dimensions (W_H_D) | 15 mm _ 81 mm _ 52 mm |
| Weight | _ 38 g (per module) |
| LED Indicators | None (passive terminal module) |
| Certifications | CE, UL, cUL, CSA, ATEX Zone 2, IECEx |
| Standards Compliance | IEC 61131-2, EN 61000-6-2/4 (EMC), UL 508 |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 6ES7193-4CD30-0AA0 (CD = Spring terminal; 30 = 15 mm, AUX1 continuous, 3+3 terminals) |
| Replaces / Supersedes | 6ES7193-4CC30-0AA0 (adds 3+3 terminal layout for compact modules) |
| Available Options | _ 6ES7193-4CB20-0AA0: Screw-type, 4+4 terminals _ 6ES7193-4CA30-0AA0: Spring-type, 4+4 terminals _ 6ES7193-4CE30-0AA0: With diagnostics |
| Pack Size | 5 units per pack |
| Accessories | _ 6ES7193-4GA00-0AA0: Labeling strips _ 6ES7193-4LA10-0AA0: Jumper combs _ 6ES7193-4LF00-0AA0: Shielding terminals |
| Required Components | _ 6ES7151-1AAxx-0AB0: IM 151 interface module _ 6ES713x-xxxx-xxxx: I/O modules |
