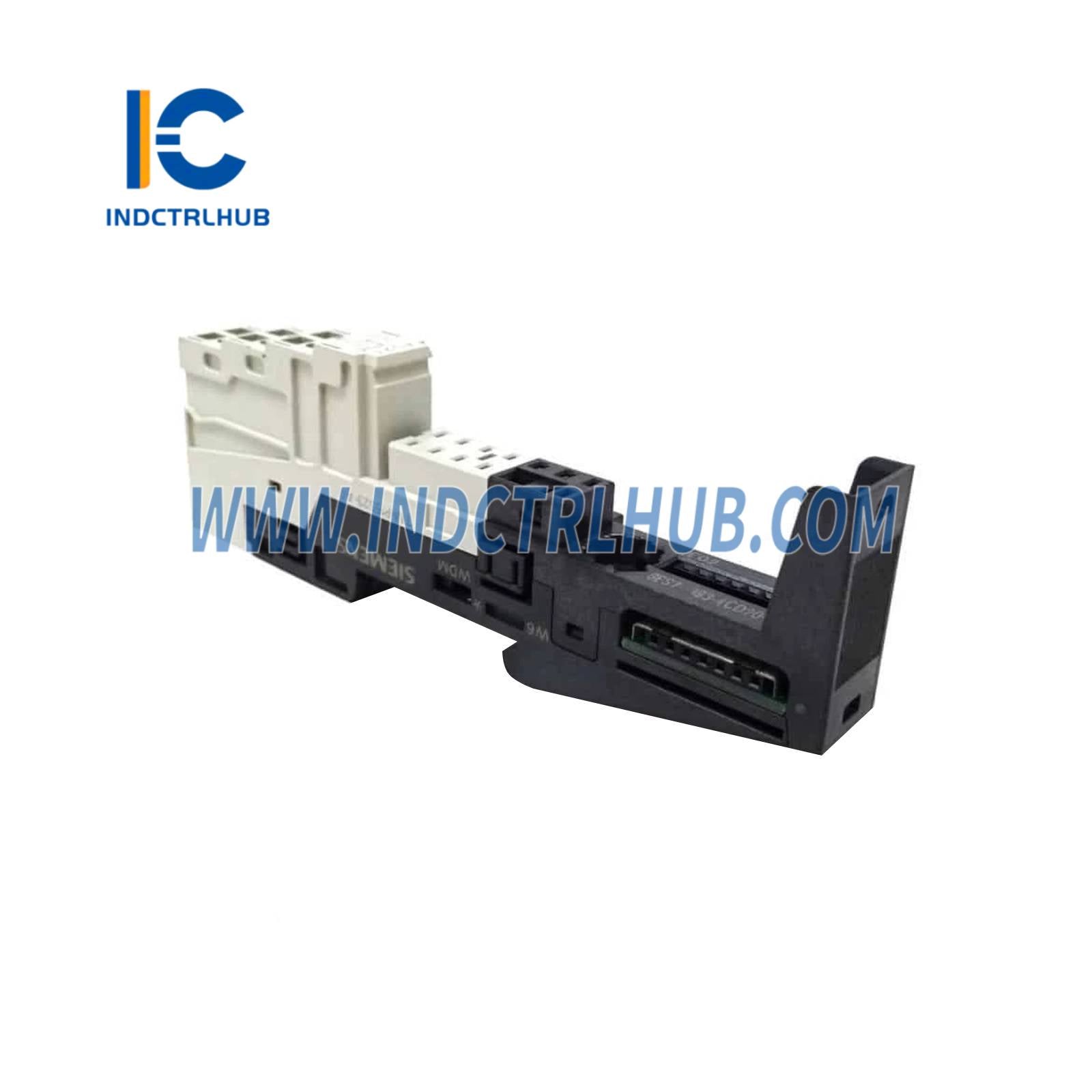

Siemens 6ES7193-4CD20-0AA0
Siemens 6ES7193-4CD20-0AA0
Manufacturer: Siemens
Product No.: 6ES7193-4CD20-0AA0
Condition:1000 במלאי
Product Type: SIMATIC DP Terminal Module TM-P15C23-A1
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- תמיכה 24/7
- החזרות תוך 30 יום
- משלוח מהיר
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7193-4CD20-0AA0 |
| Description | SIMATIC DP Terminal Module TM-P15C23-A1 |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-4CD20-0AA0 |
| Product Name | TM-P15C23-A1 Terminal Module for ET 200S |
| Application | Field wiring termination for ET 200S distributed I/O in industrial automation and process control |
| Compatibility | ET 200S electronic modules with 15 mm width; supports hot swap and electronic module replacement |
| Function | Provides screw-type terminals for reliable signal distribution; includes AUX1 continuous connection |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Terminal module for ET 200S |
| Terminals | Screw-type, 2x3 terminal connections |
| Width | 15 mm |
| Wire Gauge | 0.3_2.5 mm² (22_12 AWG) |
| Strip Length | 7 mm |
| Terminal Torque | 0.5_0.6 Nm |
| Rated Current | 2 A per terminal |
| Rated Voltage | 60 V DC / 30 V AC |
| Insulation Material | Polyamide |
| AUX1 Connection | Continuous (in line) |
| Mounting | Snap-on to ET 200S base unit |
| Dimensions | 15 mm x 119 mm x 75 mm (W x H x D) |
| Weight | 0.07 kg |
| Operating Temperature Range | -25°C to +60°C |
| Protection Rating | IP20 |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7193-4CD20-0AA0 |
| Description | SIMATIC DP Terminal Module TM-P15C23-A1 |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-4CD20-0AA0 |
| Product Name | TM-P15C23-A1 Terminal Module for ET 200S |
| Application | Field wiring termination for ET 200S distributed I/O in industrial automation and process control |
| Compatibility | ET 200S electronic modules with 15 mm width; supports hot swap and electronic module replacement |
| Function | Provides screw-type terminals for reliable signal distribution; includes AUX1 continuous connection |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Terminal module for ET 200S |
| Terminals | Screw-type, 2x3 terminal connections |
| Width | 15 mm |
| Wire Gauge | 0.3_2.5 mm² (22_12 AWG) |
| Strip Length | 7 mm |
| Terminal Torque | 0.5_0.6 Nm |
| Rated Current | 2 A per terminal |
| Rated Voltage | 60 V DC / 30 V AC |
| Insulation Material | Polyamide |
| AUX1 Connection | Continuous (in line) |
| Mounting | Snap-on to ET 200S base unit |
| Dimensions | 15 mm x 119 mm x 75 mm (W x H x D) |
| Weight | 0.07 kg |
| Operating Temperature Range | -25°C to +60°C |
| Protection Rating | IP20 |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
