| Memory Type |
Flash EEPROM (non-volatile) |
| Total Capacity |
24 MB |
| Usable Capacity |
~23.5 MB (after formatting) |
| File System |
FAT32 (formatted by TIA Portal) |
| Data Retention |
> 10 years at 25°C |
| Write/Erase Cycles |
> 100,000 per sector |
| Program Storage |
Full user program (OB, FC, FB, DB), symbols, comments |
| Data Logging |
High-speed data logs (up to 1 ms resolution), CSV export |
| Recipe Management |
Multiple recipes with parameter sets |
| Firmware Update |
CPU firmware via card (no PC required) |
| Project Transfer |
Clone entire CPU configuration (plug & play) |
| Password Protection |
Yes _ know-how protection, copy protection
|
| RTC Backup |

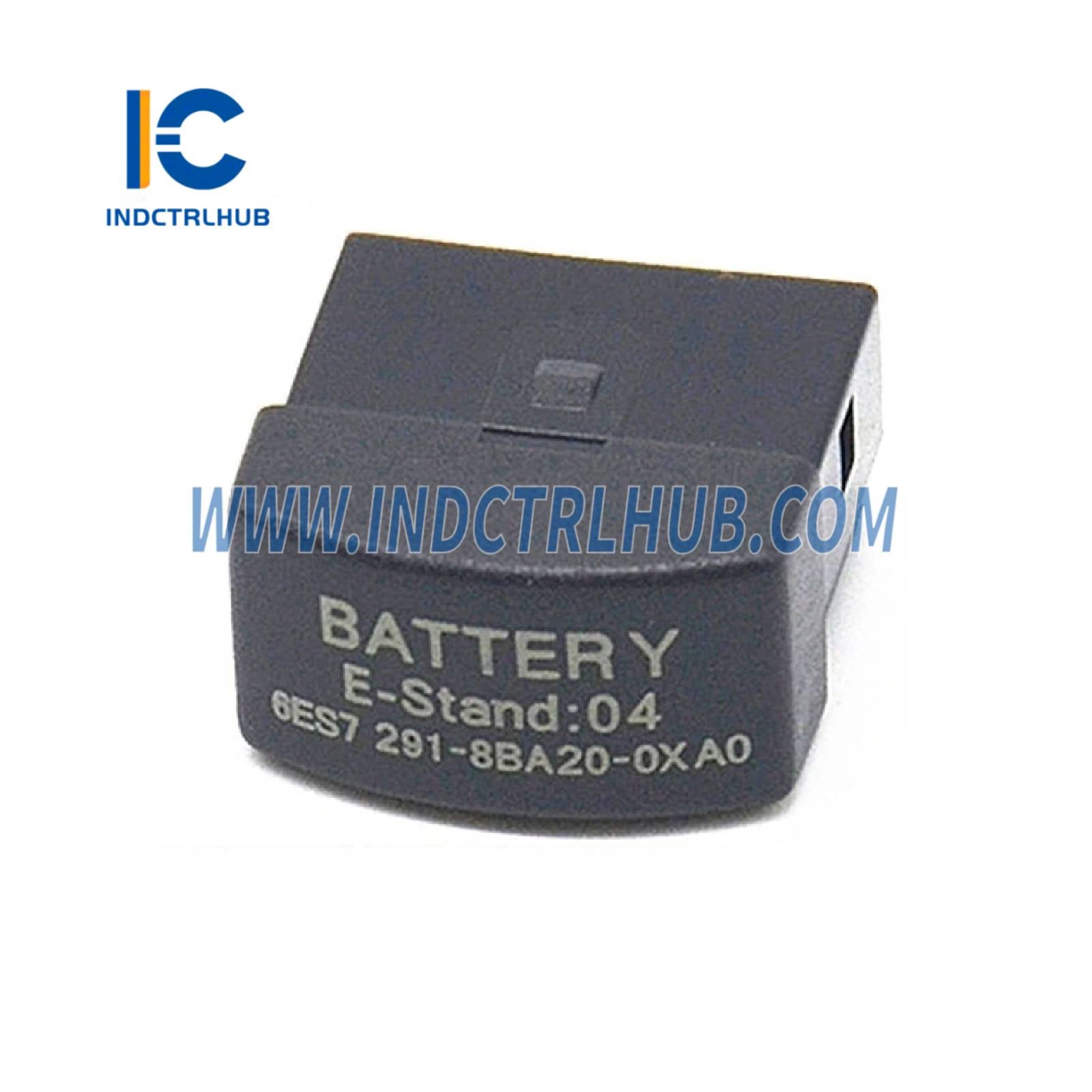

Optional battery module (6ES7291-8BA20-0XA0 + 6ES7291-1AA20-0AA0) for real-time clock |
| LED Indicator |
None (status via CPU display or TIA Portal) |
| Hot Swap |
Yes _ insert/remove under power (CPU must be in STOP) |
| Operating Temperature Range |
-40°C to +70°C |
| Storage Temperature Range |
-40°C to +85°C |
| Humidity |
5% to 95% non-condensing |
| Vibration |
IEC 60068-2-6 (5g, 10_150 Hz) |
| Shock |
IEC 60068-2-27 (15g, 11 ms) |
| Dimensions (W x H x D) |
24 mm _ 32 mm _ 2.5 mm |
| Weight |
5 g |
| Enclosure Rating |
IP20 (when inserted) |
| Certifications |
CE, UL, cUL, FM, ATEX Zone 2, China RoHS, KC, RCM
|
