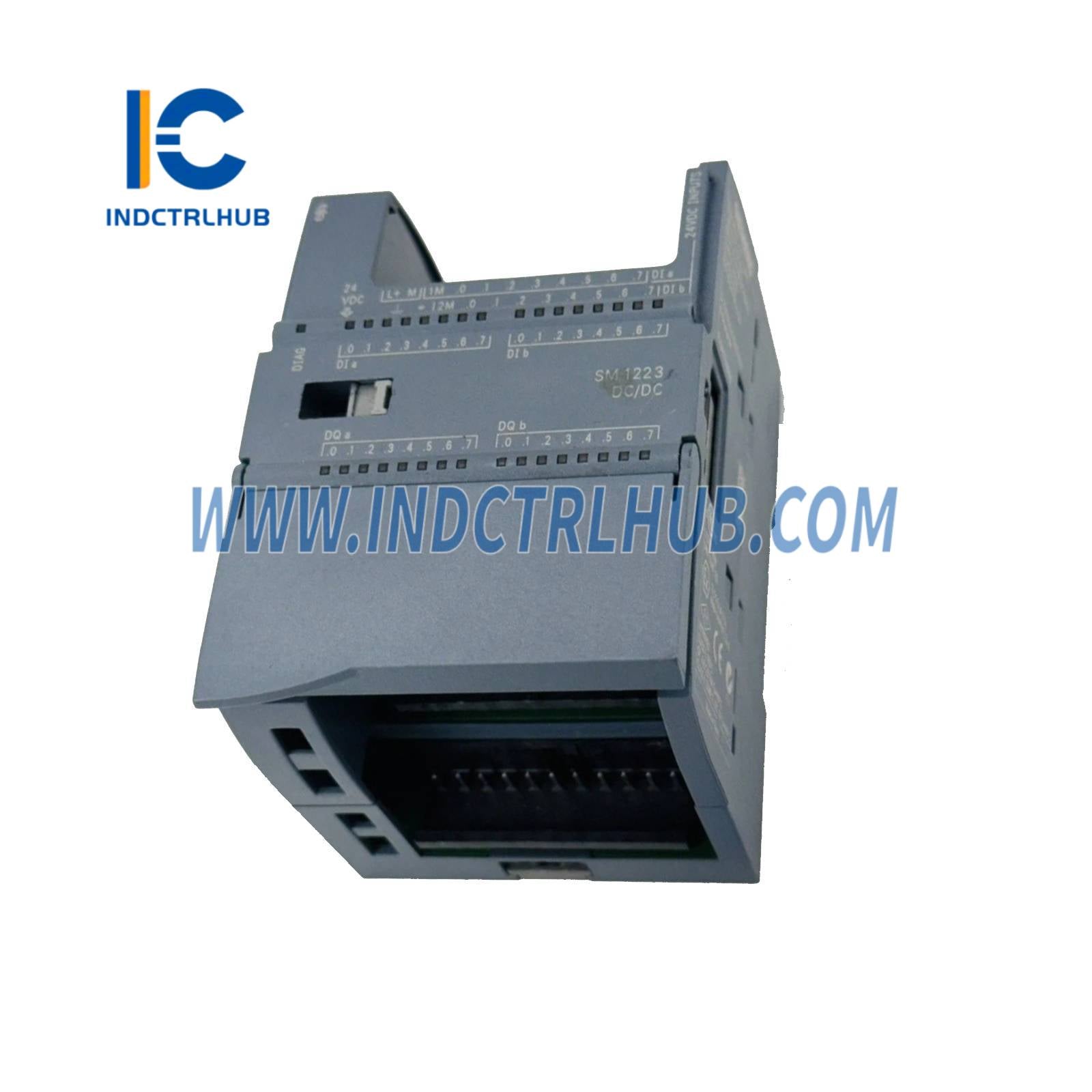

| Digital Inputs |
16 (optically isolated, sink/source _ IEC Type 1) |
| Input Voltage |
24 V DC (20.4 V to 28.8 V) |
| Input Current |
4 mA typical (@ 24 V DC) |
| Input Delay |
0.2 to 12.8 ms (configurable) |
| Cable Length (Inputs) |
1000 m (shielded), 500 m (unshielded)
|
| Digital Outputs |
16 (transistor, sourcing _ PNP, optically isolated) |
| Output Voltage |
24 V DC (20.4 V to 28.8 V) |
| Output Current |
0.5 A per channel (continuous); 2 A surge for 100 ms
|
| Total Output Current |
8 A max per module (all channels combined) |
| Switching Frequency |
100 Hz max (resistive); 0.5 Hz (inductive)
|
| Lamp Load |
5 W max per channel |
| Short-Circuit Protection |
Yes _ electronic, per channel (auto-reset) |
| Isolation |
500 V AC (field to logic); channel-to-channel isolation
|
| Power Loss |
5.5 W typical |
| Diagnostics |
Short-circuit, overload, wire break (LED + status bit per channel) |
| Operating Temperature |
_20°C to +60°C (horizontal); 0°C to +60°C (vertical) |
| Storage Temperature |
_40°C to +70°C |
| Dimensions (W_H_D) |
70 mm _ 100 mm _ 75 mm |
| Weight |
0.28 kg (0.62 lbs) |
| Mounting |
35 mm DIN rail (SNAP-ON) |
| Connectors |
2_ 20-pole removable screw terminals (0.14_1.5 mm²) |
| LED Indicators |
1x PWR (green), 1x DIAG (red), 16x DI status, 16x DO status
|
| Certifications |
CE, UL, cULus, CSA, RCM, KC, ATEX, IECEx
|
| Standards Compliance |
IEC 61131-2, EN 61000-6-2/4 (EMC), UL 508, CSA C22.2
|
