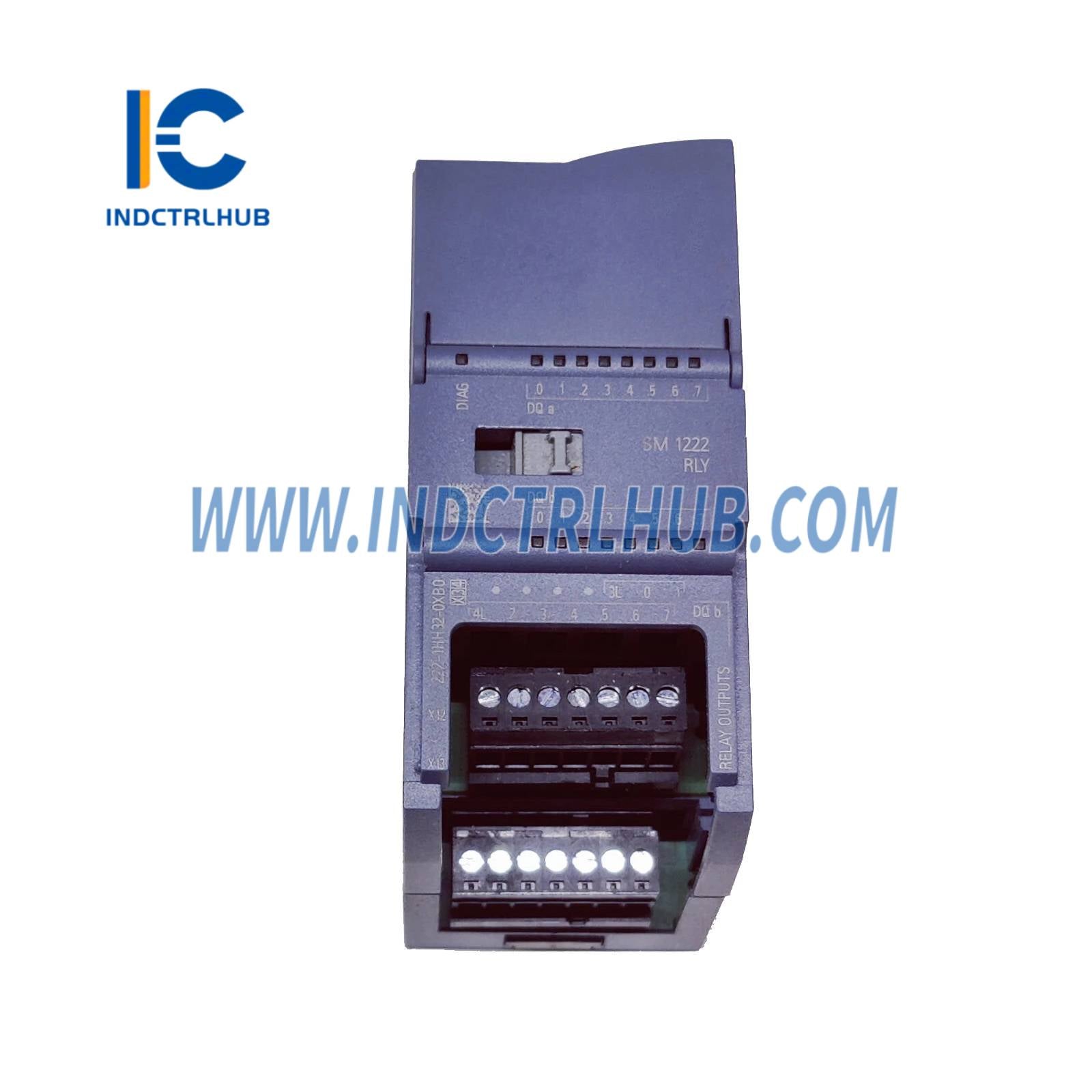

Siemens 6ES7222-1HH32-0XB0

Siemens 6ES7222-1HH32-0XB0

  • Manufacturer: Siemens

  • Product No.: 6ES7222-1HH32-0XB0

  • Condition:1000 en stock

  • Product Type: SIMATIC S7-1200 Digital Output Module SM 1222

  • Product Origin: Germany

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • Assistance 24h/24 et 7j/7
  • Retours sous 30 jours
  • Expédition rapide

Product Details



Parameter Details
Manufacturer Siemens
Model/Part Number 6ES7222-1HH32-0XB0
Description SIMATIC S7-1200 Digital Output Module SM 1222

Product Overview



Parameter Details
Part Number 6ES7222-1HH32-0XB0
Product Name SM 1222 Digital Output Module
Application Digital output expansion for S7-1200 series PLCs in industrial automation, machine control, and process systems
Compatibility SIMATIC S7-1200 CPUs (all models); mounts on right-side expansion rail
Function Provides 16 relay outputs for controlling actuators, relays, and indicators with high load capacity and diagnostics

Functional Specifications



Parameter Details
Output Channels 16 digital outputs (2 groups of 8)
Output Type Relay (form C contacts)
Output Voltage 24-240 V AC/DC (50/60 Hz for AC)
Output Current 2 A per output (resistive), 10 A total per group
Isolation 1500 V AC (output to logic), 75 V AC/DC (output to output)
Update Rate Synchronized with CPU scan cycle
Cable Length Up to 1000 m (shielded twisted pair)
Power Supply 20.4-28.8 V DC from PLC backplane
Power Consumption 70 mA at 5 V DC, 0 mA at 24 V DC
Operating Temperature Range -20 to +60°C
Dimensions 100 mm x 45 mm x 75 mm (H x W x D)
Weight 0.18 kg
Mounting Snap-on to S7-1200 DIN rail
Protection Rating IP20
Standards Compliance IEC 61131-2, CE, UL, CSA
Voir tous les détails

Product Description

Product Details



Parameter Details
Manufacturer Siemens
Model/Part Number 6ES7222-1HH32-0XB0
Description SIMATIC S7-1200 Digital Output Module SM 1222

Product Overview



Parameter Details
Part Number 6ES7222-1HH32-0XB0
Product Name SM 1222 Digital Output Module
Application Digital output expansion for S7-1200 series PLCs in industrial automation, machine control, and process systems
Compatibility SIMATIC S7-1200 CPUs (all models); mounts on right-side expansion rail
Function Provides 16 relay outputs for controlling actuators, relays, and indicators with high load capacity and diagnostics

Functional Specifications



Parameter Details
Output Channels 16 digital outputs (2 groups of 8)
Output Type Relay (form C contacts)
Output Voltage 24-240 V AC/DC (50/60 Hz for AC)
Output Current 2 A per output (resistive), 10 A total per group
Isolation 1500 V AC (output to logic), 75 V AC/DC (output to output)
Update Rate Synchronized with CPU scan cycle
Cable Length Up to 1000 m (shielded twisted pair)
Power Supply 20.4-28.8 V DC from PLC backplane
Power Consumption 70 mA at 5 V DC, 0 mA at 24 V DC
Operating Temperature Range -20 to +60°C
Dimensions 100 mm x 45 mm x 75 mm (H x W x D)
Weight 0.18 kg
Mounting Snap-on to S7-1200 DIN rail
Protection Rating IP20
Standards Compliance IEC 61131-2, CE, UL, CSA
