زیمنس 6ES7193-1CL00-0XA0
زیمنس 6ES7193-1CL00-0XA0
Manufacturer: Siemens
Product No.: 6ES7193-1CL00-0XA0
Condition:1000 در انبار

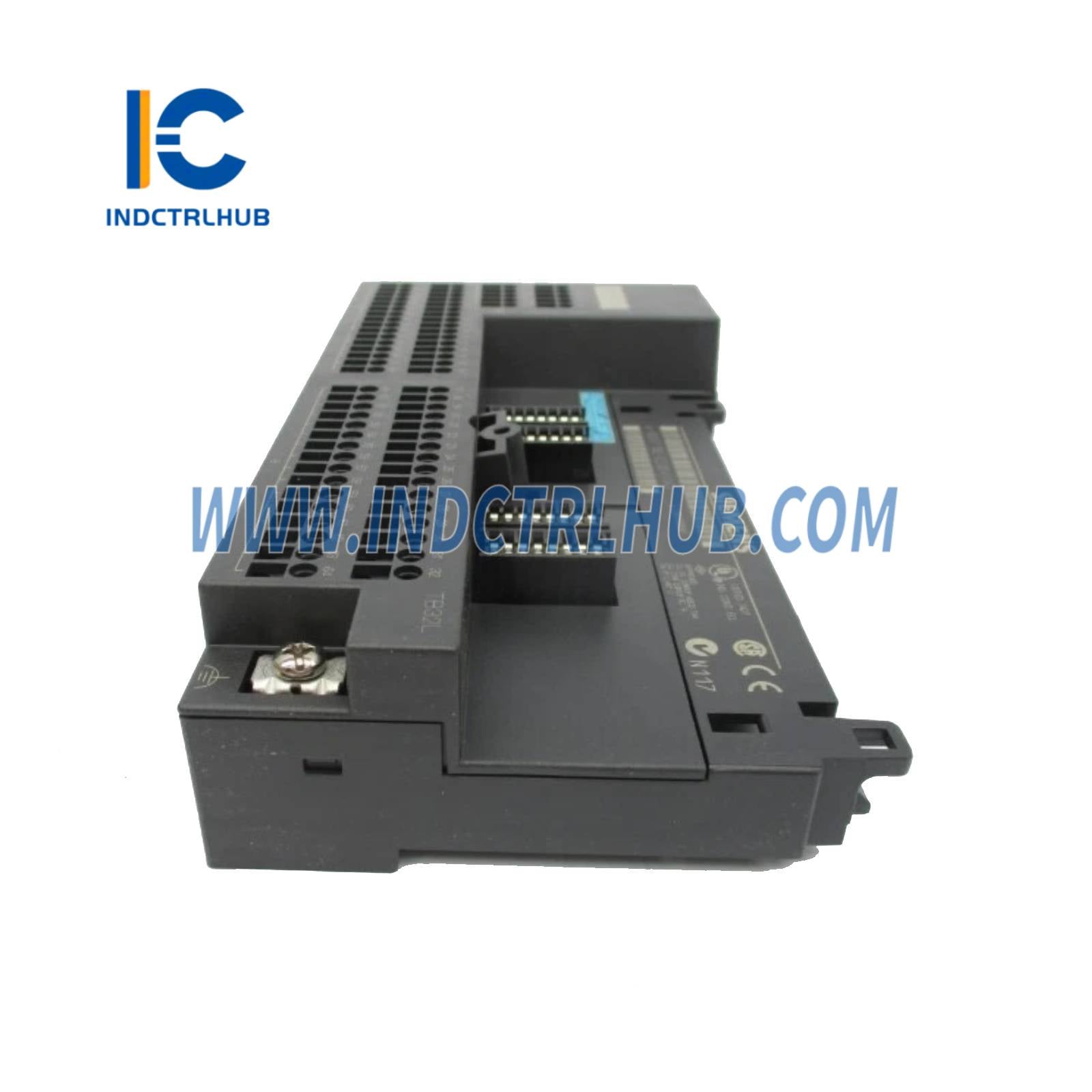

Product Type: SIMATIC DP Terminal Block TB32L
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- پشتیبانی 24/7
- بازگشت 30 روزه
- حمل و نقل سریع
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7193-1CL00-0XA0 |
| Description | SIMATIC DP Terminal Block TB32L |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-1CL00-0XA0 |
| Product Name | TB32L Terminal Block for ET 200L |
| Application | Field wiring termination for distributed I/O systems in industrial automation and process control |
| Compatibility | Designed for Siemens SIMATIC ET 200L distributed I/O systems; supports up to 32 channels for digital or analog signals |
| Function | Provides screw-type terminal connections for reliable signal distribution and field wiring in harsh industrial environments |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Screw-type terminal block (TB32L) |
| Channels | 32 channels |
| Terminal Type | Screw terminals |
| Wire Gauge | 0.5_2.5 mm² (20_14 AWG) |
| Strip Length | 7 mm |
| Terminal Torque | 0.5_0.6 Nm |
| Rated Current | 2 A per channel |
| Rated Voltage | 60 V DC / 30 V AC |
| Insulation Material | Polyamide |
| Mounting | Snap-on to ET 200L I/O modules |
| Dimensions | 40 mm x 125 mm x 117 mm (W x H x D) approximate |
| Weight | 0.21 kg |
| Operating Temperature Range | -25°C to +70°C |
| Protection Rating | IP20 |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7193-1CL00-0XA0 |
| Description | SIMATIC DP Terminal Block TB32L |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7193-1CL00-0XA0 |
| Product Name | TB32L Terminal Block for ET 200L |
| Application | Field wiring termination for distributed I/O systems in industrial automation and process control |
| Compatibility | Designed for Siemens SIMATIC ET 200L distributed I/O systems; supports up to 32 channels for digital or analog signals |
| Function | Provides screw-type terminal connections for reliable signal distribution and field wiring in harsh industrial environments |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Screw-type terminal block (TB32L) |
| Channels | 32 channels |
| Terminal Type | Screw terminals |
| Wire Gauge | 0.5_2.5 mm² (20_14 AWG) |
| Strip Length | 7 mm |
| Terminal Torque | 0.5_0.6 Nm |
| Rated Current | 2 A per channel |
| Rated Voltage | 60 V DC / 30 V AC |
| Insulation Material | Polyamide |
| Mounting | Snap-on to ET 200L I/O modules |
| Dimensions | 40 mm x 125 mm x 117 mm (W x H x D) approximate |
| Weight | 0.21 kg |
| Operating Temperature Range | -25°C to +70°C |
| Protection Rating | IP20 |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
