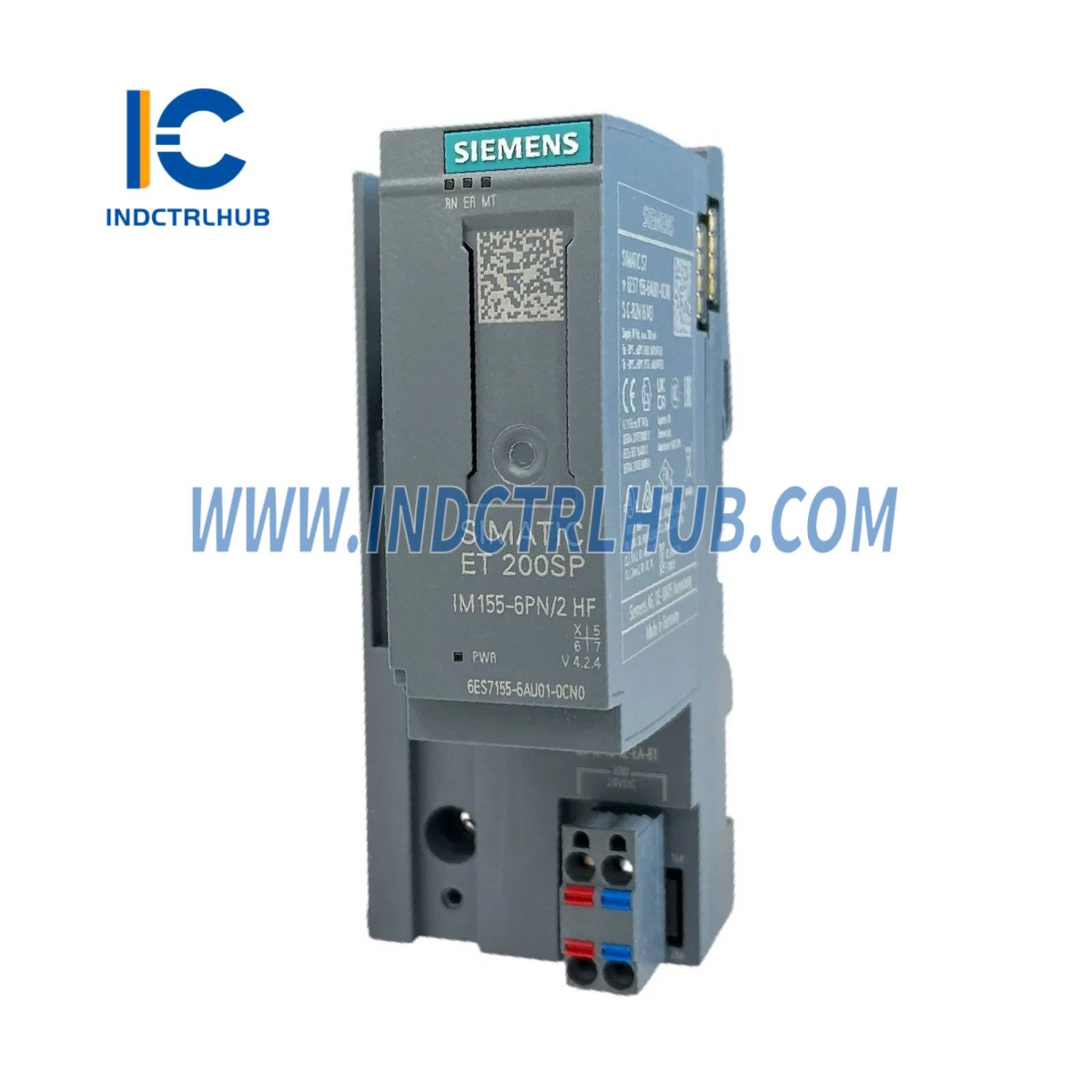

زیمنس 6ES7155-6AU01-0CN0
زیمنس 6ES7155-6AU01-0CN0
Manufacturer: Siemens
Product No.: 6ES7155-6AU01-0CN0
Condition:1000 در انبار
Product Type: SIMATIC ET 200SP IM 155-6PN/2 HF Interface Module
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- پشتیبانی 24/7
- بازگشت 30 روزه
- حمل و نقل سریع
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7155-6AU01-0CN0 |
| Product Name | SIMATIC ET 200SP IM 155-6PN/2 HF Interface Module |
| Application | Distributed I/O interface for industrial automation and process control systems, enabling high-speed PROFINET communication in harsh environments |
| Compatibility | SIMATIC ET 200SP I/O system; supports S7-1200/1500, S7-300/400, and third-party PLCs via PROFINET IO |
| Function | Provides PROFINET IO device interface with integrated 2-port switch, supporting up to 64 I/O modules for scalable field I/O expansion |
Functional Specifications
| Parameter | Details |
|---|---|
| Interface Type | 2-port PROFINET IO (RJ45, 10/100 Mbps, full-duplex) |
| PROFINET Features | IO-Device, Shared Device, IRT (Isochronous Real-Time), MRP (Media Redundancy Protocol), PROFIenergy, I&M 0-4, FSU (Firmware and Software Update), S2 redundancy |
| Max I/O Modules | 64 periphery modules + 16 ET 200AL modules |
| Data Exchange | 256 bytes input + 256 bytes output per station |
| Baud Rate | 9.6 kBaud to 12 MBaud (auto-detected) |
| Power Supply | 19.2-28.8 V DC (from backplane) |
| Operating Temperature | -30°C to +60°C (horizontal mount); -30°C to +50°C (vertical mount) |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Dimensions | 50 mm W x 117 mm H x 74 mm D |
| Weight | 0.13 kg |
| Certifications | CE, UL, cUL, CSA, ATEX Zone 2, IECEx, FM Class I Div 2 |
| Standards Compliance | IEC 61131-2, EN 61000-6-2/4 (EMC), PROFINET Conformance Class B |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 6ES7155-6AU01-0CN0 (IM 155-6PN/2 HF, 2-port PROFINET, firmware V4.2) |
| Available Options | Variants for PROFIBUS (e.g., 6ES7155-6BA00-0CN0); refurbished or new |
| Customization | Extended temperature range or hazardous area certifications available upon request |
