GE IC200BEM103

GE IC200BEM103

  • Manufacturer: General Electric

  • Product No.: IC200BEM103

  • Condition:1000 در انبار

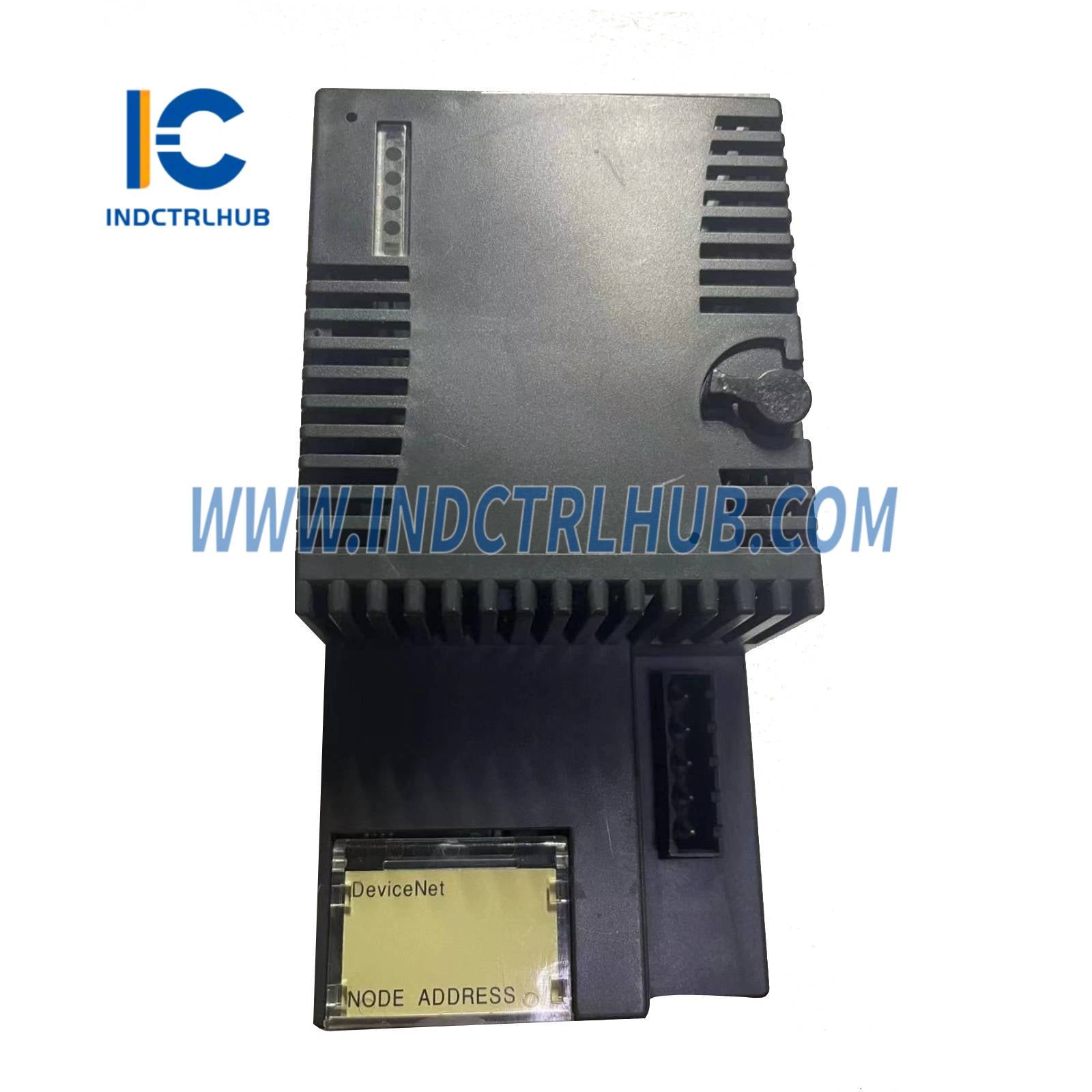

  • Product Type: VersaMax DeviceNet Network Interface Unit (NIU)

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • پشتیبانی 24/7
  • بازگشت 30 روزه
  • حمل و نقل سریع

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number IC200BEM103
Description VersaMax DeviceNet Network Interface Unit (NIU)

Product Overview



Parameter Details
Part Number IC200BEM103
Product Name IC200BEM103 VersaMax DeviceNet Network Interface Unit
Application Enables a VersaMax I/O rack to operate as a DeviceNet slave in distributed control systems, supporting up to 32 I/O modules (512 digital or 128 analog points)
Compatibility GE VersaMax I/O system; mounts as the leftmost module on any VersaMax carrier (IC200ACCxxx); supports DeviceNet master scanners (Allen-Bradley, Omron, etc.)
Function Provides DeviceNet Group 2 Slave communication with polled, strobed, cyclic, and change-of-state (COS) messaging; includes EDS file and configuration via RSNetWorx/DeviceNet tools

Functional Specifications



Parameter Details
Network Protocol DeviceNet (ODVA compliant)
Node Role Group 2 Slave only
Baud Rates 125 kbps, 250 kbps, 500 kbps (auto-detect or switch-selectable)
Max I/O Data 512 bytes total (256 in + 256 out)
Max Nodes per Network 64
Connector 5-pin pluggable terminal block (open style)
Cable Type Thick or thin trunkline/drop line (per DeviceNet spec)
Network Power 24 V DC nominal (11_25 V), supplied externally
Node Address (MAC ID) Rotary switches: 00_63
EDS File IC200BEM103.EDS (included with PME or downloadable)
Messaging Types Polled, Strobe, Cyclic, Change-of-State (COS), Explicit
I/O Assembly Instances Predefined: 1 (basic), 2 (extended), custom mapping via PME
Diagnostics Network status, module status, I/O fault table, watchdog timeout, duplicate MAC ID detection
LED Indicators - M/S (Module Status): Green/Red - N/S (Network Status): Green/Red - OK (Power): Green
Configuration - RSNetWorx for DeviceNet (EDS-based) - Proficy Machine Edition (PME) for I/O mapping - Handheld configurator support
Firmware Field-upgradable via DeviceNet or RS-232 front port
Front Port RS-232 9-pin D-sub (for firmware update and diagnostics)
Isolation 1500 V RMS network-to-backplane
Power Supply (Backplane) +5 V DC @ 300 mA
Power Consumption 1.5 W maximum
Network Power Consumption 80 mA @ 24 V DC
Operating Temperature Range 0°C to +60°C
Storage Temperature Range -40°C to +85°C
Humidity 5% to 95% non-condensing
Vibration IEC 60068-2-6 (5g, 10_150 Hz)
Shock IEC 60068-2-27 (30g, 11 ms)
Mounting Snaps into leftmost position of VersaMax carrier base
Dimensions 4.33" x 2.60" x 1.77" (110 mm x 66 mm x 45 mm)
Weight 0.55 lb (0.25 kg)
Enclosure Rating IP20
Key Features Full DeviceNet slave, auto-baud, COS/polling, 512-byte I/O, EDS, firmware upgradeable
Standards Compliance IEC 61131-2, ODVA DeviceNet Conformance Tested, CE, UL, CSA, Class I Division 2, ATEX Zone 2, RoHS compliant
مشاهده جزئیات کامل

Product Description

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number IC200BEM103
Description VersaMax DeviceNet Network Interface Unit (NIU)

Product Overview



Parameter Details
Part Number IC200BEM103
Product Name IC200BEM103 VersaMax DeviceNet Network Interface Unit
Application Enables a VersaMax I/O rack to operate as a DeviceNet slave in distributed control systems, supporting up to 32 I/O modules (512 digital or 128 analog points)
Compatibility GE VersaMax I/O system; mounts as the leftmost module on any VersaMax carrier (IC200ACCxxx); supports DeviceNet master scanners (Allen-Bradley, Omron, etc.)
Function Provides DeviceNet Group 2 Slave communication with polled, strobed, cyclic, and change-of-state (COS) messaging; includes EDS file and configuration via RSNetWorx/DeviceNet tools

Functional Specifications



Parameter Details
Network Protocol DeviceNet (ODVA compliant)
Node Role Group 2 Slave only
Baud Rates 125 kbps, 250 kbps, 500 kbps (auto-detect or switch-selectable)
Max I/O Data 512 bytes total (256 in + 256 out)
Max Nodes per Network 64
Connector 5-pin pluggable terminal block (open style)
Cable Type Thick or thin trunkline/drop line (per DeviceNet spec)
Network Power 24 V DC nominal (11_25 V), supplied externally
Node Address (MAC ID) Rotary switches: 00_63
EDS File IC200BEM103.EDS (included with PME or downloadable)
Messaging Types Polled, Strobe, Cyclic, Change-of-State (COS), Explicit
I/O Assembly Instances Predefined: 1 (basic), 2 (extended), custom mapping via PME
Diagnostics Network status, module status, I/O fault table, watchdog timeout, duplicate MAC ID detection
LED Indicators - M/S (Module Status): Green/Red - N/S (Network Status): Green/Red - OK (Power): Green
Configuration - RSNetWorx for DeviceNet (EDS-based) - Proficy Machine Edition (PME) for I/O mapping - Handheld configurator support
Firmware Field-upgradable via DeviceNet or RS-232 front port
Front Port RS-232 9-pin D-sub (for firmware update and diagnostics)
Isolation 1500 V RMS network-to-backplane
Power Supply (Backplane) +5 V DC @ 300 mA
Power Consumption 1.5 W maximum
Network Power Consumption 80 mA @ 24 V DC
Operating Temperature Range 0°C to +60°C
Storage Temperature Range -40°C to +85°C
Humidity 5% to 95% non-condensing
Vibration IEC 60068-2-6 (5g, 10_150 Hz)
Shock IEC 60068-2-27 (30g, 11 ms)
Mounting Snaps into leftmost position of VersaMax carrier base
Dimensions 4.33" x 2.60" x 1.77" (110 mm x 66 mm x 45 mm)
Weight 0.55 lb (0.25 kg)
Enclosure Rating IP20
Key Features Full DeviceNet slave, auto-baud, COS/polling, 512-byte I/O, EDS, firmware upgradeable
Standards Compliance IEC 61131-2, ODVA DeviceNet Conformance Tested, CE, UL, CSA, Class I Division 2, ATEX Zone 2, RoHS compliant
