Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG620-EC |

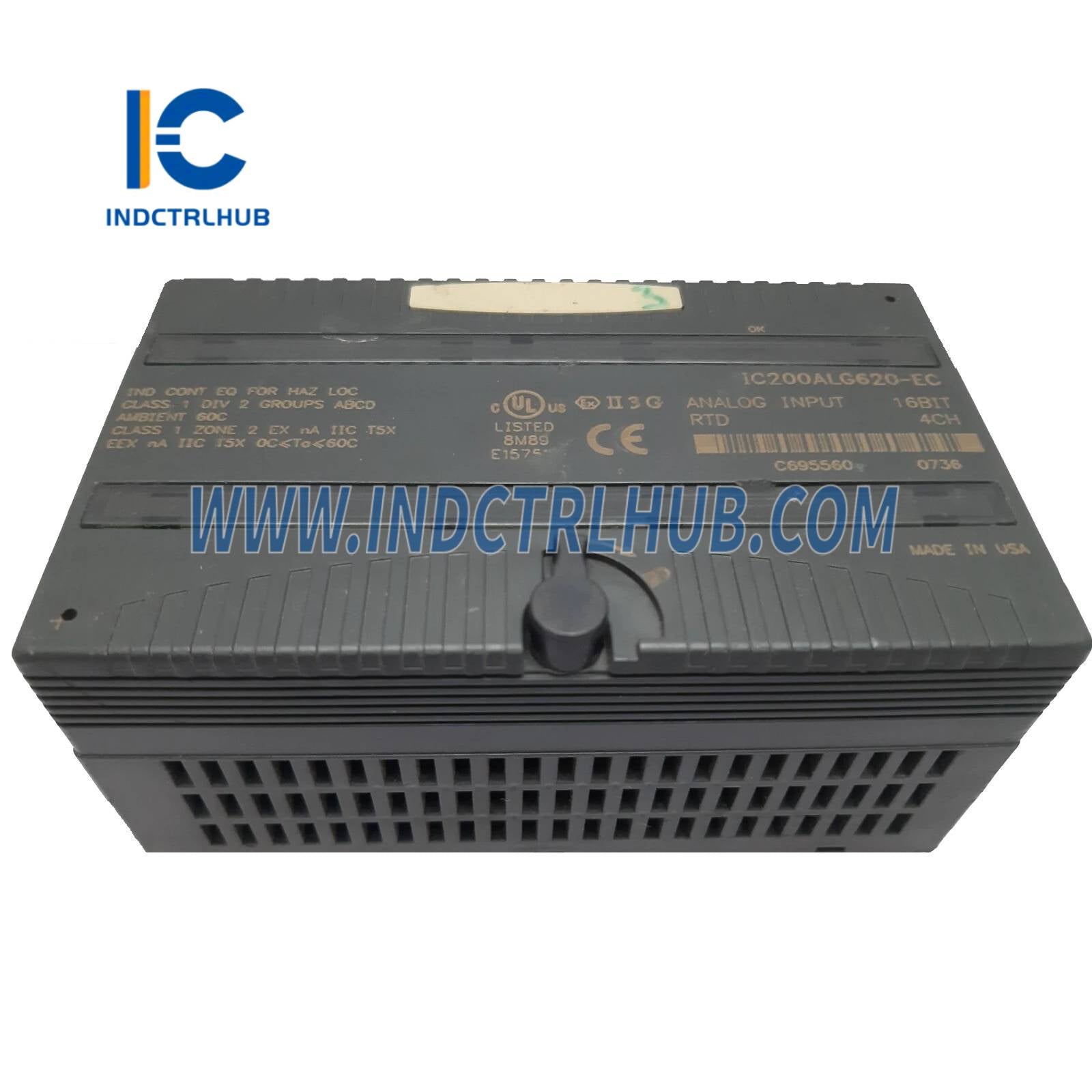

| Product Name | VersaMax Analog Input Module |
| Application | Temperature monitoring and resistance measurement in industrial automation and process control systems, suitable for monitoring process variables like temperature in harsh environments |
| Compatibility | VersaMax PLC system; integrates with VersaMax CPUs, power supplies, and communication modules via backplane |
| Function | Provides 4 isolated RTD/resistance inputs for precise data collection from temperature sensors |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 4 (isolated) |
| Input Type | RTD (Resistance Temperature Detector) or direct resistance inputs |
| Supported RTD Types | Platinum: 25, 100, 1000 Ohm; Copper: 10, 50, 100 Ohm; Nickel: 100, 120 Ohm; Nickel/Iron: 604 Ohm |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Input Range | Resistance: 0-500 Ohm or 0-3000 Ohm (configurable); Temperature: Type-dependent (-200°C to +850°C) |
| Update Rate | 210 ms (full scan) |
| Supply Voltage | Backplane-powered (5 V DC, 125 mA max) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Isolation | 250 V AC continuous, 1500 V AC for 1 minute (user input to logic/frame ground) |
| Dimensions | Standard VersaMax module size (approximate: 90 mm x 50 mm x 75 mm) |
| Weight | Approximately 0.2 kg |
| Certifications | CE marked; UL, cUL, CSA compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG620-EC (4-channel, 16-bit RTD analog input module, Revision EC) |
| Available Options | Variants for different revisions (e.g., IC200ALG620-AA, IC200ALG620-F) or hazardous area certifications |
| Customization | Fieldbus integration or extended temperature range available upon request |
