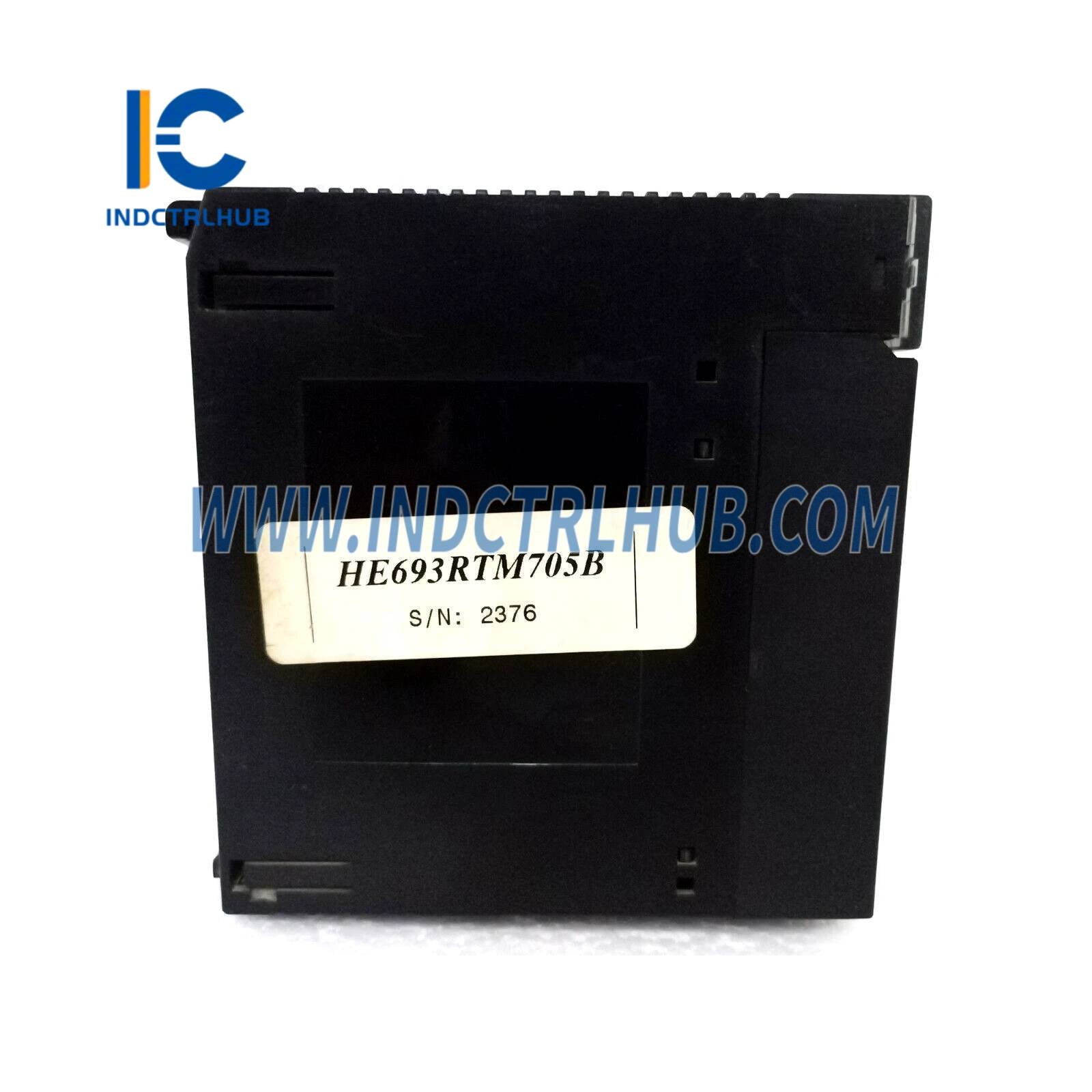

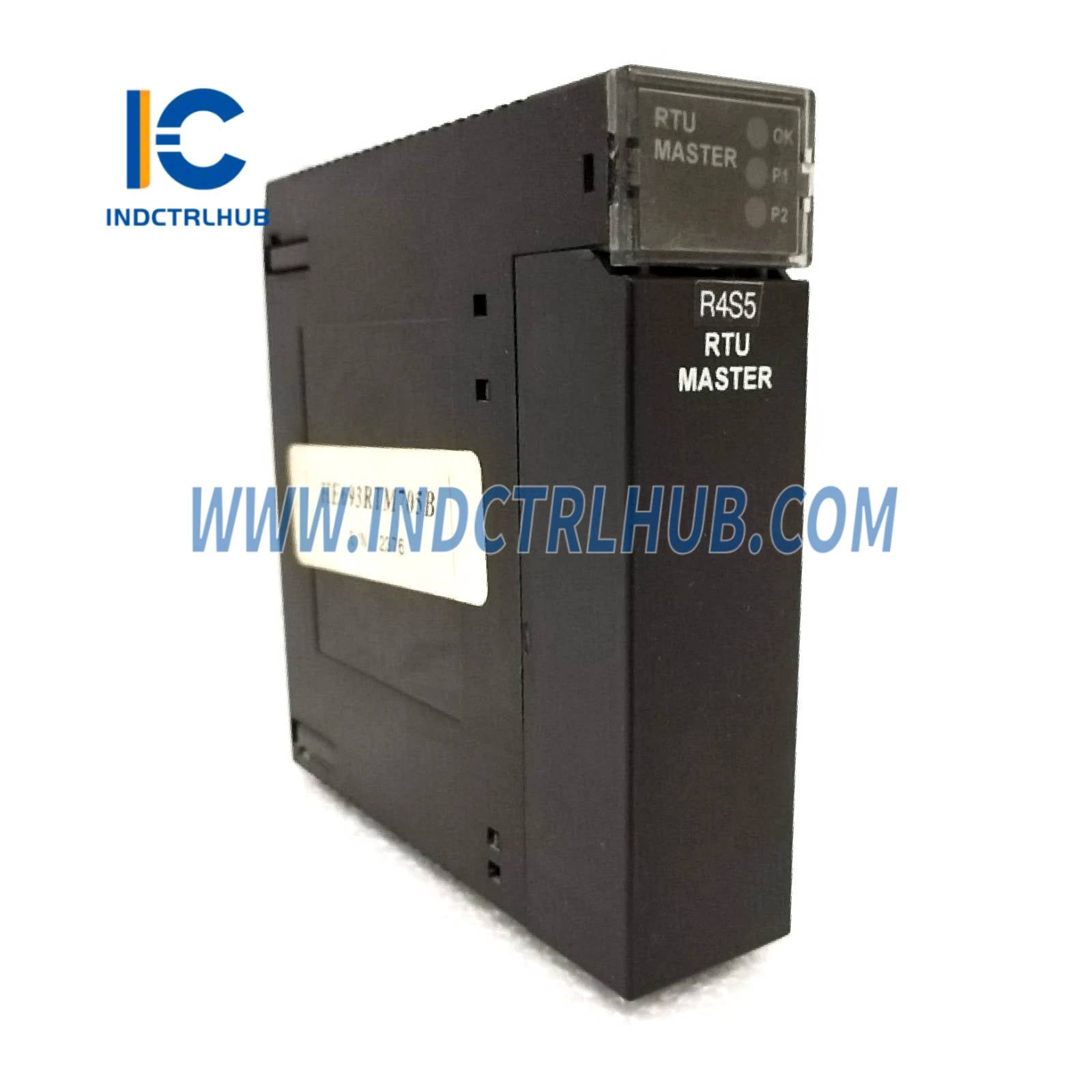

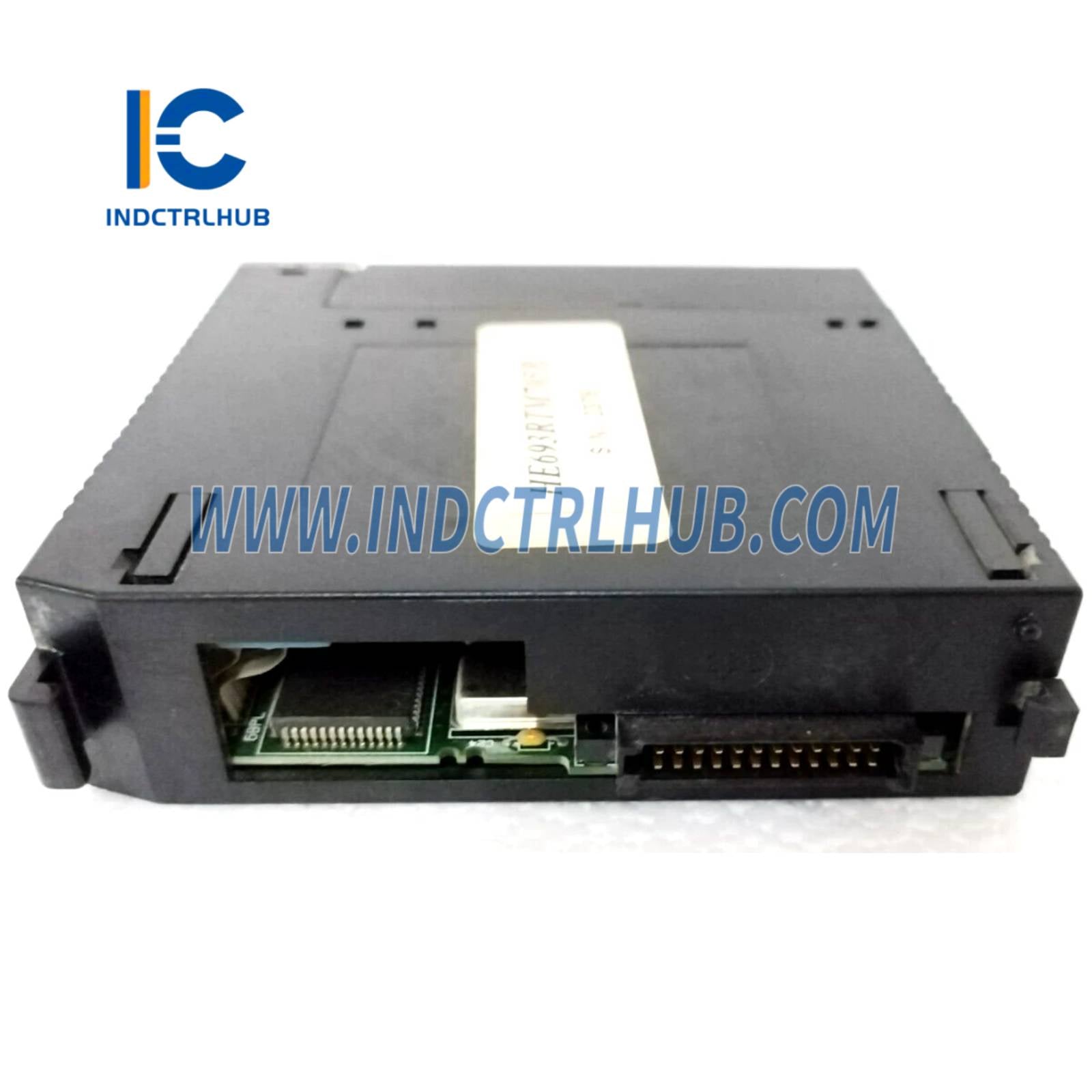

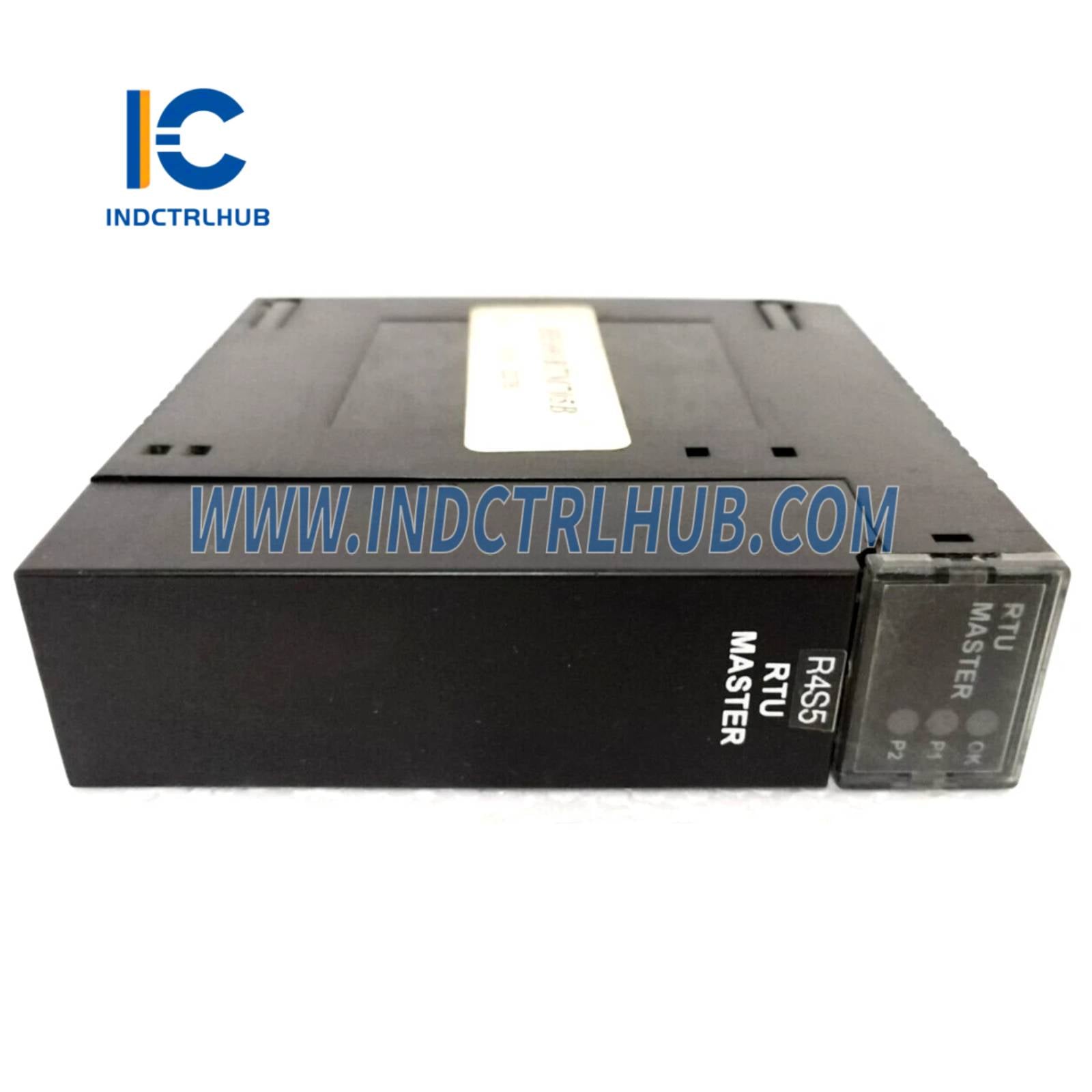

GE HE693RTM705

GE HE693RTM705

  • Manufacturer: General Electric

  • Product No.: HE693RTM705

  • Condition:1000 en existencias

  • Product Type: Master RTC Module with Time-of-Day Clock

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • Soporte 24/7
  • Devoluciones de 30 días
  • Envío rápido

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number HE693RTM705
Description Master RTC Module with Time-of-Day Clock

Product Overview



Parameter Details
Part Number HE693RTM705
Product Name HE693RTM705 Real-Time Clock Master Module
Application Provides synchronized time-of-day clock and timestamping for GE Series 90-30 PLC systems in industrial automation and data logging applications
Compatibility Designed for GE Series 90-30 PLC systems; mounts in the CPU slot (replaces standard CPU base) or as a standalone module; supports Horner Electric and GE Fanuc Series 90-30 CPUs
Function Supplies accurate time/date to the PLC system; supports network time synchronization via SNTP; enables event timestamping and scheduled operations

Functional Specifications



Parameter Details
Type Real-Time Clock (RTC) master module with battery backup
Timekeeping Accuracy ±2 seconds per day (quartz crystal); ±1 ppm with SNTP synchronization
Clock Functions Year, month, day, hour, minute, second, millisecond; leap year compensation
Battery Backup Lithium coin cell (CR2477); 5-year typical life at 25°C
Synchronization SNTP client (Simple Network Time Protocol) over Ethernet; supports primary/backup servers
Network Interface 10/100 Mbps Ethernet port (RJ-45); supports DHCP or static IP
Timestamp Resolution 1 ms for PLC events and I/O
Event Logging Supports timestamped alarm and event logs in PLC memory
Configuration Via PLC ladder logic, Hand-Held Programmer (HHP), or web browser interface
LED Indicators Power, Run, Ethernet Link/Activity, Clock Sync, Battery Status
Power Supply +5 V DC from PLC backplane
Power Consumption 300 mA @ +5 V
Operating Temperature Range 0°C to +60°C
Storage Temperature Range -40°C to +85°C
Mounting Series 90-30 CPU baseplate (slot 1) or expansion rack
Dimensions 5.59" x 1.26" x 4.74" (142 mm x 32 mm x 120 mm) approximate
Weight 0.8 lb (0.36 kg)
Diagnostics Battery low, clock fault, sync loss, Ethernet link down
Standards Compliance IEC 61131-2, CE, UL, CSA, Class I Division 2, FCC Part 15
