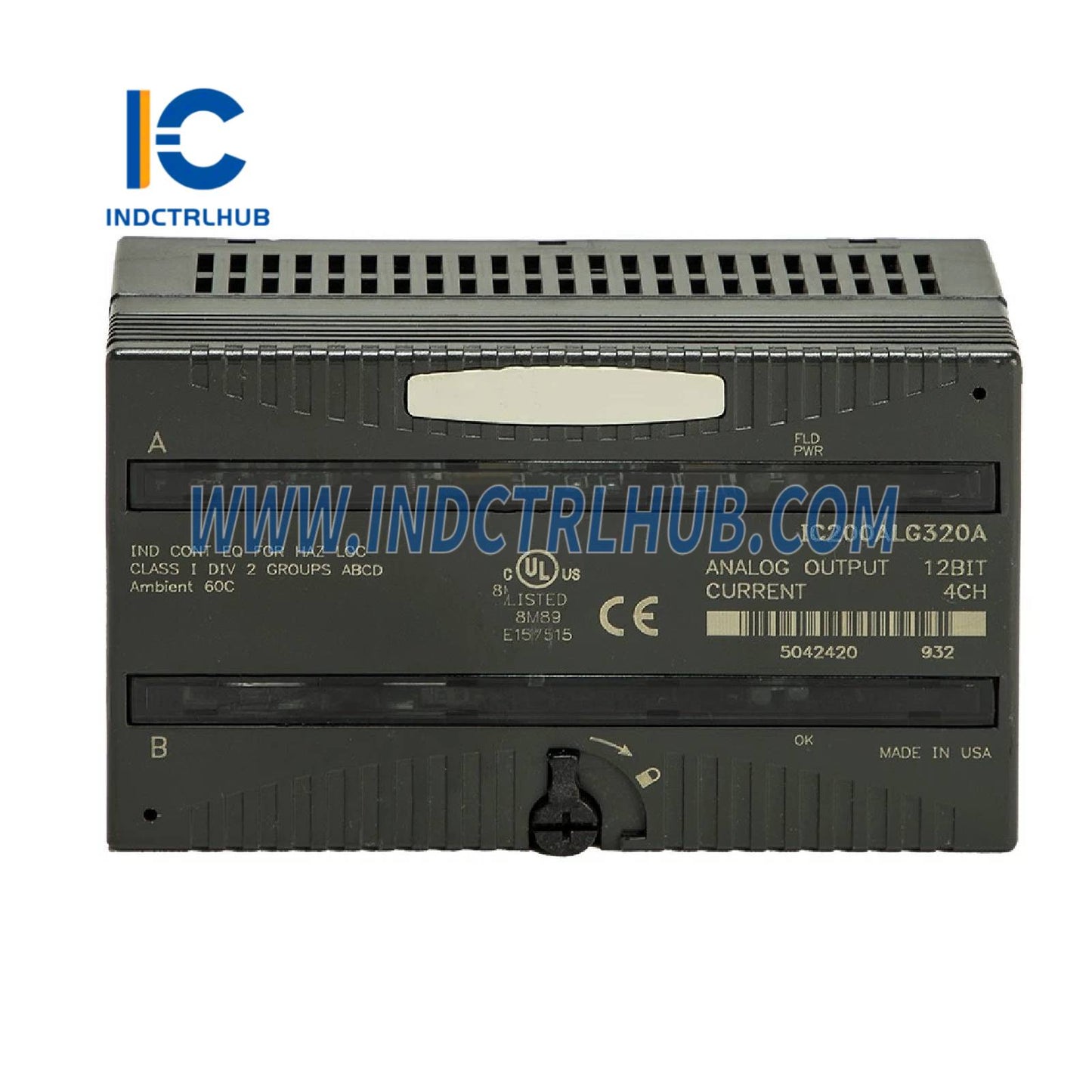

GE IC200ALG320A
GE IC200ALG320A
Manufacturer: General Electric
Product No.: IC200ALG320A
Condition:1000 auf Lager
Product Type: Analog Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7-Support
- 30-tägige Rückgabe
- Schneller Versand
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG320A |
| Description | Analog Output Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG320A |
| Product Name | IC200ALG320 VersaMax Analog Output Module |
| Application | Analog signal output for industrial automation and process control in PLC systems |
| Compatibility | Integrates with GE VersaMax PLC systems, mounts on VersaMax carrier bases (IC200ACCxxx) |
| Function | Provides 4-channel analog current output for controlling actuators, valves, and other field devices |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 4 single-ended channels |
| Output Type | Current: 4-20 mA (sourcing) |
| Resolution | 12-bit (4 µA per step) |
| Accuracy | ±0.1% of full scale |
| Update Rate | 8 ms for all channels |
| Load Resistance | Up to 750 Ω maximum |
| Isolation | 1500 V AC (field to logic) |
| External Power Supply | 24 V DC nominal (19.2-28.8 V DC), 100 mA minimum |
| Power Consumption | 15 mA at 5 V DC (backplane) |
| Operating Temperature Range | 0 to 60°C |
| Dimensions | 110 mm x 66 mm x 45 mm (W x H x D) approximate |
| Weight | 0.2 kg |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
