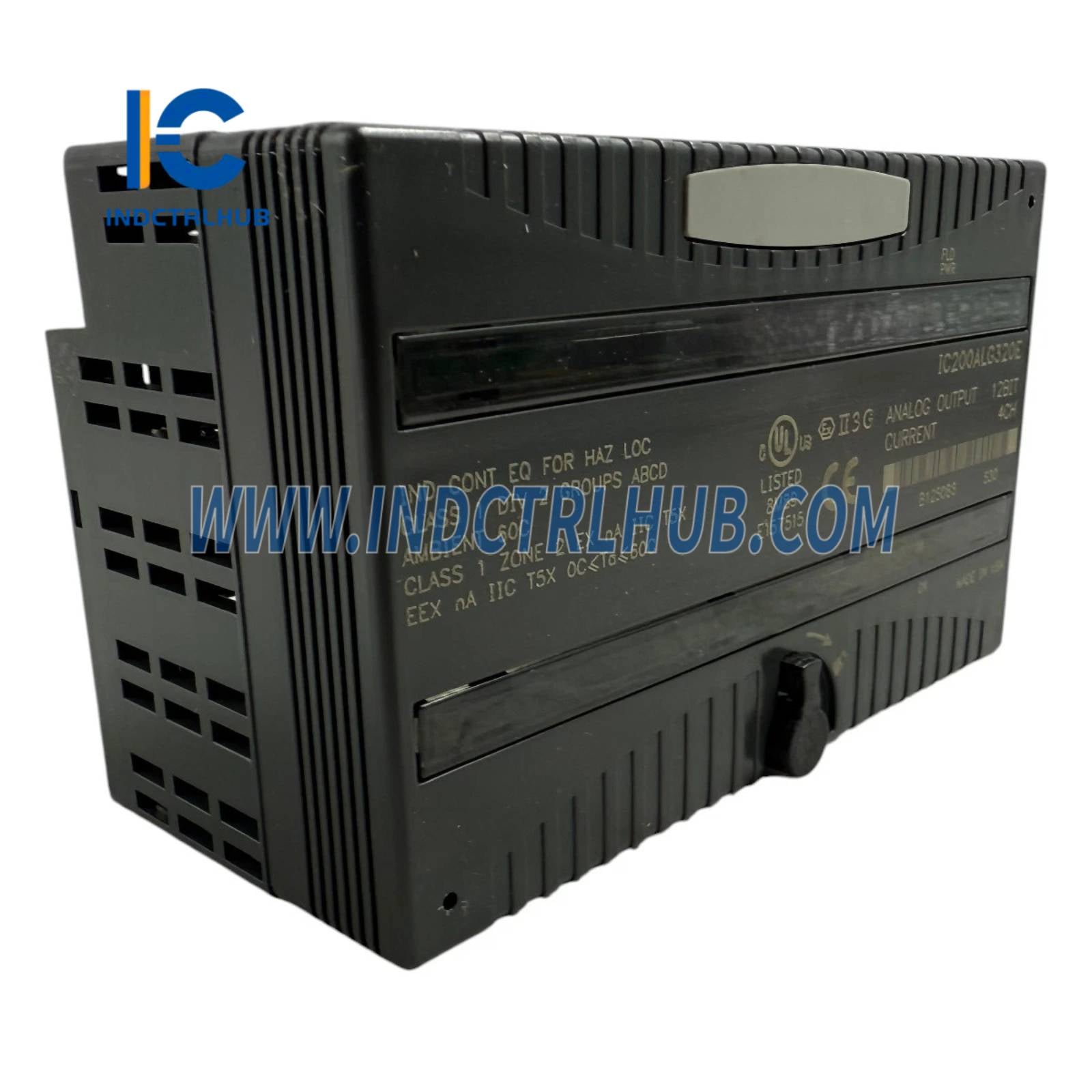

GE IC200ALG320E
GE IC200ALG320E
Manufacturer: General Electric
Product No.: IC200ALG320E
Condition:1000 в наличност
Product Type: 4-Channel Analog Current Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Поддръжка 24/7
- 30-дневни връщания
- Бърза доставка
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG320E |
| Description | 4-Channel Analog Current Output Module (4_20 mA, High-Performance, Revision E) |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG320E |
| Product Name | IC200ALG320 VersaMax 4-Channel Analog Current Output Module |
| Application | Precision control of 4_20 mA loops in industrial automation, process control, valve positioning, and SCADA systems |
| Compatibility | GE VersaMax I/O system; mounts on any VersaMax carrier (IC200ACCxxx); supports CPU/NIU via backplane; compatible with PACSystems RX3i, RSTi-EP, and VersaMax Micro/Nano |
| Function | Generates four independent 4_20 mA current outputs with 16-bit resolution, HART 7 pass-through, fast update, and advanced diagnostics (Revision E) |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 4 single-ended, sourcing current outputs |
| Output Range | 4_20 mA (default); 0_20 mA (configurable); ±10% overrange |
| Resolution | 16-bit (0.61 µA per LSB) _ upgraded from 12-bit in prior revisions |
| Accuracy | ±0.05% of full scale at 25°C; ±0.1% over full temperature range |
| Update Rate | 5 ms for all 4 channels (200 Hz) |
| Load Capability | 0_850 Ω @ 24 V DC; loop voltage compliance up to 28 V |
| Loop Power | External 24 V DC (19.2_28.8 V); HART 7 fully compliant |
| HART Pass-Through | Yes _ bidirectional HART 7 (valve positioner config, diagnostics, multivariable output) |
| Open Loop Detection | Yes _ detects load < 50 Ω or > 1 kΩ; configurable alarm |
| Short Circuit Protection | Yes _ electronic current limit at 25 mA per channel |
| Isolation | 1500 V RMS field-to-backplane; 250 V RMS channel-to-channel |
| Settling Time | < 2 ms to 0.1% of final value |
| Slew Rate | Configurable 0.1_100 mA/ms |
| Scaling & Linearization | User-defined engineering units, 32-point custom table per channel, clamp limits |
| Diagnostics | Open loop, short circuit, overrange, HART device status, loop voltage monitoring, module fault, self-test |
| Power Supply | +5 V DC @ 160 mA, +3.3 V DC @ 100 mA (backplane) |
| Power Consumption | 1.0 W maximum |
| External Power | 24 V DC @ 120 mA (isolated loop supply) |
| Communication Ports | Dual Ethernet 10/100 Mbps (RJ45, switched) _ for firmware, config, HART, and OPC UA |
| LED Indicators | OK (green), Fault (red), 4x Active (green), HART Comm (yellow, blinking) |
| Configuration | Proficy Machine Edition (PME) 9.5+, web server, USB-C front port, OPC UA server |
| Firmware | Field-upgradable via Ethernet, USB-C, or PME |
| Operating Temperature Range | -40°C to +70°C (extended) |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Vibration | IEC 60068-2-6 (10g, 10_500 Hz) |
| Shock | IEC 60068-2-27 (50g, 11 ms) |
| Mounting | Snaps onto VersaMax carrier base (IC200ACCxxx) |
| Dimensions | 4.33" x 2.60" x 1.77" (110 mm x 66 mm x 45 mm) |
| Weight | 0.46 lb (0.21 kg) |
| Enclosure Rating | IP20 |
| Revision E Enhancements | 16-bit resolution, 5 ms update, full HART 7, dual Ethernet, USB-C, extended temp, web config, enhanced EMC |
| Standards Compliance | IEC 61131-2, CE, UL, CSA, Class I Div 2, ATEX/IECEx Zone 2, HART 7 Registered, RoHS 3, IEC 61000-6-2/4 |
