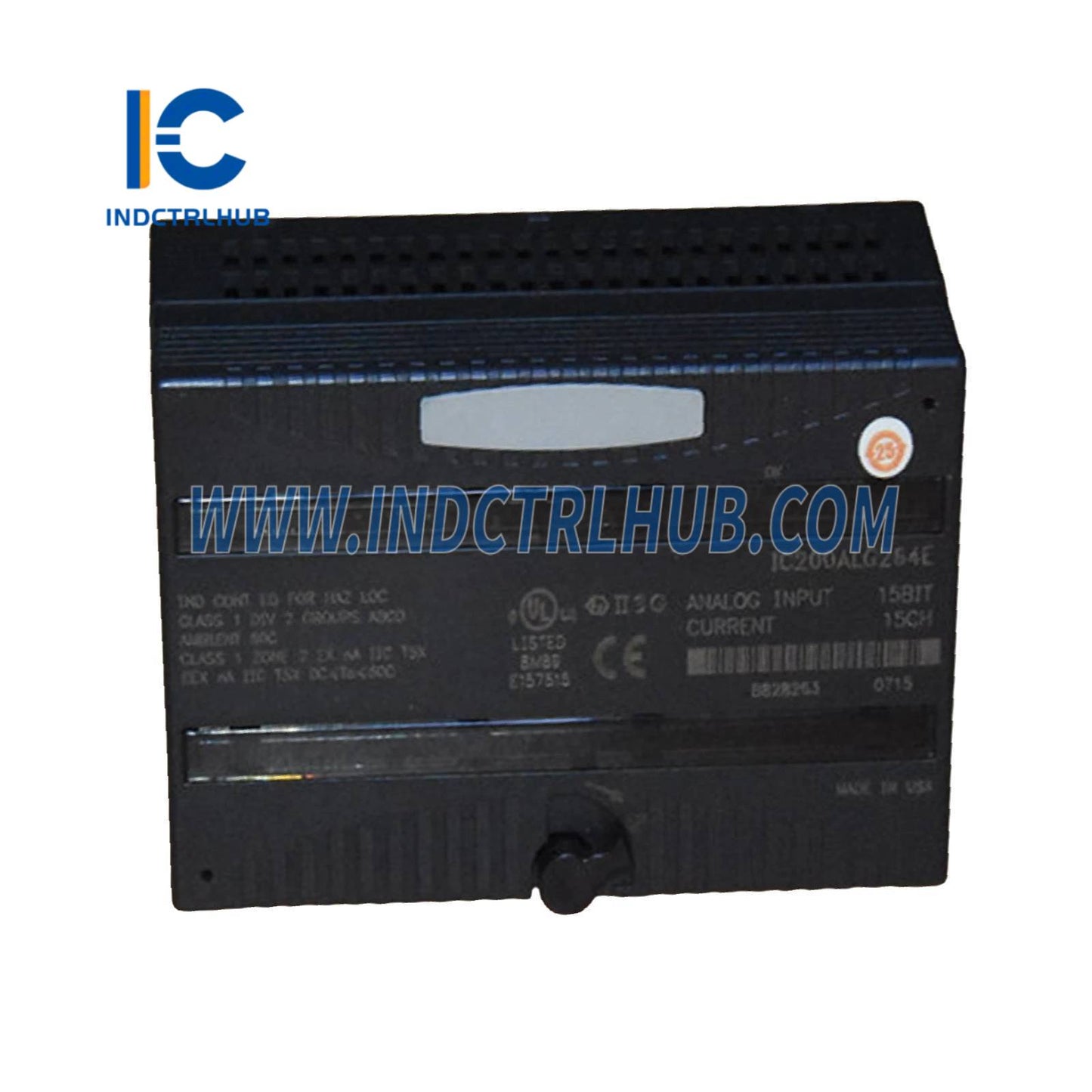

GE IC200ALG264J
GE IC200ALG264J
Manufacturer: General Electric
Product No.: IC200ALG264J
Condition:1000 в наличност
Product Type: 15-Channel Analog Current Input Module (4_20 mA)
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Поддръжка 24/7
- 30-дневни връщания
- Бърза доставка
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG264J |
| Description | 15-Channel Analog Current Input Module (4_20 mA) |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG264J |
| Product Name | IC200ALG264 VersaMax Analog Input Module |
| Application | High-density analog signal acquisition in industrial automation, process control, and SCADA systems |
| Compatibility | GE VersaMax I/O system; mounts on any VersaMax carrier (IC200ACCxxx); supports CPU/NIU via backplane |
| Function | Converts 15 single-ended analog inputs (voltage or current) to 15-bit digital values; supports scaling, linearization, and diagnostics |
Functional Specifications
| Parameter | Details |
|---|---|
| Input Channels | 15 single-ended, one group |
| Input Types | Current: 4_20 mA, 0_20 mA (jumper selectable) |
| Resolution | 15-bit |
| Accuracy | ±0.3% of full scale at 25°C |
| Update Rate | 7.5 ms for all channels |
| Input Impedance | 250 Ω (current mode) |
| Isolation | 350 V AC continuous, 1500 V AC for 1 minute (field to logic) |
| Common Mode Rejection | >80 dB @ 50/60 Hz |
| Normal Mode Rejection | 90 dB minimum at 50/60 Hz |
| External Power Supply | 19.2_28.8 V DC, 100 mA minimum (for current mode) |
| Power Consumption | 100 mA at 5 V DC (backplane) |
| Operating Temperature Range | 0 to 60°C |
| Dimensions | 4.3" x 1.96" x 2.63" (109 mm x 50 mm x 67 mm) approximate |
| Weight | 0.2 kg |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
