GE IC200ALG264H
GE IC200ALG264H
Manufacturer: General Electric
Product No.: IC200ALG264H
Condition:1000 в наличност

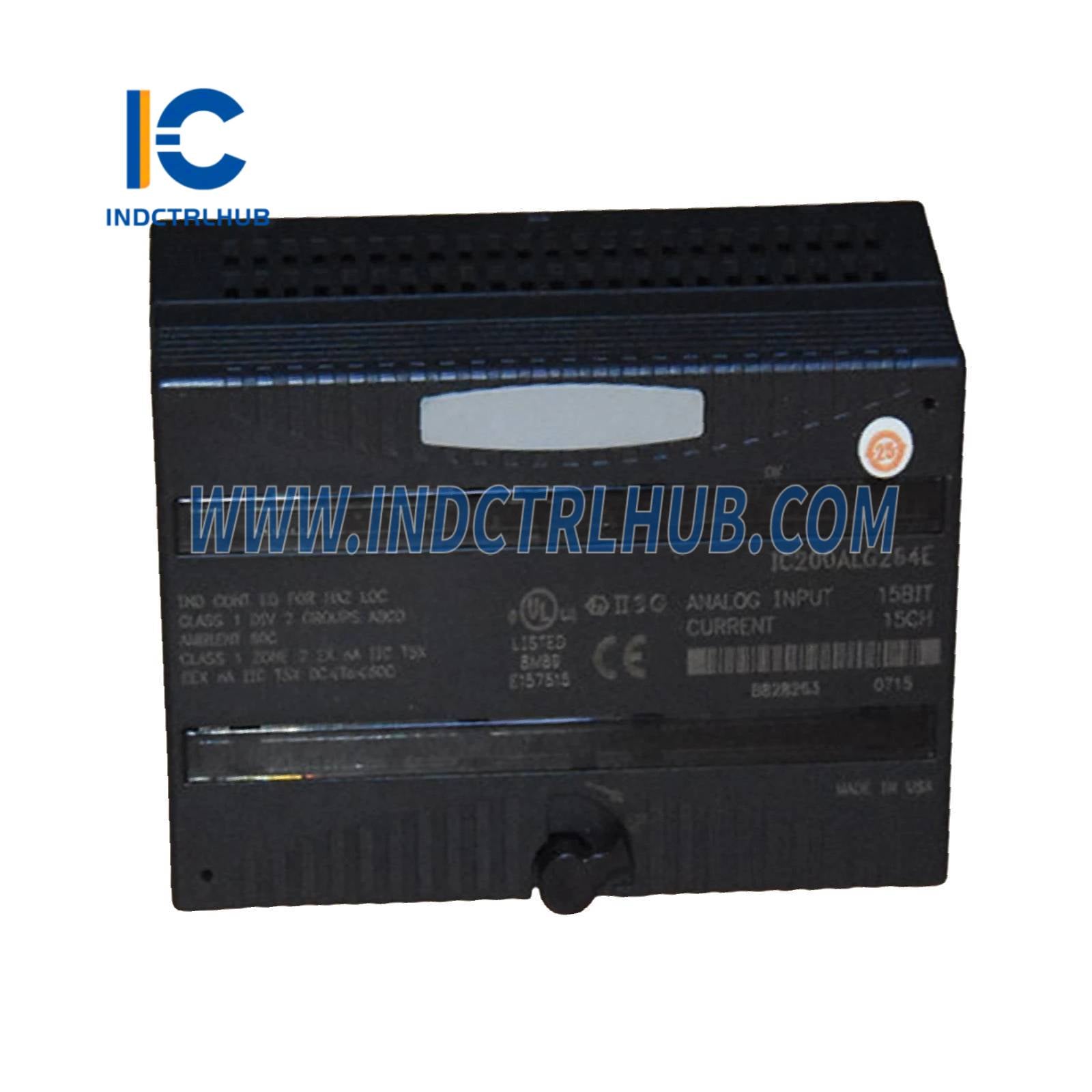

Product Type: VersaMax 15-Channel Analog Current Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Поддръжка 24/7
- 30-дневни връщания
- Бърза доставка
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG264H |
| Product Name | VersaMax 15-Channel Analog Current Input Module _ Revision H |
| Application | High-density 4_20 mA current loop monitoring in industrial automation, process control, and machine systems (e.g., pressure, flow, level, temperature transmitters) |
| Compatibility | GE VersaMax PLC (CPU, NIU, I/O carriers); backplane-powered via IC200CHSxxx carrier |
| Function | Provides 15 single-ended 4_20 mA inputs with over-range detection, open-wire diagnostics, high-resolution conversion, and fast scan rate |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 15 (single-ended, common ground) |
| Input Type | 4_20 mA (current loop, 2-wire or 4-wire transmitters) |
| Input Range | 0_21.5 mA (includes ±10% over-range) |
| Resolution | 15-bit + sign (31,250 counts over 0_20 mA) |
| Accuracy | ±0.1% of full scale at 25°C |
| Update Rate | 7.5 ms per channel (_113 ms full scan for 15 channels) |
| Open-Wire Detection | < 1 mA triggers fault (configurable) |
| Over/Under Range | ±10% detection with alarm flags |
| Isolation | None (non-isolated; all channels share common return) |
| Power Supply | Backplane-powered: 5 V DC @ 170 mA (from VersaMax carrier) |
| Field Power | Loop-powered (24 V DC typical from transmitter supply) |
| Operating Temperature | _40°C to +60°C (extended industrial range) |
| Storage Temperature | _40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions | 90 mm (H) _ 50 mm (W) _ 75 mm (D) (standard VersaMax module) |
| Weight | 0.23 kg (0.51 lbs) |
| Connectors | Removable screw terminal block (30 terminals: 15 inputs + 15 returns + shields) |
| LED Indicators | Module OK (green), Fault (red), 15x Channel Active (green) |
| Diagnostics | Open wire, over-range, under-range, module fault (via %I/%AI status bits) |
| Certifications | CE, UL, cUL, CSA, Class I Div 2 (optional), ATEX Zone 2 |
| Standards Compliance | IEC 61131-2, EN 61000-6-2/4 (EMC), UL 508, CSA C22.2 |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG264H (H = Enhanced diagnostics + faster scan + extended temp) |
| Replaces / Supersedes | IC200ALG264A__ (adds 15-bit + sign, open-wire, _40°C support) |
| Available Options | _ IC200ALG264J: HART-enabled version _ IC200ALG263: Isolated 8-channel _ IC200ALG262: 8-channel isolated |
| Accessories | _ IC200ACC301: Replacement terminal block _ IC200CBL501/502: Pre-wired harness kits |
| Firmware | Configurable via Proficy Machine Edition or VersaPro (no field update required) |
Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG264H |
| Product Name | VersaMax 15-Channel Analog Current Input Module _ Revision H |
| Application | High-density 4_20 mA current loop monitoring in industrial automation, process control, and machine systems (e.g., pressure, flow, level, temperature transmitters) |
| Compatibility | GE VersaMax PLC (CPU, NIU, I/O carriers); backplane-powered via IC200CHSxxx carrier |
| Function | Provides 15 single-ended 4_20 mA inputs with over-range detection, open-wire diagnostics, high-resolution conversion, and fast scan rate |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 15 (single-ended, common ground) |
| Input Type | 4_20 mA (current loop, 2-wire or 4-wire transmitters) |
| Input Range | 0_21.5 mA (includes ±10% over-range) |
| Resolution | 15-bit + sign (31,250 counts over 0_20 mA) |
| Accuracy | ±0.1% of full scale at 25°C |
| Update Rate | 7.5 ms per channel (_113 ms full scan for 15 channels) |
| Open-Wire Detection | < 1 mA triggers fault (configurable) |
| Over/Under Range | ±10% detection with alarm flags |
| Isolation | None (non-isolated; all channels share common return) |
| Power Supply | Backplane-powered: 5 V DC @ 170 mA (from VersaMax carrier) |
| Field Power | Loop-powered (24 V DC typical from transmitter supply) |
| Operating Temperature | _40°C to +60°C (extended industrial range) |
| Storage Temperature | _40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions | 90 mm (H) _ 50 mm (W) _ 75 mm (D) (standard VersaMax module) |
| Weight | 0.23 kg (0.51 lbs) |
| Connectors | Removable screw terminal block (30 terminals: 15 inputs + 15 returns + shields) |
| LED Indicators | Module OK (green), Fault (red), 15x Channel Active (green) |
| Diagnostics | Open wire, over-range, under-range, module fault (via %I/%AI status bits) |
| Certifications | CE, UL, cUL, CSA, Class I Div 2 (optional), ATEX Zone 2 |
| Standards Compliance | IEC 61131-2, EN 61000-6-2/4 (EMC), UL 508, CSA C22.2 |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | IC200ALG264H (H = Enhanced diagnostics + faster scan + extended temp) |
| Replaces / Supersedes | IC200ALG264A__ (adds 15-bit + sign, open-wire, _40°C support) |
| Available Options | _ IC200ALG264J: HART-enabled version _ IC200ALG263: Isolated 8-channel _ IC200ALG262: 8-channel isolated |
| Accessories | _ IC200ACC301: Replacement terminal block _ IC200CBL501/502: Pre-wired harness kits |
| Firmware | Configurable via Proficy Machine Edition or VersaPro (no field update required) |
