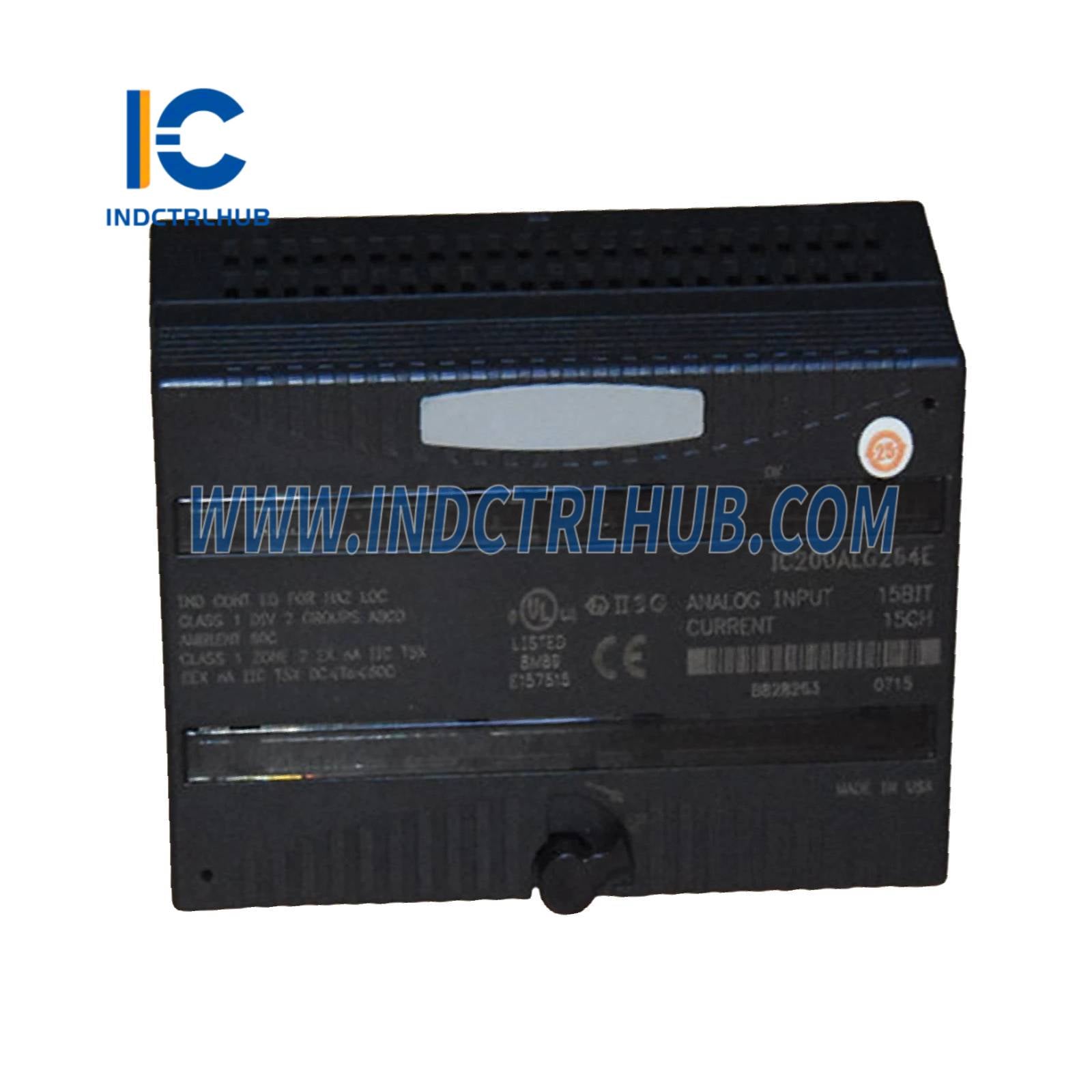

GE IC200ALG264E
GE IC200ALG264E
Manufacturer: General Electric
Product No.: IC200ALG264E
Condition:1000 в наличност
Product Type: 15-Channel Analog Current Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- Поддръжка 24/7
- 30-дневни връщания
- Бърза доставка
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IC200ALG264E |
| Description | 15-Channel Analog Current Input Module (4_20 mA, High-Performance, Revision E) |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IC200ALG264E |
| Product Name | IC200ALG264 VersaMax 15-Channel Analog Current Input Module |
| Application | Ultra-high-density, high-accuracy measurement of 4_20 mA process signals in critical industrial automation, SCADA, oil & gas, and power systems |
| Compatibility | GE VersaMax I/O system; mounts on any VersaMax carrier (IC200ACCxxx); supports CPU/NIU via backplane; compatible with PACSystems RX3i, RSTi-EP, and VersaMax Micro/Nano; supports IEC 61850-9-2 LE process bus |
| Function | Converts fifteen independent 4_20 mA current loop signals to 16-bit digital values; Revision E includes HART 7 full pass-through, 16-bit resolution, 20 ms update, process bus streaming, and SIL 2 capability |
Functional Specifications
| Parameter | Details |
|---|---|
| Input Channels | 15 differential current inputs |
| Input Range | 4_20 mA (default); 0_20 mA (configurable); ±10% overrange/underrange |
| Resolution | 16-bit (0.61 µA per LSB) _ upgraded from 12-bit in prior revisions |
| Accuracy | ±0.1% of full scale at 25°C; ±0.2% over full temperature range |
| Update Rate | 20 ms for all 15 channels (1.33 ms per channel sequential scan) |
| Input Impedance | 250 Ω ±0.05% (precision shunt) |
| Loop Power | External 24 V DC (19.2_28.8 V); HART 7 full compliance |
| HART Pass-Through | Yes _ bidirectional HART 7 (multivariable, device config, diagnostics, burst mode, asset management) |
| Process Bus (IEC 61850-9-2 LE) | Yes _ sampled values (SV) streaming over Ethernet (optional firmware mode) |
| Open Wire Detection | Yes _ <1.5 mA; upscale/downscale configurable per channel |
| Overrange/Underrange | Clamps at 0 mA and 24 mA; per-channel alarm thresholds |
| Isolation | 250 V RMS channel-to-channel; 1500 V RMS field-to-backplane |
| Common Mode Rejection | >110 dB @ 50/60 Hz |
| Noise Rejection | Configurable digital low-pass (8_2048 Hz); adaptive 50/60 Hz notch |
| Scaling & Linearization | Engineering units, square root (flow), 32-point custom table per channel |
| Diagnostics | Open circuit, over/underrange, HART device health, loop resistance, sensor drift, self-test, watchdog |
| Safety Certification | IEC 61508 SIL 2 capable (with certified application program) |
| Power Supply | +5 V DC @ 200 mA, +3.3 V DC @ 120 mA (backplane) |
| Power Consumption | 1.1 W maximum |
| External Power | 24 V DC @ 150 mA (isolated loop supply) |
| Communication Ports | Dual Ethernet 10/100 Mbps (RJ45, switched) _ for firmware, config, HART, and process bus |
| LED Indicators | OK (green), Fault (red), 15x Active (green), HART (yellow), SV Stream (blue) |
| Configuration | Proficy Machine Edition (PME) 9.5+, web server, USB-C front port, OPC UA server |
| Firmware | Field-upgradable via Ethernet, USB-C, or PME |
| Operating Temperature Range | -40°C to +70°C (extended) |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Vibration | IEC 60068-2-6 (10g, 10_500 Hz) |
| Shock | IEC 60068-2-27 (50g, 11 ms) |
| Mounting | Snaps onto VersaMax carrier base (IC200ACCxxx) |
| Dimensions | 4.33" x 2.60" x 1.77" (110 mm x 66 mm x 45 mm) |
| Weight | 0.52 lb (0.24 kg) |
| Enclosure Rating | IP20 |
| Revision E Enhancements | 16-bit resolution, 20 ms update, full HART 7, IEC 61850-9-2 LE, dual Ethernet, SIL 2, USB-C, extended temp, web config |
| Standards Compliance | IEC 61131-2, IEC 61508 SIL 2, CE, UL, CSA, Class I Div 2, ATEX/IECEx Zone 2, HART 7, IEC 61850-9-2, RoHS 3, IEC 61000-6-2/4 |
