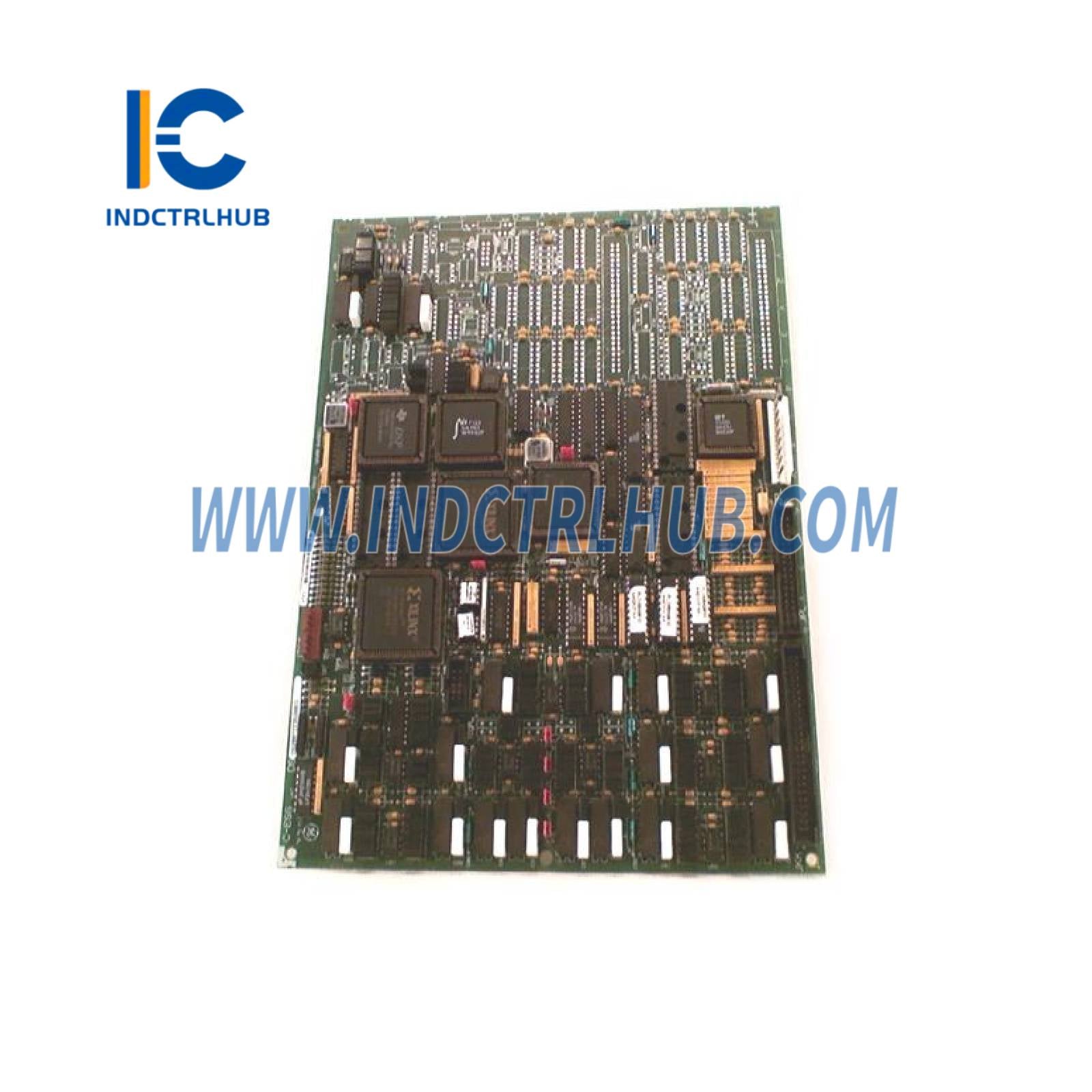

GE DS200TCCBG8B I/O Terminal Board

GE DS200TCCBG8B I/O Terminal Board

  • Manufacturer: General Electric

  • Product No.: DS200TCCBG8B

  • Condition:1000 in stock

  • Product Type: I/O Terminal Board

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number DS200TCCBG8B
Description I/O Terminal Board

Product Overview



Parameter Details
Part Number DS200TCCBG8B
Product Name DS200TCCBG8B Common I/O Terminal Board
Application General-purpose analog and digital I/O termination in turbine control systems for power generation
Compatibility Designed for GE Speedtronic Mark V turbine control systems; interfaces with TCQA/TCQC I/O boards in <R>, , and <T> cores
Function Provides termination for RTDs, thermocouples, 4-20 mA inputs/outputs, and contact inputs; supports signal conditioning and isolation

Functional Specifications



Parameter Details
Type Common analog/digital I/O terminal board with screw terminals
Analog Inputs 21 RTD inputs, 3 thermocouple inputs, 8 configurable 4-20 mA inputs, 2 pulse inputs
Analog Outputs 2 configurable 4-20 mA outputs
Digital Inputs 16 contact inputs (24 V DC or 125 V DC configurable)
Isolation 1500 V AC between field and system side
Signal Conditioning Cold junction compensation for thermocouples, linearization for RTDs
Power Supply 24 V DC nominal (from system backplane)
Power Consumption 12 W maximum
Operating Temperature Range -30°C to +70°C
Mounting Panel mount in control cabinet
Dimensions 10.5" x 8.5" x 1.5" (267 mm x 216 mm x 38 mm) approximate
Weight 2.5 lb (1.13 kg)
Protection Features Surge protection, EMI shielding, fuse protection
Standards Compliance IEC 61131-2, CE, UL, CSA
View full details

Product Description

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number DS200TCCBG8B
Description I/O Terminal Board

Product Overview



Parameter Details
Part Number DS200TCCBG8B
Product Name DS200TCCBG8B Common I/O Terminal Board
Application General-purpose analog and digital I/O termination in turbine control systems for power generation
Compatibility Designed for GE Speedtronic Mark V turbine control systems; interfaces with TCQA/TCQC I/O boards in <R>, , and <T> cores
Function Provides termination for RTDs, thermocouples, 4-20 mA inputs/outputs, and contact inputs; supports signal conditioning and isolation

Functional Specifications



Parameter Details
Type Common analog/digital I/O terminal board with screw terminals
Analog Inputs 21 RTD inputs, 3 thermocouple inputs, 8 configurable 4-20 mA inputs, 2 pulse inputs
Analog Outputs 2 configurable 4-20 mA outputs
Digital Inputs 16 contact inputs (24 V DC or 125 V DC configurable)
Isolation 1500 V AC between field and system side
Signal Conditioning Cold junction compensation for thermocouples, linearization for RTDs
Power Supply 24 V DC nominal (from system backplane)
Power Consumption 12 W maximum
Operating Temperature Range -30°C to +70°C
Mounting Panel mount in control cabinet
Dimensions 10.5" x 8.5" x 1.5" (267 mm x 216 mm x 38 mm) approximate
Weight 2.5 lb (1.13 kg)
Protection Features Surge protection, EMI shielding, fuse protection
Standards Compliance IEC 61131-2, CE, UL, CSA
